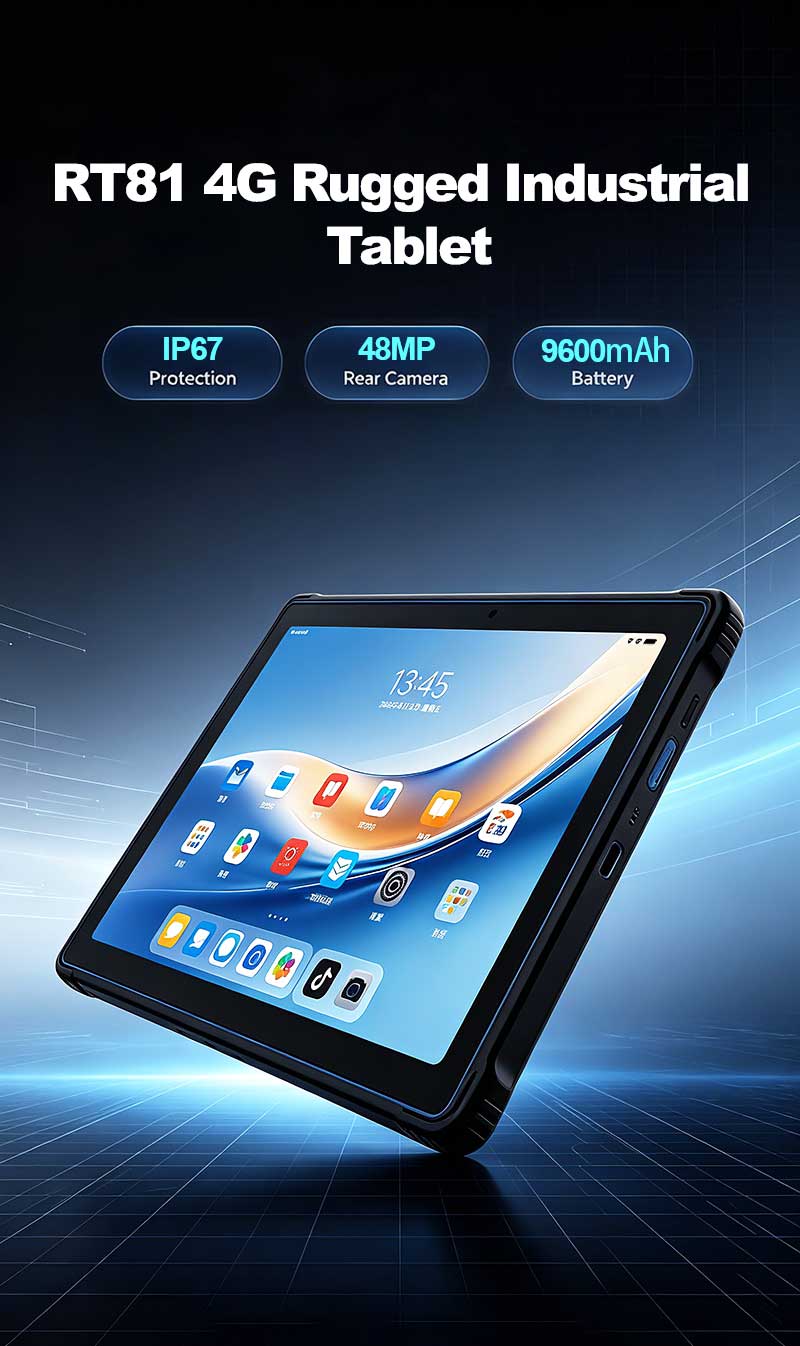

RT81 4G Rugged Tablet | 10.1" FHD 400nit | Qualcomm SM6115 Octa-core | Android 16

Key Specifications At a Glance

Two Key Highlights

The RT81 is a cost-effective 4G rugged tablet designed for enterprises that need durability, long battery life, and flexible data capture without the premium of 5G. Its 10.1-inch FHD display (1200×1920, 400 nits) provides a bright, clear workspace for inventory management, GIS mapping, or field service apps. Powered by the Qualcomm SM6115 octa-core processor (2.0GHz) and Android 16, it handles barcode scanning, real-time data sync, and multitasking effortlessly. The optional independent Beidou RTK module brings centimeter-level positioning, while 4G LTE ensures reliable connectivity across global networks – all within an IP67-sealed chassis that survives drops, dust, and rain.

Performance: Qualcomm SM6115 + Android 16

The Qualcomm SM6115 platform, built on an 11nm process, balances power and efficiency. Its eight Kryo cores (four performance cores, four efficiency cores) handle real-time barcode decoding, background data transmission over 4G, and GNSS processing without lag. Android 16 brings enterprise-friendly features: granular app permissions, work profiles, and long-term security updates. Our firmware stays close to AOSP, so existing MDM solutions (SOTI, VMware Workspace ONE) deploy without modification. Choose between 4+64GB or 8+128GB storage configurations, expandable via TF to 256GB.

4G LTE Connectivity with Global Band Support

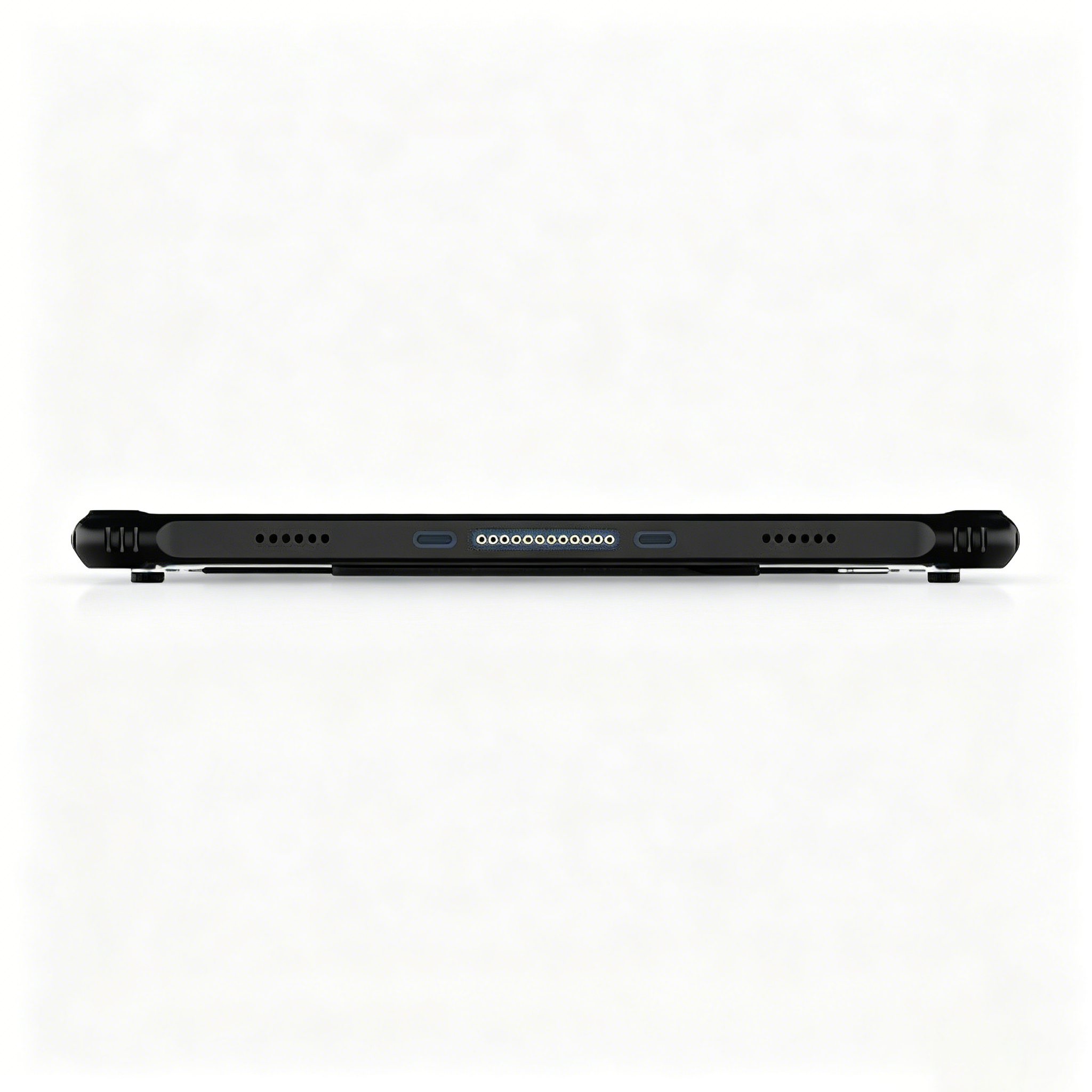

The RT81 is available in two regional variants: CN version optimized for China and India (FDD: B1/B3/B5/B8; TDD: B34/B38/B39/B40/B41), and EAU version covering Europe, the Middle East, Africa, Korea, Thailand, and Australia (additional bands B7/B20/B28). Fallback to 3G WCDMA and 2G GSM ensures connectivity in remote areas. Dual-band Wi-Fi (2.4/5GHz) with 802.11ax (Wi-Fi 6) readiness provides fast roaming in dense warehouse networks. Bluetooth 5.1 connects to wireless printers, headsets, or external scanners. The 12-pin Pogo Pin allows connection to a charging cradle or vehicle dock with external antennas.

Positioning: GPS + Glonass + Galileo + Independent Beidou (RTK)

Standard GNSS includes GPS, Glonass, and Galileo, providing location accuracy of 2–3 meters. For applications demanding extreme accuracy – such as land survey, precision agriculture, or asset mapping – the RT81 offers an optional independent Beidou module with RTK (Real-Time Kinematic). This delivers horizontal accuracy of 2–5cm without relying on external base stations in many regions. The independent module can receive RTK correction data over 4G from network RTK services, making it a powerful tool for utilities, construction, and logistics.

Data Capture: 2D Scanner, NFC, High-Resolution Camera

The optional 2D imager (≥3mil) reads high-density barcodes on electronics, pharmaceuticals, and shipping labels. Dual SCAN buttons (one on the side, plus a dedicated SCAN button on the keypad) make one-handed operation easy. NFC (13.56MHz) supports ISO14443A/B, ISO15693, and M1/CPU tags – ideal for contactless payments, access control, and inventory verification. The 20MP rear camera with autofocus and LED flash captures detailed proof-of-delivery photos and damage records. The front 8MP camera enables video calls for remote troubleshooting.

Rugged Design: IP67, 1.2m Drop, Large Battery, Sunlight-Readable Display

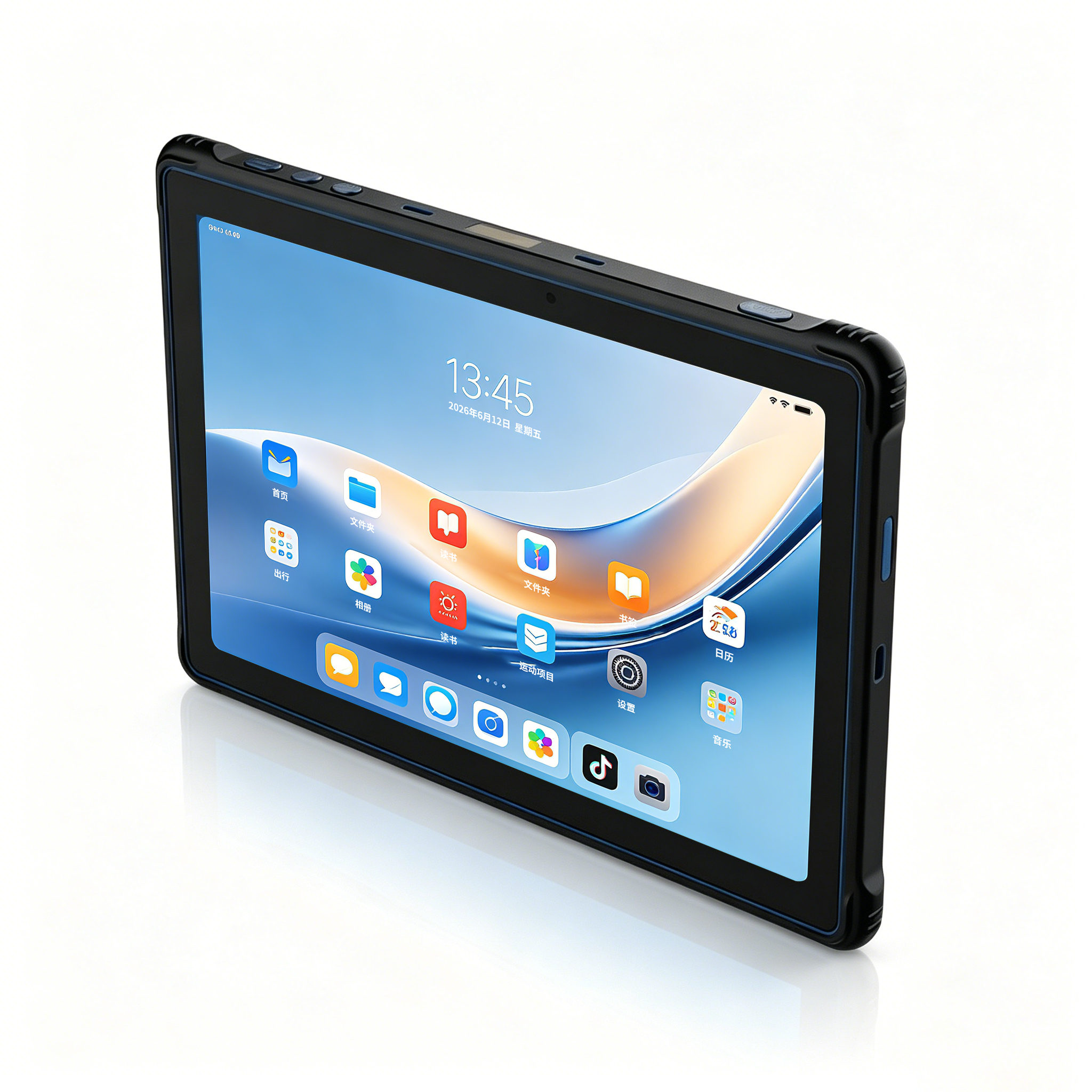

The RT81 is sealed to IP67 standards – dust-tight and waterproof up to 1 meter for 30 minutes. It survives drops from 1.2 meters onto concrete, making it suitable for warehouse floors, construction sites, and outdoor field use. The 10000mAh non-removable battery delivers 12–14 hours of mixed use (scanning, 4G transmission, screen at 50% brightness). Operating temperature from -10°C to 50°C and 95% humidity coverage means it works in cold storage, hot deserts, and tropical environments. The 10.1-inch FHD display offers 400 nits of brightness – readable under direct sunlight – and 10-point G+G capacitive touch works with industrial gloves.

Audio and Communication

Dual 2W stereo speakers provide clear audio for video calls or alerts in noisy environments. Dual microphones with noise reduction ensure crisp voice capture during voice calls or voice-picking commands. The tablet supports standard voice calls via 4G/VoLTE. An Fn key can be customized for quick access to frequently used functions (e.g., toggling the scanner, launching a specific app, or turning on the flashlight).

Typical Deployments

Warehouse & Inventory Management: Use the 2D imager to scan barcodes on pallets and bins. The large 10.1-inch screen displays pick lists and maps clearly. 4G syncs inventory changes in real time to the WMS. Optional RTK Beidou tracks forklift positions with centimeter accuracy.
   Retail Store Operations: Perform cycle counts, check prices, process returns, and manage loyalty cards via NFC. The 20MP camera captures shelf conditions. IP67 protection survives spills and dust.
   Field Service & Inspections: Technicians view schematics on the bright 10.1-inch screen, scan equipment barcodes, take photos of serial numbers, and upload inspection reports over 4G. RTK Beidou logs exact asset locations.
   Logistics & Last-Mile Delivery: Drivers use the tablet for route navigation, scan packages, take proof-of-delivery photos, and communicate via voice – all in a rugged device that handles drops and rain.

   Public Safety & Emergency Response: First responders benefit from reliable 4G and accurate positioning. The bright FHD display shows maps and incident details clearly in direct sunlight, and dual speakers provide clear audio.

Service & Support

★ Sample Evaluation: Request a test unit to verify scanning speed, RTK accuracy, and battery life under your workload.
   ★ OEM Customization: Logo printing, custom Android build, pre-loaded apps, and region-specific 4G band tuning.
   ★ ODM Development: From adding a UHF RFID module to upgrading the battery or display, our engineering team delivers tailor-made solutions.
   ★ Bulk Orders: Standard configurations ship within 7–10 working days. Volume pricing, long-term supply agreements, and accessory bundles (charging cradle, spare batteries, vehicle docks) available.
   ★ Certifications: CE, FCC, RoHS compliant. IP67 verified by third-party labs.

For detailed specifications, volume pricing, or to request a custom configuration (RTK Beidou, 2D scanner, NFC, higher RAM/storage), please Contact Us directly – our engineers provide factory-direct support, SDK documentation, and sample loaner units for qualified projects.

Why 4G Rugged Tablets with RTK Beidou Are the Smart Investment for Field Operations – RT81 Deep Dive

While 5G garners headlines, 4G LTE remains the backbone of industrial connectivity – offering wide coverage, lower device cost, and sufficient bandwidth for most field applications. The RT81 combines mature 4G with an optional independent Beidou RTK module, delivering centimeter-level accuracy at a fraction of the cost of 5G‑based solutions. Here is why this combination is winning in real-world deployments.

1. 4G LTE: Proven Coverage and Lower Total Cost

5G coverage is still expanding, especially in rural and remote industrial zones. 4G LTE, in contrast, is universally available and provides more than enough bandwidth for real‑time inventory updates, voice calls, and RTK correction data (which typically requires less than 100 kbps). The RT81's 4G modem supports carrier aggregation, delivering stable throughput even in congested areas. By choosing 4G over 5G, enterprises save approximately 30–40% on device hardware costs without sacrificing operational performance.

2. Independent Beidou RTK: Centimeter Accuracy Without High‑End GNSS Receivers

Traditional high‑precision GNSS receivers cost thousands of dollars. The RT81's optional independent Beidou module (with RTK) brings sub‑5cm accuracy to a rugged tablet priced for volume deployment. This module is self‑contained – it does not drain the main processor and can operate concurrently with the standard GPS/Glonass/Galileo. For applications like mapping utility assets, verifying construction layouts, or guiding yard vehicles, the RT81 eliminates the need for separate survey‑grade equipment.

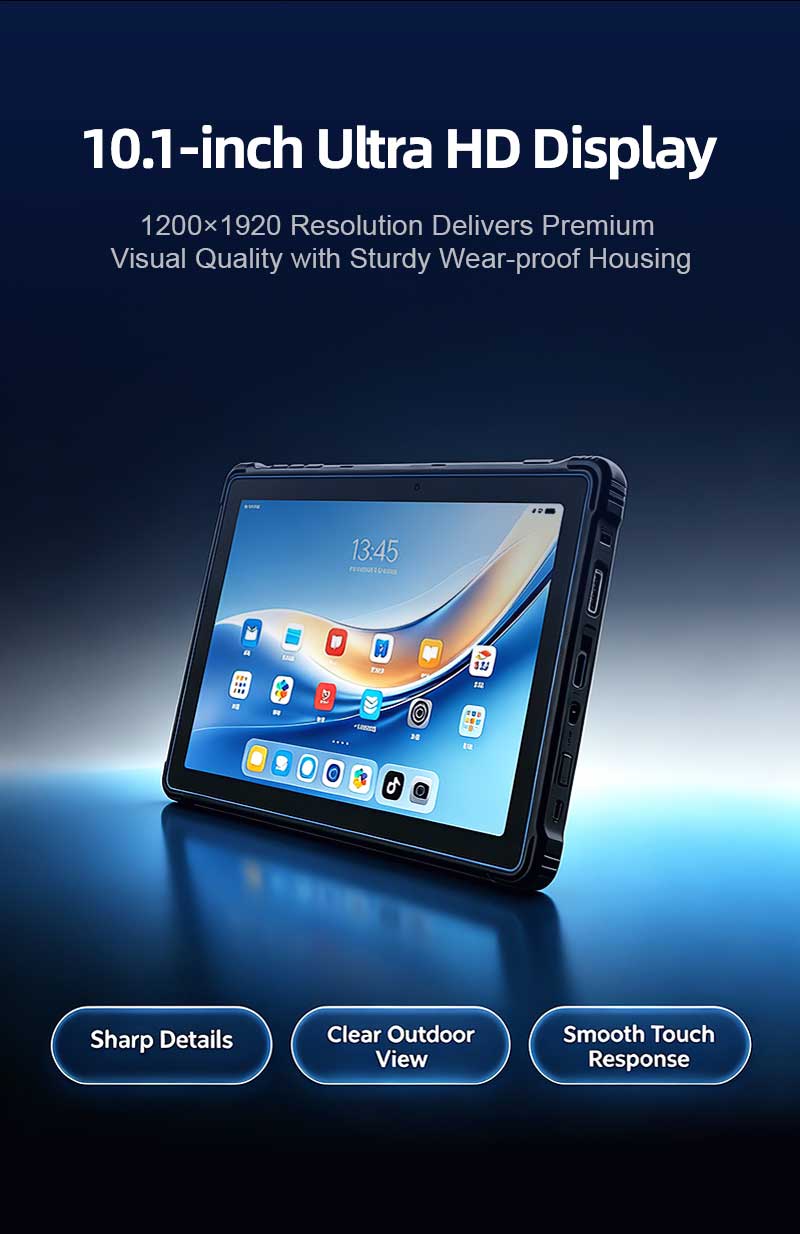

3. 10.1" FHD 400nit Display: Readable in Any Light

Field workers often struggle with dim screens in direct sunlight. The RT81's 400nit display ensures visibility outdoors, while the 1200×1920 resolution provides sharp text and images for detailed maps or work orders. The 10-point capacitive touch works with gloves, and the screen is treated to resist smudges and scratches.

4. Real-World ROI Examples

Utility Company (300 field workers): Switching from consumer tablets + separate GPS receivers to RT81 with RTK Beidou reduced equipment costs by $1,200 per worker and cut pole inspection time by 40%. Accurate geo‑tagging eliminated manual data entry errors, improving asset database quality from 78% to 98%.

   Warehouse Operator (150 forklifts): Deploying RT81 units with RTK Beidou for forklift guidance reduced pallet misplacement by 85% and increased storage density by 12%. The 4G connectivity allowed real‑time slotting updates, reducing travel time per pick by 18%.

The RT81 proves that 4G rugged tablets, when paired with independent Beidou RTK, can handle high‑precision tasks previously reserved for expensive survey equipment – at a fraction of the cost. Sample units available for testing. OEM/ODM customization ready. Contact us for a demo unit or to discuss integrating RTK Beidou, 2D scanning, or NFC into your deployment.
