HOTUS HCAR5000 AMD Mini PC, Ryzen 5000H Series

This Mini PC XiaoYouXia HCAR5000 MI is powered by the AMD Ryzen 5000H Series pro

CPU:
AMD Ryzen 5000H Series Processor (5900HX / 5800H / 5600H) with AMD Radeon Graphics / Vega 10
Memory:
Dual-Channel DDR4 3200MHz, expandable up to 64GB RAM | SSD Options: 128GB/256GB/512GB/1TB (M.2 2280) + HDD Options: 500GB/1TB (7200rpm)
Display:
Multi-Display Output Support via DP (2.0b) & Full-Function Type-C Ports (4K Video Output Supported)
I/O:
RJ45 Gigabit Ethernet x 1, USB 3.0 x 3, USB 2.0 x 2, DP (2.0b) x 1, Full-Function Type-C x 1, 3.5mm Audio Jack x 1, Dual 3.5mm Combo Jacks for Mic/Audio
Design & OS
Compact Industrial Chassis | Dimensions: 202mm x 212mm x 65mm, Weight: 2455g | Pre-installed Windows 10/11, Supports Linux Soft Route OS
OEM / ODM / JDM Available:
Yes
Warranty & After-Sales:
HOTUS provides a 3-Year Limited Warranty
Certification:
CE, FCC, RoHS
OEM / ODM welcome . Factory-direct . Response within 24h

HOTUS Mini PC HCAR5000 MI Key Features & Highlights

AMD Ryzen 5000H High-Performance Processor

Equipped with high-performance AMD Ryzen 5000H Series processors (5900HX/5800H/5600H) and Radeon Graphics for smooth multitasking and rendering.

Up to 64GB DDR4 RAM & Dual SSD/HDD Storage

Supports up to 64GB DDR4 3200MHz memory along with flexible dual-storage architecture combining high-speed M.2 SSDs and mass-storage 2.5" HDDs.

Dual 4K Video Output via DP 2.0b & Type-C

Features DP 2.0b and full-function Type-C ports with native video signal output, enabling efficient dual-monitor workplace setups.

Versatile OS Compatibility & Industrial Build

Fully compatible with Windows 10/11 and Linux soft route OS, featuring 5 USB ports, RJ45 LAN, and dual audio jacks in a durable chassis.


HOTUS Mini PC XiaoYouXia HCAR5000 MI Technical Specifications

Product ModelMini PC XiaoYouXia HCAR5000 MI
Processor (CPU)AMD Ryzen 5000H Series (Ryzen 9 5900HX / Ryzen 7 5800H / Ryzen 5 5600H)
Graphics (GPU)AMD Radeon™ Graphics / AMD Radeon Vega 10
System Memory (RAM)DDR4 3200MHz, Expandable Up to 64GB
Storage ExpansionM.2 2280 SSD Options: 128GB / 256GB / 512GB / 1TB | 2.5" HDD Options: 500GB / 1TB (7200rpm)

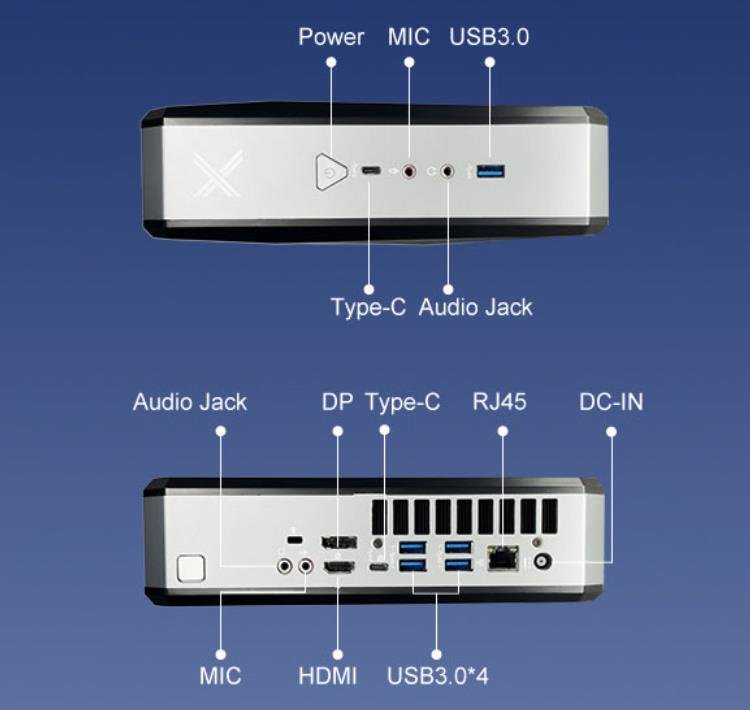

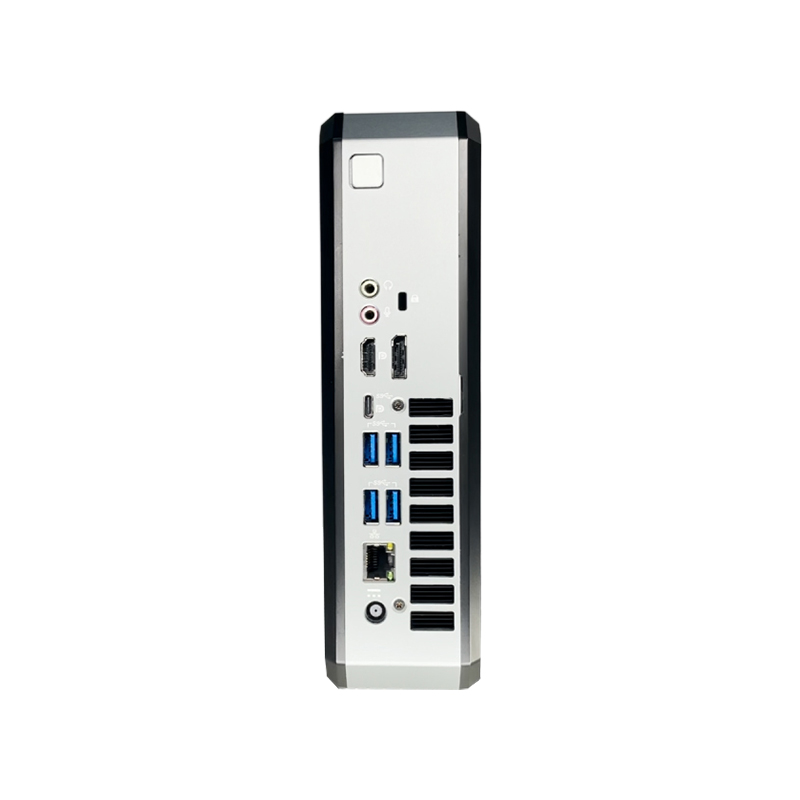

I/O Expansion PortsRJ45 LAN x 1 | USB 3.0 x 3 | USB 2.0 x 2 | DP (2.0b) x 1 | Full-Function Type-C (Video Out) x 1 | 3.5mm Audio Jack x 1 | Dual 3.5mm Mic/Audio Combo Jacks
Operating SystemWindows 10 / Windows 11 / Linux Soft Route OS

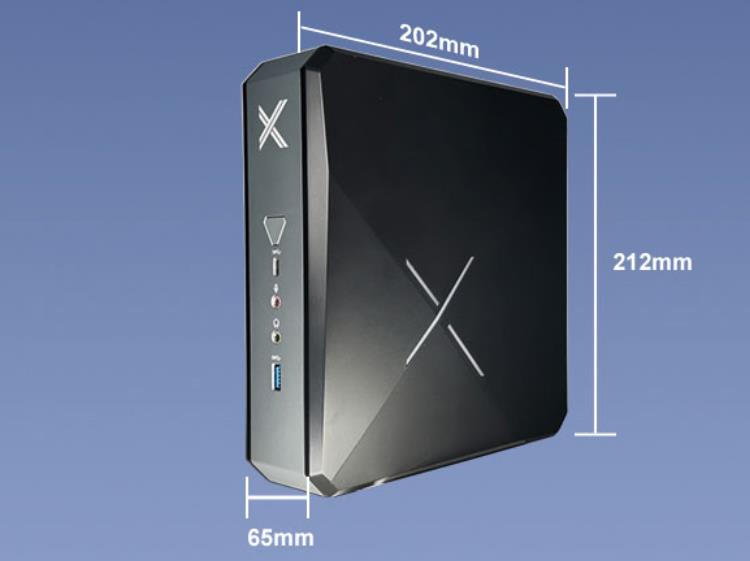

Dimensions & Weight202mm x 212mm x 65mm | Net Weight: 2455g
Key PointsAMD Ryzen 5000H Series // DDR4 RAM Up to 64GB // M.2 SSD + HDD Dual Storage // Dual Video Output (DP + Type-C) // Windows & Linux Soft Route Support


HOTUS Mini PC HCAR5000 MI Applications & Use Cases

Designed for enterprise office computing, industrial automation, soft route networking, digital signage, and multi-display workstations.


This Mini PC XiaoYouXia HCAR5000 MI is powered by the AMD Ryzen 5000H Series processors, offering options like 5900HX, 5800H, and 5600H for exceptional computing performance. Featuring AMD Radeon Vega10 or AMD Radeon™ Graphics, it delivers stunning visuals for work or entertainment. With support for up to 64GB of DDR4 3200MHz memory and flexible storage options ranging from 128GB to 1TB SSDs or 500GB/1TB 7200rpm HDDs, it caters to diverse storage needs.


The Mini PC includes versatile connectivity options: RJ45, 3 USB 3.0, 2 USB 2.0,  DP (2.0b), a 3.5mm audio jack, dual 3.5mm combo ports for microphone and audio, and a Type-C port with video support. Its compact design measures 202mm x 212mm x 65mm, weighing 2455g, making it a perfect fit for professional or personal use. Compatible with Windows 10/11 and Linux soft route OS, it’s an all-in-one solution for high performance and multitasking efficiency.

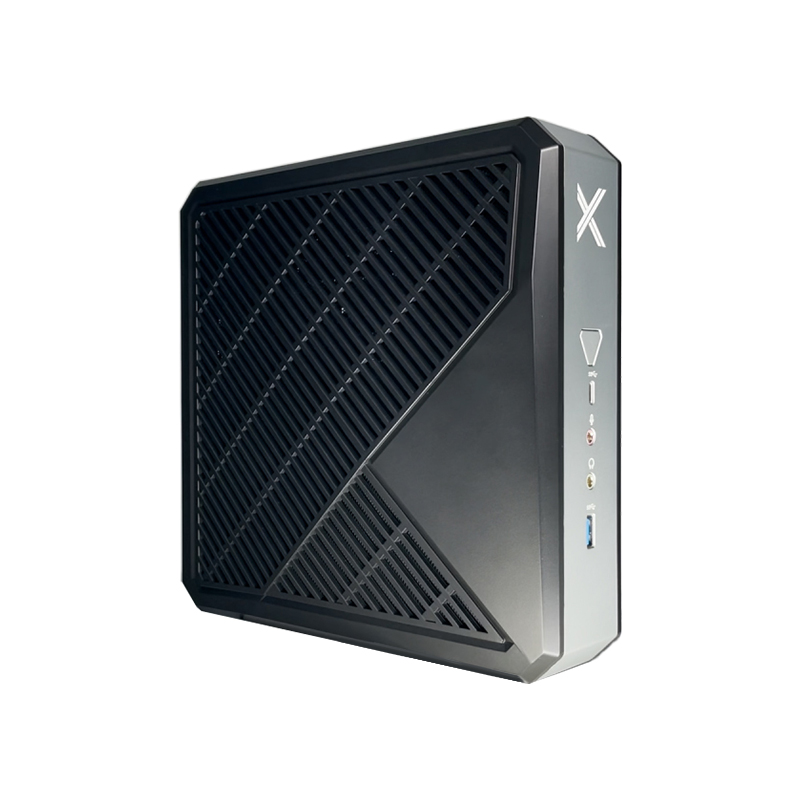

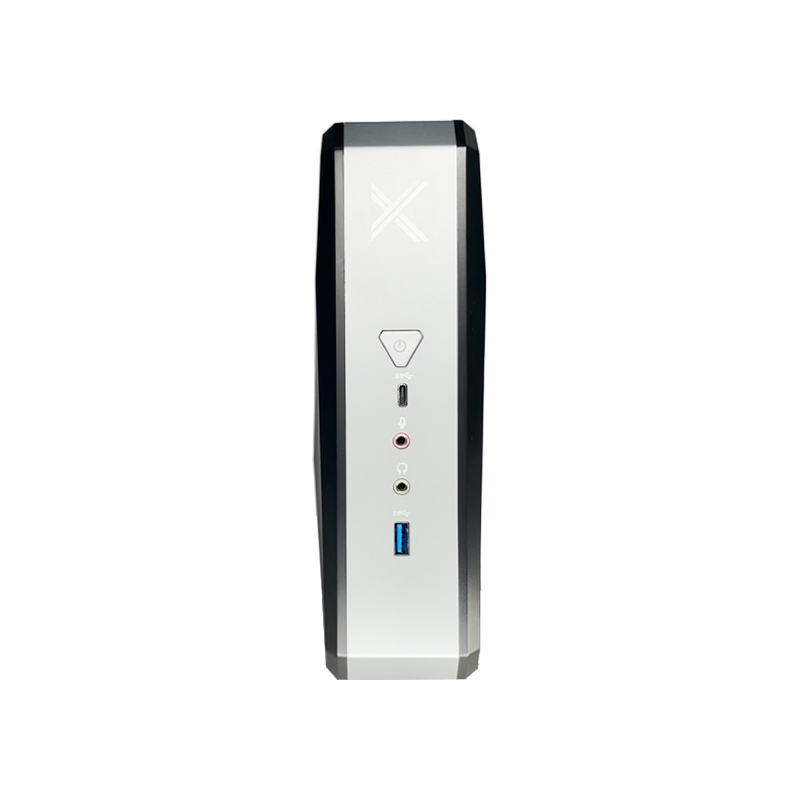

Mini PC XiaoYouXia HCAR5000 MI

Mini PC XiaoYouXia HCAR5000 MI

Mini PC XiaoYouXia HCAR5000 MI

Mini PC XiaoYouXia HCAR5000 MI

Mini PC XiaoYouXia HCAR5000 MI

Mini PC XiaoYouXia HCAR5000 MI

Mini PC XiaoYouXia HCAR5000 MI

Mini PC XiaoYouXia HCAR5000 MI


HOTUS Mini PC HCAR5000 MI OEM / ODM Customization

Customize interfaces, firmware, OS, boot logo, branding & packaging. 72-hour rapid prototyping, 8D quality control, scalable manufacturing.

1.Appearance & Structure Customization

• Custom chassis color, size, structural openings, laser engraving, logo silk printing, nameplate, dustproof and moisture-proof structure optimization

2 Hardware & Interface Customization

• Custom industrial I/O ports (CAN, GPIO, PoE, RS485/RS232, DI/DO), full BIOS customization, RAM/ROM, wide-temperature module, industrial power supply, fan/fanless cooling, 4G/5G, Wi-Fi 6 and Bluetooth modules

3 System & Pre-installation Customization

• Pre-install Windows IoT/Ubuntu/Linux system, custom industrial system image, driver preloading, industrial software pre-installation, system simplification, permission lock, auto-start setting, system activation, partition preset and firmware packaging

4 Packaging & Material Customization

• Neutral/custom brand packaging, custom shockproof carton, color box, inner buffer, manuals, certificates, device labels, power cable, serial cable, mounting brackets and accessory combination kits

RS51 4G Rugged Handheld Terminal | 6.3" FHD+ | Qualcomm SM6225 Octa-core 2.4GHz | Android 13


HOTUS Mini PC HCAR5000 MI Certification & Compliance

CEFCCRoHSISO 9001


RS51 4G Rugged Handheld Terminal | 6.3" FHD+ | Qualcomm SM6225 Octa-core 2.4GHz | Android 13


HOTUS Mini PC HCAR5000 MI - Frequently Asked Questions (FAQ)

1. Which processors are available for the HOTUS HCAR5000 MI Mini PC?

The Mini PC offers AMD Ryzen 5000H Series options, including Ryzen 9 5900HX, Ryzen 7 5800H, and Ryzen 5 5600H.

2. What is the maximum RAM capacity supported?

It supports DDR4 3200MHz dual-channel memory expandable up to 64GB RAM.

3. What storage configurations does the device support?

It supports M.2 2280 SSDs (128GB to 1TB) alongside 2.5-inch 7200rpm HDDs (500GB or 1TB) for dual-storage setup.

4. Does the Type-C port support video output?

Yes, the Type-C port is full-featured and supports video output alongside DP (2.0b) for dual-screen setups.

5. What operating systems can be pre-installed on this Mini PC?

The system supports Windows 10, Windows 11, and Linux soft route operating systems.

6. How many USB ports are available on the chassis?

It features 3 USB 3.0 ports and 2 USB 2.0 ports, plus 1 Type-C interface.

7. What are the dimensions and weight of the HCAR5000 MI?

The dimensions are 202mm x 212mm x 65mm, with a total weight of approximately 2455g.

8. What audio connection options are available?

It includes a standard 3.5mm audio jack plus dual 3.5mm combo jacks for dedicated microphone and audio output.

9. Is OEM/ODM customization supported for bulk enterprise orders?

Yes, HOTUS offers full OEM/ODM services including custom BIOS settings, logo printing, and pre-configured hardware options.

10. What warranty policy does HOTUS offer for Mini PCs?

HOTUS provides a 3-Year Limited Warranty along with technical support.



Warranty & After-Sales Service

Reliable support from purchase to long-term operation. HOTUS provides a  3-Year Limited Warranty    for industrial PDA, rugged tablets and Mini PCs, together with lifetime technical support  to help keep your equipment stable and operational.

Our After-Sales Commitment

3 Years

Limited Warranty

Three-year limited warranty for the main units of industrial PDA,  rugged tablets and Mini PCs.

Lifetime

Technical Support

Technical consultation, device setup, troubleshooting and system compatibility support throughout the product lifecycle.

Professional

Repair & Replacement

Qualifying warranty failures are supported with inspection, repair or replacement of defective components according to the policy.

Warranty Coverage

3-Year Limited Warranty

The warranty applies to new genuine products used under normal commercial or industrial conditions. The warranty period starts from the date the customer receives and accepts the product.

ProductMain Unit WarrantyAccessories Warranty
Industrial PDA3 Years1 Year
Rugged Tablet3 Years1 Year
Mini PC3 Years1 Year

Core hardware components such as the original hard drive, memory, motherboard, CPU, touch module and rugged sealing components follow  the main unit's 3-year warranty. Common consumable accessories such as power adapters, data cables, external cables and standard buttons are covered for 1 year.



Lead Time & Response Commitment

Clear production timelines and responsive communication to help you plan procurement, product customization and project delivery.

1–3 Days

In-Stock Products

Fast order processing for available stock, helping you meet urgent purchasing and delivery requirements.

20–45 Days

OEM / ODM Orders

Estimated production lead time for customized products, subject to specifications, order quantity and project requirements.

Within 24h

Response Time

Our team responds to product inquiries, quotation requests and technical questions within 24 hours.

Actual lead times may vary depending on stock availability, order quantity, customization requirements and order confirmation.
