HOTUS MQi12 Palm-Sized Mini PC – The Ultimate Productivity Powerhouse in Your Palm

The Palm-sized miniPC redefines what a compact computer can do. Powered by Intel

CPU:
Intel 12th Gen Alder Lake Core i3-1215U / i5-1235U/12450H / i7-1255U/12650H/1270P / i9-12900HK (Up to 14 Cores 20 Threads, 5.0GHz, 24MB Cache)
Memory:
Dual SO-DIMM DDR4 3200MT/s (up to 64GB) OR Onboard LPDDR5 5200MT/s Dual-Channel (12G/16G/24G)
Display:
Triple-Display Output Support via Dual HDMI 2.1 (4096x2304 @ 60Hz) + Full-Function Type-C (8K @ 60Hz Display)
I/O:
USB 3.2 Type-A x 5, HDMI 2.1 x 2, 2.5G RJ45 LAN x 1, Full-Function Type-C (10Gbps/8K Display/PD) x 1, DC Jack (5.5/2.5mm) x 1, 3.5mm Audio Jack x 1
Design & OS
Palm-sized Compact PC+ABS Chassis | Dimensions: 113mm x 113mm, Net Weight: 800g | Windows 11 / Linux Compatible
OEM / ODM / JDM Available:
Yes
Warranty & After-Sales:
HOTUS provides a 3-Year Limited Warranty
Certification:
CE, FCC, RoHS Compliant
OEM / ODM welcome . Factory-direct . Response within 24h

HOTUS MQi12 Palm-Sized Mini PC Key Features & Highlights

Intel 12th Gen Alder Lake Performance Architecture

Configurable with Intel Core i3, i5, i7, or i9 processors (up to 14 cores 20 threads, 5.0GHz Turbo), delivering powerful desktop-class performance in a 113mm palm-sized footprint.

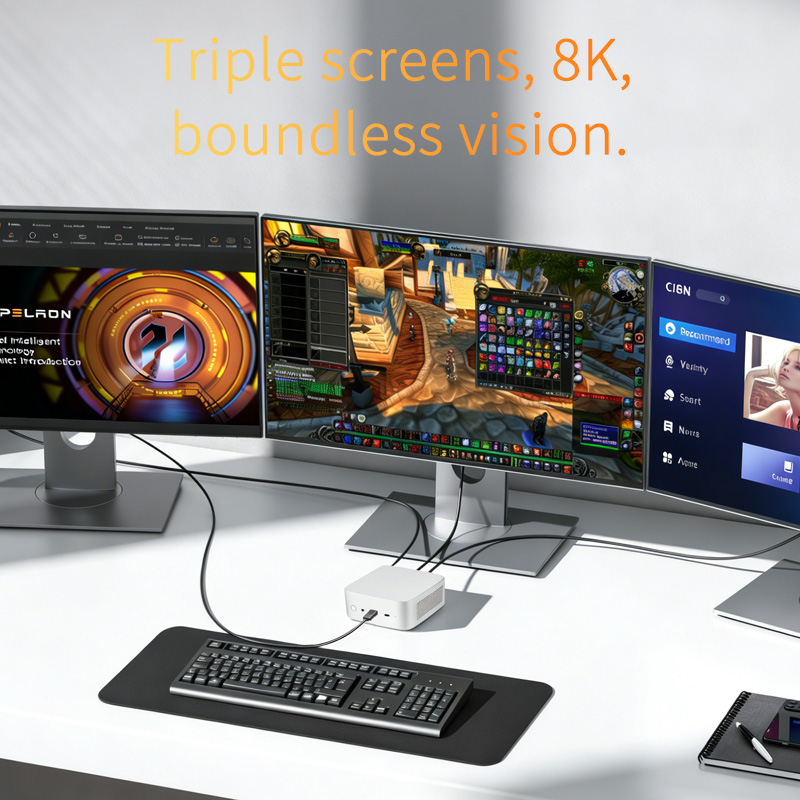

Triple-Display Support & Full-Function Type-C

Supports 3 independent displays via dual HDMI 2.1 (4K@60Hz) and a full-function Type-C port (10Gbps data, 8K@60Hz video, and PD power delivery).

2.5G High-Speed LAN & Wi-Fi 6 Connectivity

Equipped with a 2.5G adaptive Ethernet port, Wi-Fi 6 wireless networking, Bluetooth 5.2, and 5 USB 3.2 Type-A ports for extensive peripheral integration.

Enterprise Security & BIOS Automation

Features CPU-integrated TPM 2.0 hardware security, auto power-on upon AC recovery, RTC timed boot, and UEFI diskless startup for commercial deployments.


HOTUS MQi12 Palm-Sized Mini PC Technical Specifications

Product ModelPalm-Sized Mini PC MQi12
Processor (CPU)Intel 12th Gen Alder Lake Series (Core i3-1215U / i5-1235U/12450H / i7-1255U/12650H/1270P / i9-12900HK, Up to 14 Cores 20 Threads, Max 5.0GHz, 24MB Cache)
Graphics (GPU)Intel® Iris® Xe Graphics Eligible (Up to 96 Execution Units, Max Frequency 1.45GHz)
System Memory (RAM)Dual SO-DIMM DDR4 3200 MT/s (Up to 64GB) OR Onboard Dual-Channel LPDDR5 5200 MT/s (12GB / 16GB / 24GB)
Storage SlotsM.2 2280 NVMe PCIe Slot x 1 + M.2 2242 NVMe PCIe / SATA3.0 Slot x 1 (Supports up to 4TB Expansion)
Connectivity & Networking2.5G RJ45 Ethernet Port x 1 | M.2 Wi-Fi 6 (802.11ax) & Bluetooth 5.2 | FPC Dual Antennas

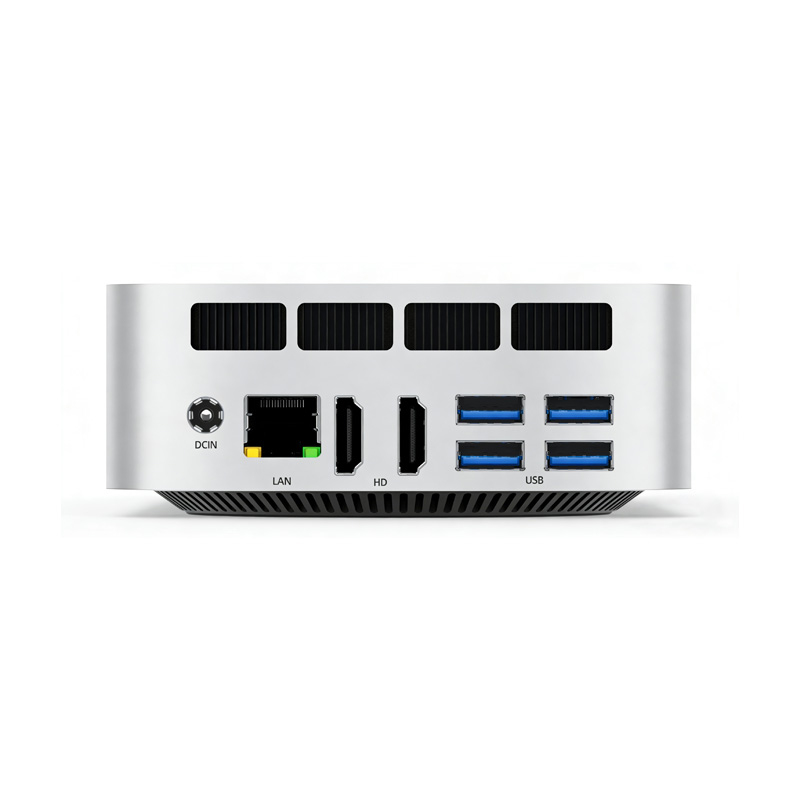

I/O Ports & Video OutputUSB 3.2 Type-A x 5 | HDMI 2.1 x 2 (4096x2304 @ 60Hz) | Full-Function Type-C x 1 (10Gbps / 8K@60Hz Display / PD) | 3.5mm Audio Jack x 1 | DC Jack (5.5/2.5mm) x 1
BIOS & System FeaturesIntegrated CPU TPM 2.0 | Auto Power-on | Real-Time Clock (RTC) Timed Power-up | UEFI Diskless Boot Support | LED Status Indicator

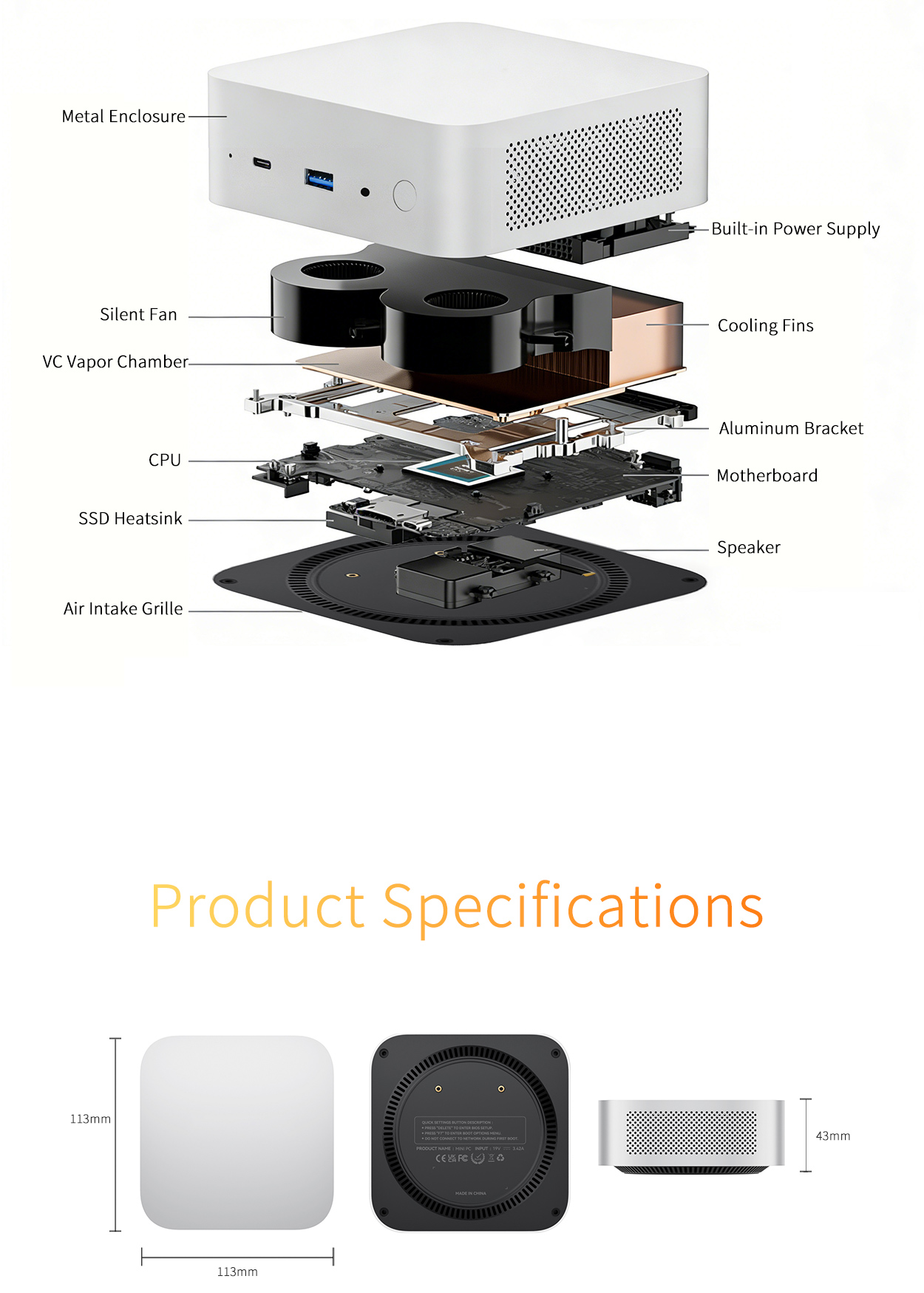

Dimensions, Weight & Material113mm x 113mm Compact Form Factor | Net Weight: 800g | PC+ABS Durable Shell
Operating System & PowerSupports Windows 11 / Linux | Power Input: DC 19V / 3.42A (100V-240V AC Adapter)
Key PointsPalm-Sized 113x113mm // Intel 12th Gen Core i3/i5/i7/i9 // Triple-Display 8K/4K Output // 2.5G High-Speed LAN & Wi-Fi 6 // 5x USB 3.2 Ports // TPM 2.0 & Auto Power-on


HOTUS Palm-sized mini PCs  Applications & Use Cases

Deployed in factory automation lines, in-vehicle computing, energy storage monitoring, power/grid, digital signage and cloud-terminal edge nodes.



The Palm-sized miniPC redefines what a compact computer can do. Powered by Intel's 12th Gen Core low-power processors (from i3-1215U up to i9-12900HK), this mini PC delivers desktop-class performance in an 800g chassis. With triple 8K display output (2x HDMI 2.1 + 1x Type-C), you can run documents, spreadsheets, 4K video editing, and more simultaneously without lag. Dual-channel memory supports up to 64GB DDR4/DDR5, and the storage configuration is unprecedented for a mini PC: 2x M.2 NVMe slots + 2x 2.5" SATA bays – up to 12TB total. Whether you're a financial analyst, content creator, software developer, or digital signage operator, the Palm-sized miniPC handles your workflow with ease.

Palm-sized miniPC– The Ultimate Productivity Powerhouse in Your Palm

Typical Deployments

Financial Trading Desk: Run multiple monitors with live charts, news feeds, and trading platforms. Triple 4K@60Hz displays give you the edge – spot trends across six windows simultaneously.
Video Editing & Content Creation: Edit 8K footage on one screen, preview on another, and keep your timeline on the third. The powerful i9 CPU and up to 64GB RAM ensure smooth rendering.
Software Development & Virtualization: Run multiple VMs, containers, and IDEs. 4 storage bays let you separate OS, code, databases, and backups.
Digital Signage & Video Wall Controller: Drive three 4K displays independently for retail lobbies, conference centers, or museums. Small footprint, silent operation, 24/7 reliability.
Home Office & Multitasking: Connect your main monitor, secondary vertical screen for coding/documents, and a third for video calls. 2.5G Ethernet and Wi-Fi 6 keep you connected.
Industrial Control & Edge Computing:  Wide temperature tolerance? The Palm-sized miniPC with its low-power CPUs can be deployed in factories or kiosks.

Palm-sized miniPC– The Ultimate Productivity Powerhouse in Your Palm

Palm-sized miniPC– The Ultimate Productivity Powerhouse in Your Palm

Palm-sized miniPC– The Ultimate Productivity Powerhouse in Your Palm



Why Triple 8K Display Mini PCs Are the Future of Multi-Tasking – Palm-sized miniPC Review

For decades, power users had to choose between a bulky tower with multiple graphics cards or a laptop with limited display outputs. The Palm-sized miniPC changes the game. Packing Intel 12th Gen Core processors (up to i9-12900HK) and triple 8K display support via 2x HDMI 2.1 and 1x Type-C, this 800g mini computer drives up to three 8K monitors simultaneously. But specs alone don't tell the full story. Let's explore why the Palm-sized miniPC is the ultimate productivity tool for professionals who demand more screen real estate without sacrificing desk space.

1. Triple 8K Output – No Trade-Offs

Most mini PCs offer dual 4K at best. The Palm-sized miniPC goes further: two HDMI 2.1 ports and one Type-C port each support 8K@60Hz displays. In real-world use, this means you can run three 4K monitors at 60Hz simultaneously – perfect for trading dashboards, video editing timelines, or multi-VM development. The Type-C port also delivers 10Gbps data and PD power, reducing cable clutter.

2. Expandable Storage Like a Tower PC

One common frustration with mini PCs is limited storage. The Palm-sized miniPC features two M.2 NVMe slots (PCIe 3.0×4) and two 2.5-inch SATA drive bays. That's up to 4TB NVMe + 8TB SATA – enough for a massive media library, multiple OS installations, or RAID configurations. Whether you're a video editor storing raw footage or a database administrator running local replicas, the Palm-sized miniPC scales with you.

3. Connectivity That Rivals Full-Size Desktops

With 5x USB 3.2 Type-A ports, 2.5G Ethernet, Wi-Fi 6, and Bluetooth 5.2, the Palm-sized miniPC eliminates the need for external dongles or expansion hubs. The 2.5G Ethernet port is a game-changer for NAS users, home lab enthusiasts, or anyone transferring large files over LAN. Wi-Fi 6 ensures low latency and high throughput in congested office environments.

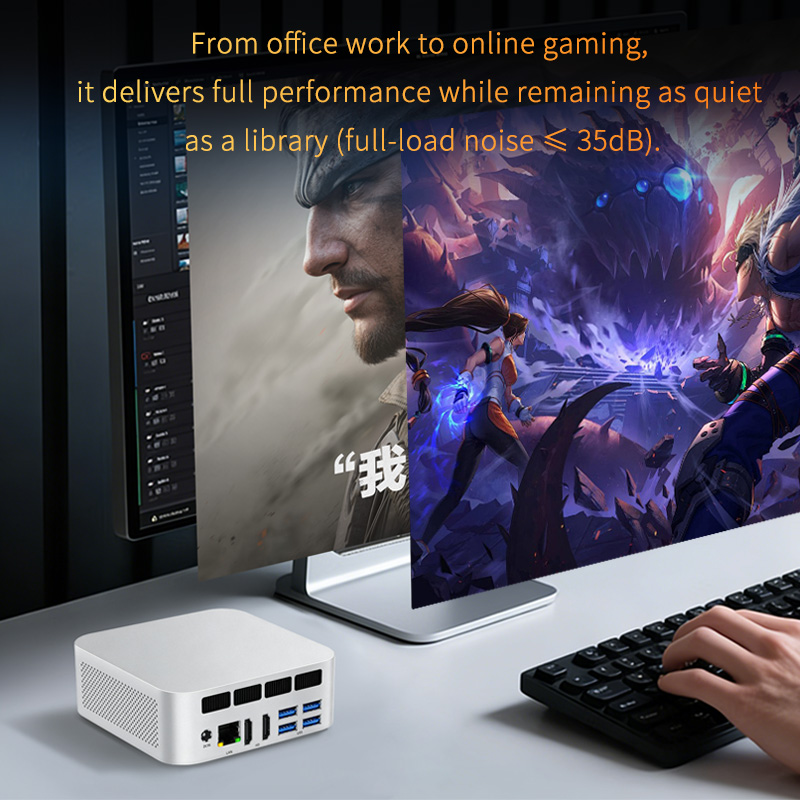

4. Silent and Cool – Even Under Load

Intel's 12th Gen low-power processors (TDP as low as 15W for U-series, up to 45W for H-series) generate less heat than desktop counterparts. The Palm-sized miniPC's PC+ABS chassis with optimized airflow keeps noise levels under 30dB during typical office workloads. For 24/7 operation (digital signage, security NVR, etc.), the system remains stable without throttling.

Palm-sized miniPC– The Ultimate Productivity Powerhouse in Your Palm

Real-World Scenarios Where the Palm-sized miniPC Shines

• Stock Trader's Command Center: Three 4K monitors – one for charts, one for news feeds, one for order execution. The i7-1270P variant handles real-time data streams without lag.
• YouTube Creator's Editing Rig: Edit 4K footage on the main display, preview on a secondary monitor, and keep asset folders on a third. Export times are cut in half thanks to Intel Quick Sync.
• Software Engineer's Lab: Run Windows on one screen, Linux VM on another, and documentation on the third. 64GB RAM lets you spin up multiple containers effortlessly.
• Retail Digital Signage Network: Deploy dozens of Palm-sized miniPC units across store locations, each driving three displays. Centralized management via Wi-Fi 6 and 2.5G Ethernet.

Palm-sized miniPC– The Ultimate Productivity Powerhouse in Your Palm

Which CPU Should You Choose?

i3-1215U / i5-1235U: Ideal for office work, web browsing, digital signage, and light multitasking – fanless possible (check with sales).
i5-12450H/ i7-1255U / i7-12650H /: Best balance of price and performance for content creation, trading, and development.
i7-1270P / i9-12900HK: For video editing, 3D modeling, data science, and running multiple VMs – maximum cores and cache.



Conclusion: The Palm-sized miniPC Redefines Small Form Factor Computing

The Palm-sized miniPC proves that you don't need a giant tower to get triple-8K output, massive storage expansion, and enterprise-grade connectivity. With Intel 12th Gen Core processors, up to 64GB RAM, and a storage architecture that includes both NVMe and SATA bays, this mini computer handles workloads that would choke competing devices. Whether you're outfitting a trading floor, a video editing suite, or a developer's home lab, the Palm-sized miniPC delivers. Sample units available for testing. OEM/ODM customization ready.

HOTUS  mini PCs OEM / ODM Customization

Customize interfaces, firmware, OS, boot logo, branding & packaging. 72-hour rapid prototyping, 8D quality control, scalable manufacturing.

1.Appearance & Structure Customization

• Custom chassis color, size, structural openings, laser engraving, logo silk printing, nameplate, dustproof and moisture-proof structure optimization

2 Hardware & Interface Customization

• Custom industrial I/O ports (CAN, GPIO, PoE, RS485/RS232, DI/DO), full BIOS customization, RAM/ROM, wide-temperature module, industrial power supply, fan/fanless cooling, 4G/5G, Wi-Fi 6 and Bluetooth modules

3 System & Pre-installation Customization

• Pre-install Windows IoT/Ubuntu/Linux system, custom industrial system image, driver preloading, industrial software pre-installation, system simplification, permission lock, auto-start setting, system activation, partition preset and firmware packaging

4 Packaging & Material Customization

• Neutral/custom brand packaging, custom shockproof carton, color box, inner buffer, manuals, certificates, device labels, power cable, serial cable, mounting brackets and accessory combination kits

RS51 4G Rugged Handheld Terminal | 6.3" FHD+ | Qualcomm SM6225 Octa-core 2.4GHz | Android 13


HOTUS MQi12 Palm-Sized mini PCs Certification & Compliance

CEFCCRoHSISO 9001


RS51 4G Rugged Handheld Terminal | 6.3" FHD+ | Qualcomm SM6225 Octa-core 2.4GHz | Android 13


HOTUS Palm-sized mini PCs System Firmware Download

Get system installation packages for Hotus mini pcs

Download Win10 64-bit System(RAR)

Download Win11 64-bit System(RAR)




HOTUS MQi12 Palm-Sized Mini PC - Frequently Asked Questions (FAQ)

1. What processor options are available for the HOTUS MQi12 Mini PC?

The MQi12 offers Intel 12th Gen Alder Lake processors including Core i3-1215U, i5-1235U/12450H, i7-1255U/12650H/1270P, and i9-12900HK.

2. What memory configurations are supported on the MQi12?

It supports dual SO-DIMM DDR4 3200 MT/s memory up to 64GB, or onboard LPDDR5 5200 MT/s dual-channel memory (12GB, 16GB, or 24GB).

3. What M.2 storage slots are available in this palm-sized chassis?

The system includes 1x M.2 2280 NVMe PCIe slot and 1x M.2 2242 NVMe PCIe / SATA slot, supporting total storage up to 4TB.

4. Does the Type-C port support 8K display output and PD power delivery?

Yes, the full-function Type-C port supports 10Gbps data transmission, 8K@60Hz video output, and USB Power Delivery (PD).

5. How many external monitors can be connected simultaneously?

It supports triple simultaneous display output via two HDMI 2.1 ports (4K@60Hz) and one full-function Type-C port.

6. What wired and wireless network speeds are supported?

It features a 2.5G (10/100/1000M/2.5G adaptive) Ethernet port and an M.2 Wi-Fi 6 + Bluetooth 5.2 module with dual FPC antennas.

7. What are the exact dimensions and weight of the MQi12?

The MQi12 measures 113mm x 113mm and weighs approximately 800g with a PC+ABS durable casing.

8. Does the BIOS support commercial features like Auto Power-on and Diskless Boot?

Yes, the BIOS supports automatic boot after AC power loss, RTC timed power-on, and UEFI diskless boot.

9. Is TPM 2.0 hardware security integrated into the CPU?

Yes, CPU-integrated TPM 2.0 is fully supported for enhanced data security and Windows 11 compatibility.

10. What warranty and OEM/ODM services are offered for the MQi12?

HOTUS provides a 3-Year Limited Warranty along with custom BIOS settings, logo printing, and pre-installed OS services.



Warranty & After-Sales Service

Reliable support from purchase to long-term operation. HOTUS provides a  3-Year Limited Warranty    for industrial PDA, rugged tablets and Mini PCs, together with lifetime technical support  to help keep your equipment stable and operational.

Our After-Sales Commitment

3 Years

Limited Warranty

Three-year limited warranty for the main units of industrial PDA,  rugged tablets and Mini PCs.

Lifetime

Technical Support

Technical consultation, device setup, troubleshooting and system compatibility support throughout the product lifecycle.

Professional

Repair & Replacement

Qualifying warranty failures are supported with inspection, repair or replacement of defective components according to the policy.

Warranty Coverage

3-Year Limited Warranty

The warranty applies to new genuine products used under normal commercial or industrial conditions. The warranty period starts from the date the customer receives and accepts the product.

ProductMain Unit WarrantyAccessories Warranty
Industrial PDA3 Years1 Year
Rugged Tablet3 Years1 Year
Mini PC3 Years1 Year

Core hardware components such as the original hard drive, memory, motherboard, CPU, touch module and rugged sealing components follow  the main unit's 3-year warranty. Common consumable accessories such as power adapters, data cables, external cables and standard buttons are covered for 1 year.



Lead Time & Response Commitment

Clear production timelines and responsive communication to help you plan procurement, product customization and project delivery.

1–3 Days

In-Stock Products

Fast order processing for available stock, helping you meet urgent purchasing and delivery requirements.

20–45 Days

OEM / ODM Orders

Estimated production lead time for customized products, subject to specifications, order quantity and project requirements.

Within 24h

Response Time

Our team responds to product inquiries, quotation requests and technical questions within 24 hours.

Actual lead times may vary depending on stock availability, order quantity, customization requirements and order confirmation.
