HOTUS HTNJ10C 10.1-inch Rugged Windows Tablet
- Processor & OS:
- Intel N100 Processor (4 Cores, 4 Threads, Frequency up to 3.4GHz) | Windows 10 Pro / Windows 11 Pro
- Display:
- 10.1-inch IPS Full HD Touchscreen (1200 x 1920 Resolution, 560nits High Brightness, 10-Point Capacitive Touch, Hardness Level: 7H, Supports Stylus & Wet-Hand Operation)
- Durability:
- IP67 Dustproof & Waterproof Rating, MIL-STD-810G Certified, 1.22m Drop Resistance, Double-Layer Solid Body, Operating Temp: -20°C to 55°C, Gross Weight: 2.1KG
- Battery:
- 7.6V 3500mAh Removable Battery | Power Adaptor: AC 100V~240V / Output DC 19V 3.42A
- Connectivity:
- Wi-Fi 6 (802.11ax), Bluetooth 5.0, Global 4G LTE Full Netcom, BDS/GPS/GLONASS Satellite Positioning
- OEM / ODM / JDM Available：
- Yes
- Warranty & After-Sales：
- HOTUS provides a 3-Year Limited Warranty
- Certification：
- MIL-STD-810G, CE, FCC, 3C, IP67
OEM / ODM welcome . Factory-direct . Response within 24h
HOTUS HTNJ10C Key Features & Highlights
Advanced Intel N100 Quad-Core Processing
Powered by the modern Intel N100 processor with 4 cores and turbo speeds up to 3.4GHz, delivering fast and energy-efficient Windows performance.
Next-Gen Wi-Fi 6 & Bluetooth 5.0
Equipped with Wi-Fi 6 for ultra-fast wireless throughput, lower latency, and stable network connectivity in crowded industrial environments.
IP67 Waterproof & Double-Layer Solid Chassis
Built with IP67 protection, MIL-STD-810G military drop resistance, and a solid double-layer body designed for harsh outdoor working conditions.
High-Brightness 560nits Display & Rich I/O
Features a 560nits sunlight-readable screen, physical RJ45 Ethernet port, USB Type-A/C, HDMI, and optional barcode/RFID data collection modules.
HOTUS HTNJ10C 10.1-Inch Industrial Rugged Windows Tablet Technical Specifications
| Product Model | HTNJ10C 10.1-Inch Industrial Rugged Windows Tablet |
|---|---|
| Processor & GPU | Intel N100 Quad-Core Processor (4 Cores, 4 Threads, Burst up to 3.4GHz) | Graphics: Intel UHD Graphics |
| RAM & Storage | Standard: High-Speed RAM + SSD Storage (Supports M.2 Extension) |
| Display & Touch | 10.1-inch IPS Touchscreen (1200 x 1920 Resolution, 560nits High Brightness, 10-Point Capacitive Touch, Hardness Level: 7H, Supports Stylus & Wet-Hand Operation) |
| Camera System | 5MP Front Camera + 8MP Rear Autofocus Camera with LED Flashlight |
| Battery System & Power | 7.6V 3500mAh Removable Battery | Power Adaptor: AC 100V~240V / Output DC 19V 3.42A |
| Protection & Military Standard | IP67 Dustproof & Waterproof, MIL-STD-810G Certified, 1.22m Drop Resistance, Double-Layer Solid Body, Operating Temp: -20°C to 55°C |

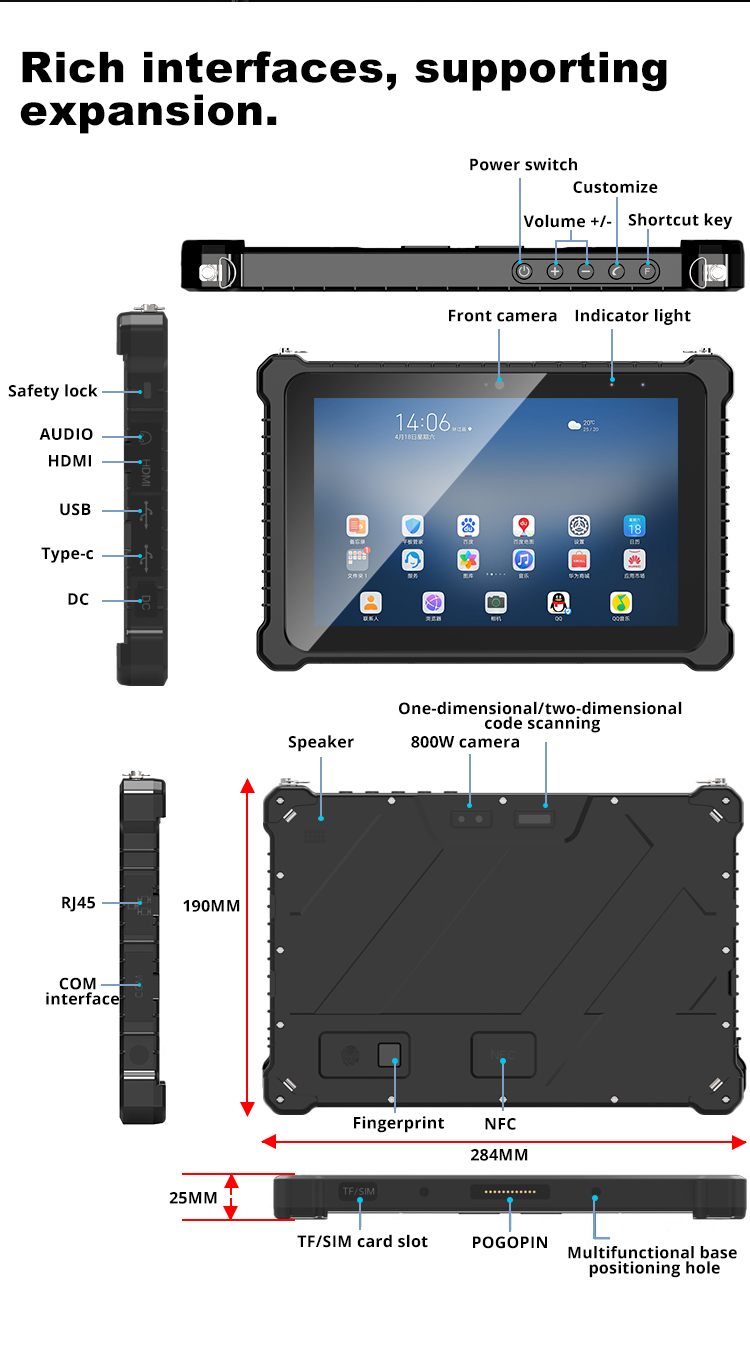

| Interfaces & Connectivity | Audio x1, Mini HDMI x1, USB Type-A x1, USB Type-C x1, DC IN x1, RJ45 Ethernet x1, TF Card Slot x1, SIM Slot x1, 12Pin Pogo-Pin x1 | Wi-Fi 6 + Bluetooth 5.0 + Global 4G LTE |
| Dimensions & Weight | 28.4cm x 19cm x 2.5cm | Gross Weight: approx. 2.1KG |
| Data Capture & Security (Optional) | Optional 1D/2D Barcode Scanner, UHF RFID, Fingerprint Reader, 13.56MHz NFC, TPM2.0 Hardware Security |
| OS | Windows 10 Pro / Windows 11 Pro |
| Key Points | Intel N100 Quad-Core Efficiency // Wi-Fi 6 & Bluetooth 5.0 // 560nits High-Brightness Display // IP67 & MIL-STD-810G Rugged // Rich Physical Interfaces |
HOTUS HTNJ10C Rugged Windows Tablet Applications & Use Cases
Widely deployed in smart manufacturing, outdoor utility inspections, warehouse asset tracking, public safety, and field service management.
HOTUS Rugged Tablet OEM / ODM Customization
Customize interfaces, firmware, OS, boot logo, branding & packaging. 72-hour rapid prototyping, 8D quality control, scalable manufacturing.
1.1 Appearance & Structure Customization
• Custom body color, size, protective structure, laser engraving, logo silk printing, nameplate and IP65/IP67/IP68 waterproof & dustproof grade
1.2 Hardware & Interface Customization
• Custom I/O ports (CAN, GPIO, PoE, RS485/RS232, DI/DO), BIOS settings, RAM/ROM, wide-temperature module, power supply, detachable battery, fan/fanless cooling, 1D/2D scanner, NFC, RFID, fingerprint, GPS/Beidou, 4G/5G, Wi-Fi 6 and Bluetooth
1.3 System & Pre-installation Customization
• Pre-install Windows IoT/Ubuntu/Linux system, custom system image, driver integration, customer software pre-installation, system simplification, permission lock, auto-start configuration, system activation, partition preset and firmware packaging
1.4 Packaging & Material Customization
• Neutral/custom brand packaging, custom carton, color box, buffer lining, manual, certificate, labels, power cable, shoulder strap, wrist strap, serial cable and full accessory kits
HOTUS HTNJ10C Rugged Tablet Certification & Compliance
CEFCCRoHSISO 9001
HOTUS HTNJ10C 10.1-Inch Rugged Windows Tablet - Frequently Asked Questions (FAQ)
1. What processor powers the HOTUS HTNJ10C rugged tablet?
The HTNJ10C is powered by the Intel N100 quad-core processor (4 cores, 4 threads, burst frequency up to 3.4GHz).2. Which operating system does the HTNJ10C run?
It comes pre-installed with Windows 10 Pro, with full upgrade compatibility for Windows 11 Pro.3. What wireless networking standards does it support?
It features advanced Wi-Fi 6 (802.11ax) and Bluetooth 5.0, ensuring high-speed and stable wireless connectivity.4. What are the screen size and brightness specifications?
It features a 10.1-inch IPS Full HD touchscreen (1200x1920 resolution) with a 560nits high-brightness backlight and 7H hardness scratch resistance.5. What environmental protection ratings does the tablet hold?
The device is IP67 dustproof and waterproof certified and meets MIL-STD-810G military standards for drop resistance.6. Does the HTNJ10C support barcode scanning and RFID modules?
Yes, optional modules include a 1D/2D barcode scanner, UHF RFID reader, fingerprint sensor, and 13.56MHz NFC.7. What physical I/O ports are built directly onto the device?
It includes an RJ45 Ethernet port, USB Type-A, USB Type-C, Mini HDMI, audio jack, DC power input, and a 12Pin Pogo-pin connector.8. What are the dimensions and gross weight of the tablet?
The tablet measures 28.4 x 19 x 2.5cm and weighs approximately 2.1KG (gross weight with battery and accessories).9. Can the tablet be mounted on vehicles or desks?
Yes, it supports dedicated desktop cradles and vehicle-mounted charging docks via its Pogo-pin interface.10. What warranty policy and customization options are offered by HOTUS?
HOTUS provides a 3-Year Limited Warranty and full OEM/ODM customization services (custom logos, specialized I/O configurations, and pre-installed software).Warranty & After-Sales Service
Reliable support from purchase to long-term operation. HOTUS provides a 3-Year Limited Warranty for industrial PDA, rugged tablets and Mini PCs, together with lifetime technical support to help keep your equipment stable and operational.
Our After-Sales Commitment
3 Years Limited WarrantyThree-year limited warranty for the main units of industrial PDA, rugged tablets and Mini PCs. | Lifetime Technical SupportTechnical consultation, device setup, troubleshooting and system compatibility support throughout the product lifecycle. | Professional Repair & ReplacementQualifying warranty failures are supported with inspection, repair or replacement of defective components according to the policy. |
Warranty Coverage
3-Year Limited Warranty
The warranty applies to new genuine products used under normal commercial or industrial conditions. The warranty period starts from the date the customer receives and accepts the product.
| Product | Main Unit Warranty | Accessories Warranty |
|---|---|---|
| Industrial PDA | 3 Years | 1 Year |
| Rugged Tablet | 3 Years | 1 Year |
| Mini PC | 3 Years | 1 Year |
Core hardware components such as the original hard drive, memory, motherboard, CPU, touch module and rugged sealing components follow the main unit's 3-year warranty. Common consumable accessories such as power adapters, data cables, external cables and standard buttons are covered for 1 year.
