Green Methanol Reformer Tube Skin Temperature Is Critical – Your IR Pyrometer Log Needs An ATEX‑Rated Windows PDA

By HOTUS Technology | May 2026 | 12 min read

The scalable production of green methanol stands as a cornerstone in the global transition toward sustainable marine fuels and carbon-neutral chemical synthesis. This eco-friendly fuel relies heavily on synthesized syngas ($CO + H_2$) generated directly inside high-temperature steam methane reformers. The structural core of these massive reformers consists of hundreds of vertical, catalyst-filled alloy tubes suspended inside a furnace and blasted by intensive burners. To secure stable catalytic conversion without compromising infrastructure safety, the outer tube skin temperature must be continuously contained within a razor-thin thermal margin—typically between 850°C and 920°C. When a localized burner imbalance forces a tube to run hot, the underlying metallurgy undergoes accelerated structural creep, leading to micro-fissures, catastrophic tube ruptures, and expensive emergency facility shutdowns.

To protect these high-performance industrial systems, process plants are systematically upgrading their field infrastructure. Beyond hazardous-area inspection tools, enterprise operations are deploying advanced Rugged Tablets and certified mobile computers to build unbroken digital logs directly from the furnace floor.

Historically, standard plant maintenance has relied on manual, paper-driven collection cycles. Once or twice a week, an operator completes a furnace walk-through with a traditional infrared (IR) pyrometer gun, points it through a narrow sight port at the glowing alloy, reads the transient value, and notes the measurement onto a clipboard log sheet. This approach is prone to observation errors, and the data remains trapped on paper rather than being fed into analytical software. Consequently, an isolated tube steadily climbing from a baseline of 880°C to a dangerous 905°C over six months remains completely hidden from maintenance managers until the metal structural integrity gives way.

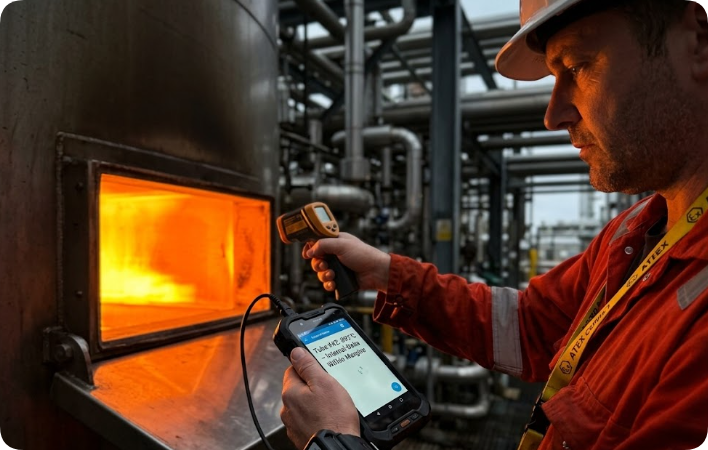

The deployment of the Hotus SH5‑W Windows rugged handheld—boasting stringent ATEX Zone 1 certification for explosive atmospheres—fundamentally re-engineers this field workflow. The drop-tested SH5-W pairs over a secure, localized Bluetooth connection with an industrial-grade digital IR pyrometer. The modernized inspection sequence is built around speed and data integrity:

• The operator scans an ultra-rugged high-frequency RFID tag positioned at the inspection window to instantly verify the exact tube matrix coordinate.
• The field worker pulls the pyrometer trigger, capturing a precision thermal reading through the sight port.
• The SH5-W immediately saves the verified temperature, precise timestamp, logged operator ID, and ambient condition metrics into a secure database.

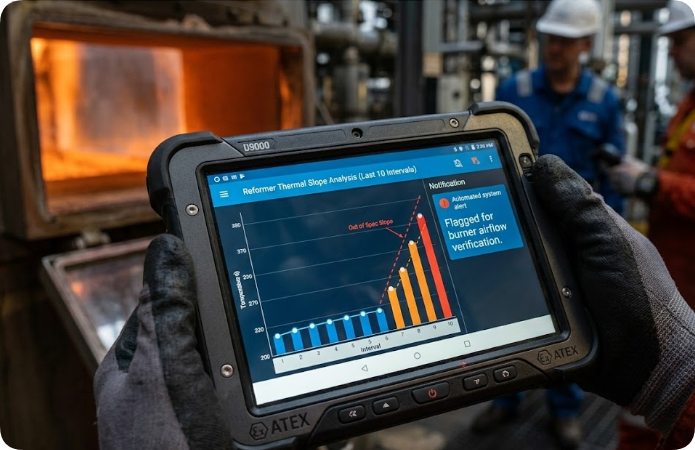

The handheld user interface renders an intuitive, live thermal map of the reformer core, color-coded by temperature severity: nominal tubes display green, minor thermal variances register as yellow watch items, and out-of-spec overheating triggers immediate red warnings. Any individual alloy assembly showing an average deviation exceeding 5°C relative to its adjacent cluster is flagged for quick burner trim adjustment. Over weeks of monitoring, the SH5-W aggregates these records to map historical creep behavior, forecasting asset lifespans before physical boundaries are breached.

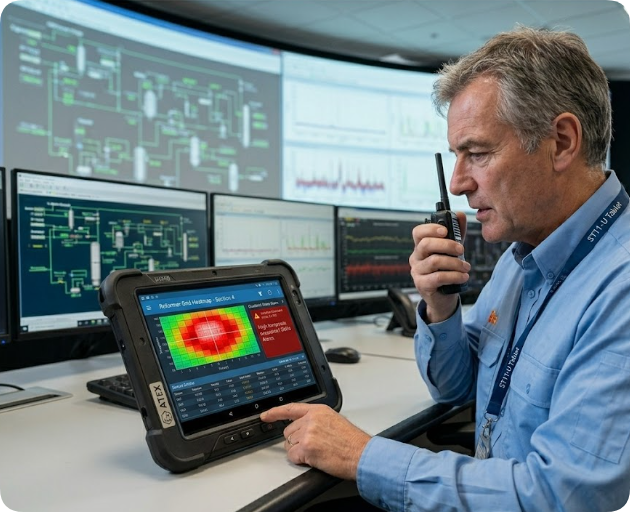

At the supervisory layer, the large-format Hotus ST11‑U 10.1″ Windows rugged tablet serves as a central data aggregation node for plant engineers. This high-resolution terminal compiles automated telemetry from multiple reformer units simultaneously, displaying an enterprise dashboard focused on overall tube health. It isolates lines displaying abnormal heating patterns, pointing directly to early burner misalignment or localized catalyst settling.

An industrial green methanol refinery maintaining an annual output capacity of 200,000 tonnes integrated this predictive framework by deploying twenty-five SH5-W pyrometer diagnostic kits, thirty high-speed U9000 industrial PDAs, and fifteen ST11-U supervisor control tablets. Within the first nine months of continuous operations, the tracking matrix identified a subtle, persistent thermal elevation concentrated across a five-tube cluster managed by an automated burner assembly. Field operators adjusted the localized fuel-to-air balance, returning the alloy skin temperatures safely back to nominal parameters. This rapid correction averted a catastrophic thermal rupture that engineers estimated would have caused over $2 million in emergency repair costs and lost product output, while safely extending the reformer's active campaign window by 18 months.

Reformer tube failure is a slow, compounding mechanical process that finishes with a sudden structural break. Paper logbooks lack the mathematical precision needed to identify a gradual 0.5°C weekly creep trend. A certified, ATEX-rated Windows PDA utilizing integrated RFID identification and automated graphing can pinpoint these patterns instantly. The SH5-W, U9000, and ST11-U deliver the flameproof, high-reliability data ecosystem that advanced methanol refining facilities require to protect their bottom line. Protect your high-pressure furnace infrastructure against unexpected thermal stress failures.
