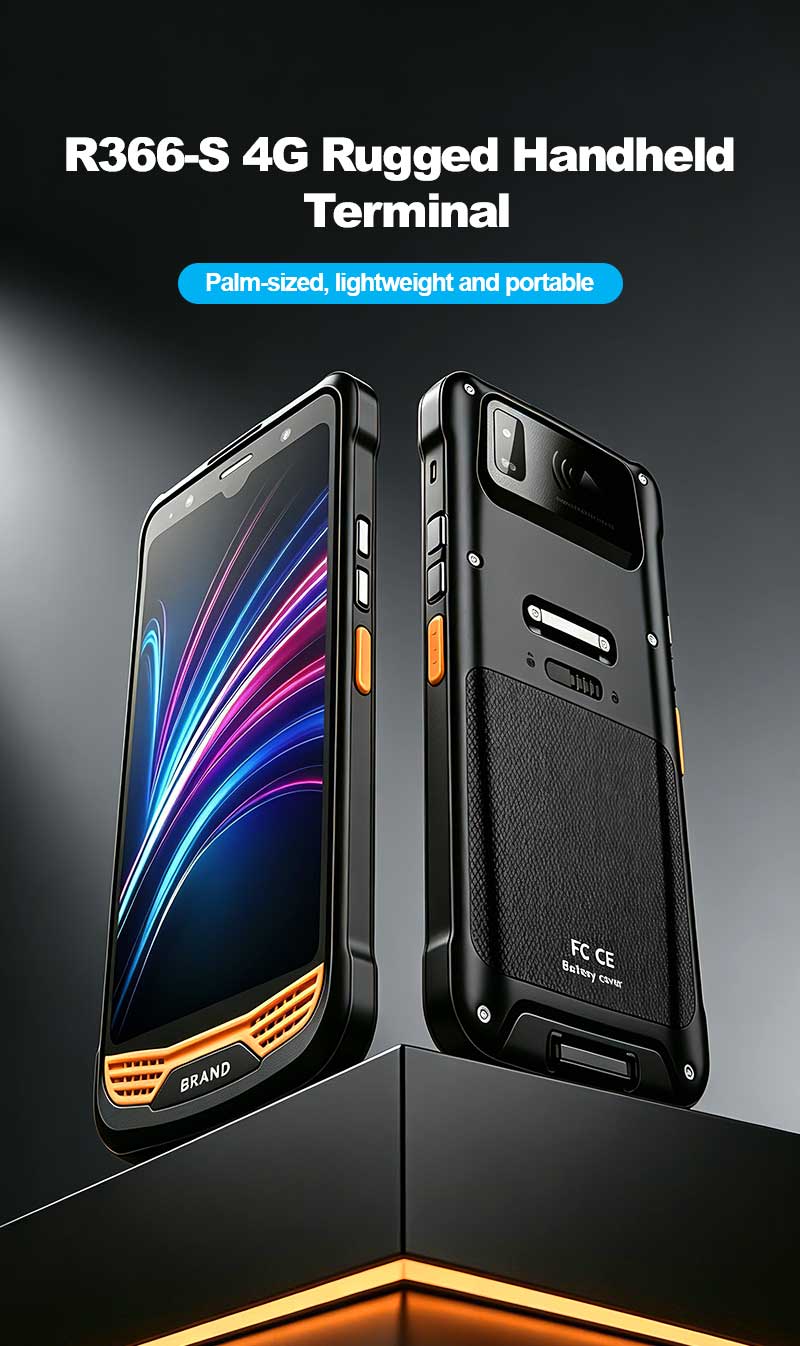

R366-S Thin 5.5-inch Industrial PDA | Qualcomm Octa-core with NFC, 2D Barcode & PSAM

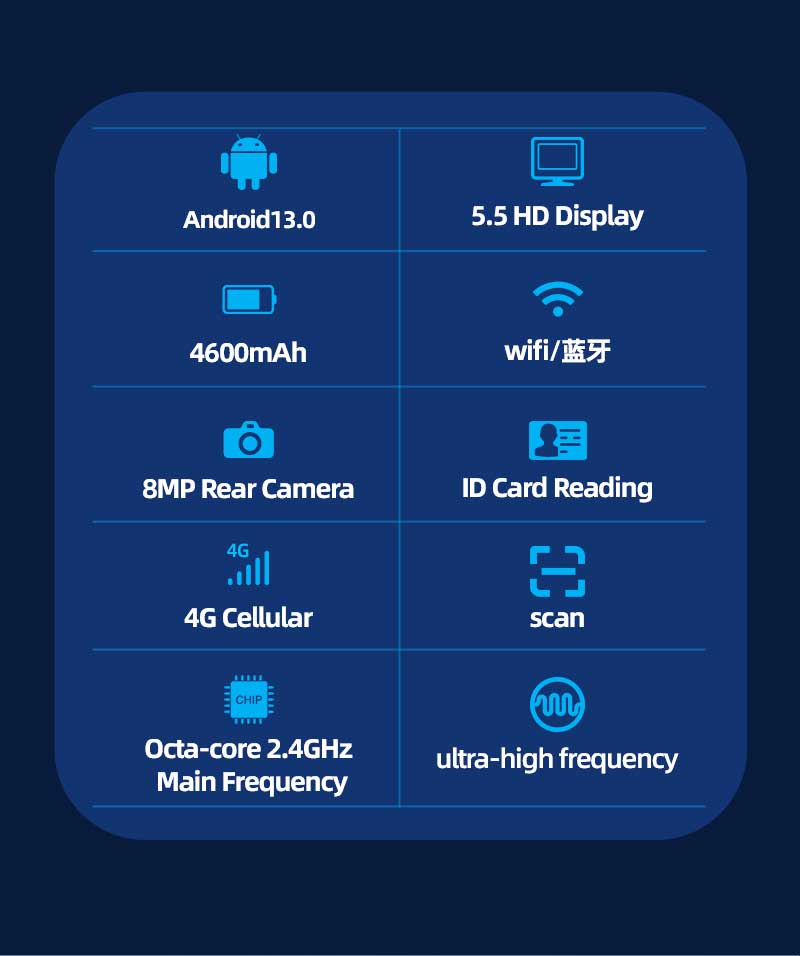

Key Specifications At a Glance

Two Key Highlights

The R366-S Thin brings enterprise-grade data capture to a slim, lightweight form factor. Powered by a Qualcomm SM6225 octa-core processor (2.4GHz) and Android 13, it delivers smartphone-like speed with industrial reliability. At just 17.6mm thick and under 300g, it is designed for mobile workers who need barcode scanning, NFC tap-and-go, and secure PSAM transactions without carrying a bulky device. The optional charging cradle makes fleet management easy: charge the main unit and a spare battery simultaneously.

Performance and Software Foundation

The Qualcomm SM6225 platform, built on an 11nm process, balances performance and power efficiency. Eight Kryo cores (four 2.4GHz performance cores, four efficiency cores) handle real-time inventory lookups, background encryption, and multitasking without lag. Android 13 brings enterprise-friendly features: granular permission controls, work profiles, and long-term security updates. Our firmware stays close to AOSP, so existing MDM solutions (SOTI, VMware Workspace ONE, Samsung Knox) deploy without modification. Developers can use standard Android APIs for the optional scanners, NFC, and PSAM modules.

Wireless and Connectivity for Any Environment

The R366-S Thin includes dual-band Wi-Fi (2.4GHz/5GHz) with 802.11ax (Wi-Fi 6) readiness, delivering higher throughput and better performance in congested warehouse or office networks. Bluetooth 5.1 connects to wireless printers, headsets, or external ring scanners. The 4G LTE modem comes in two variants: CN version for China/India (bands B1/B3/B5/B8, TDD B34/B38/B39/B40/B41) and EAU version for Europe, Middle East, Africa, Korea, Thailand, and Australia (additional bands B7/B20/B28). Fallback to 3G WCDMA and 2G GSM ensures connectivity in remote areas. Multi-constellation GNSS (GPS, GLONASS, BeiDou) provides location accuracy down to 2 meters outdoors.

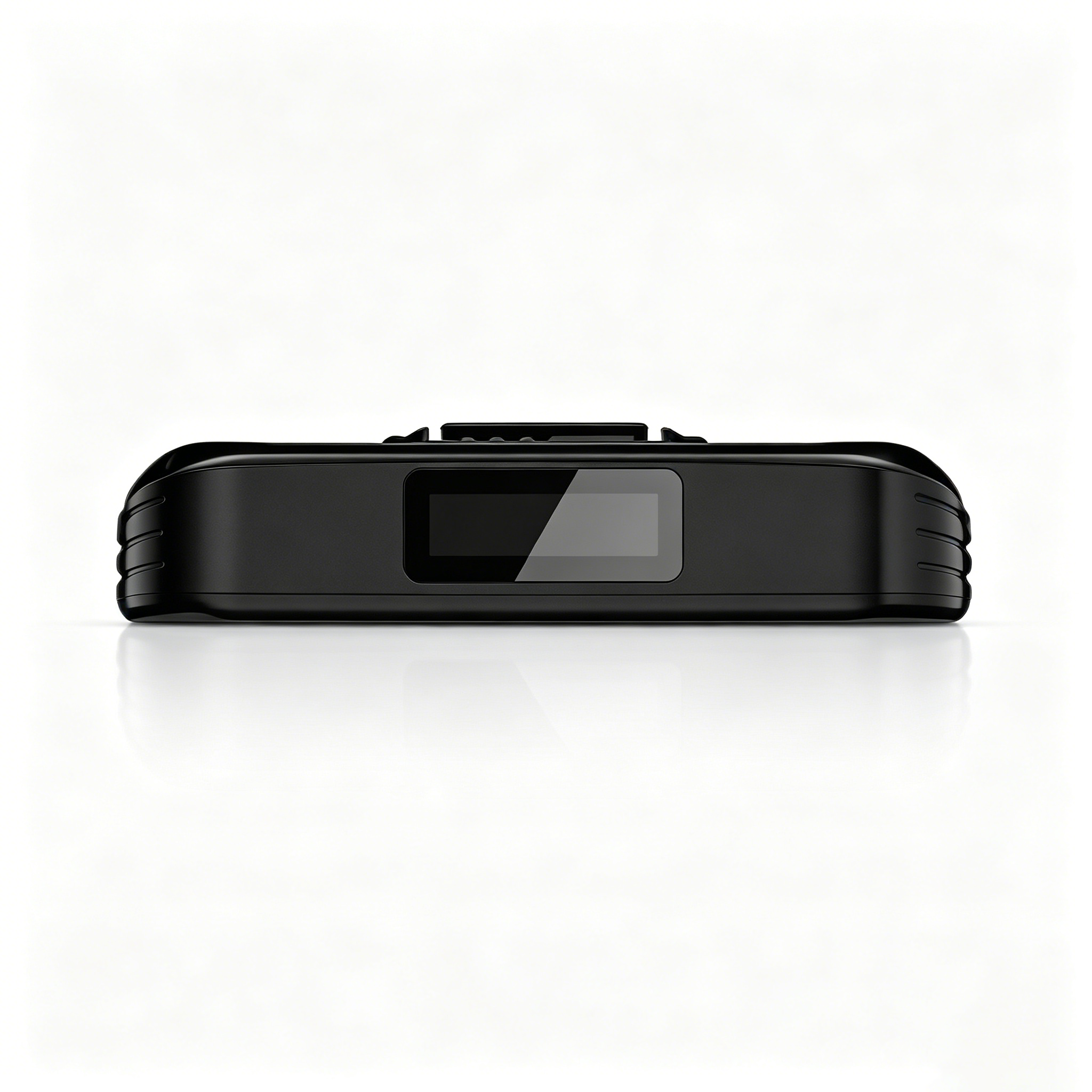

2D Barcode Scanning: Down to 3mil

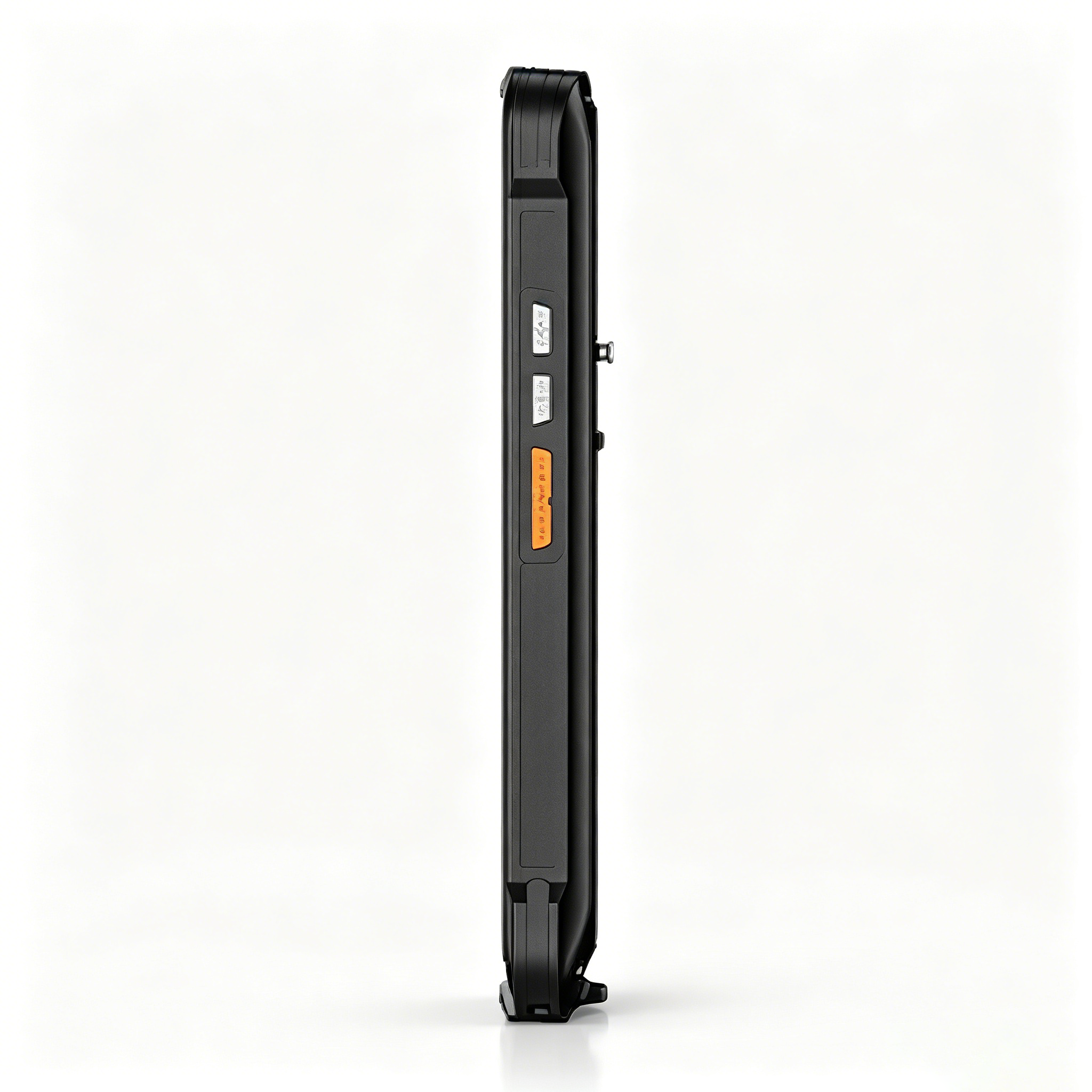

The optional high-performance 2D imager captures standard and high-density barcodes with accuracy down to 3mil. This includes QR codes, Data Matrix, PDF417, and traditional 1D symbologies (Code 128, EAN, UPC, etc.). The dual side-mounted SCAN buttons can be pressed with either thumb, reducing hand fatigue during long scanning sessions. Vibration feedback and the tri-color breathing LED provide clear scan confirmation even in noisy environments. For warehouses, retail, or logistics, the scanner reads damaged or poorly printed codes that cheaper engines miss.

NFC: Contactless Authentication and Data Exchange

The NFC module (13.56MHz) supports ISO14443A/B, ISO15693, and common tag types including M1 (S50, S70) and CPU tags. Typical use cases include employee badge authentication for time attendance, contactless access control, NFC-enabled inventory checks, and pairing with NFC tags to trigger workflows. The read range of 2–3cm ensures secure tap interactions without accidental reads.

PSAM Slots for Secure Payments and Identity

For applications requiring high security – such as electronic toll collection, government ID verification, payment terminals, or vending machines – the R366-S Thin can be equipped with up to 2 PSAM slots (ISO/IEC 7816-1/2/3/4). These slots run independently, allowing simultaneous operation of multiple secure applications without swapping cards. This makes the device suitable for financial service providers, public safety agencies, and access control integrators.

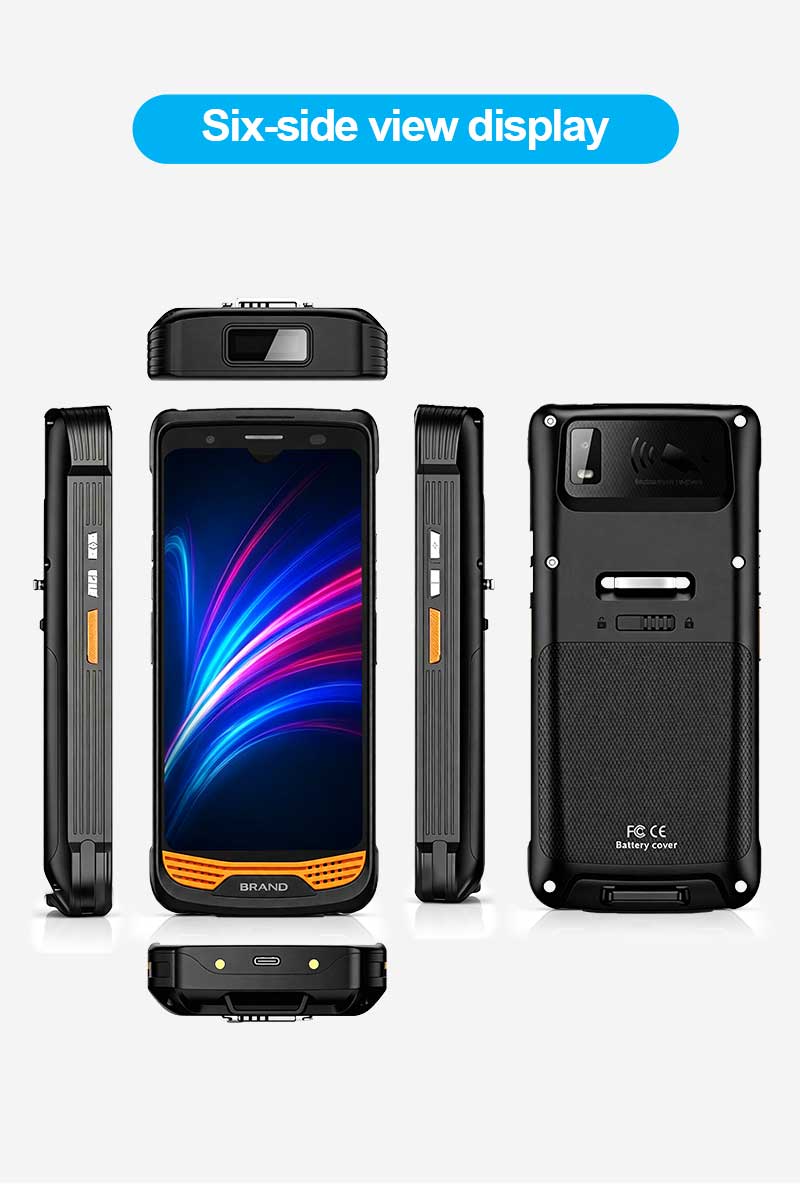

Slim and Rugged Design

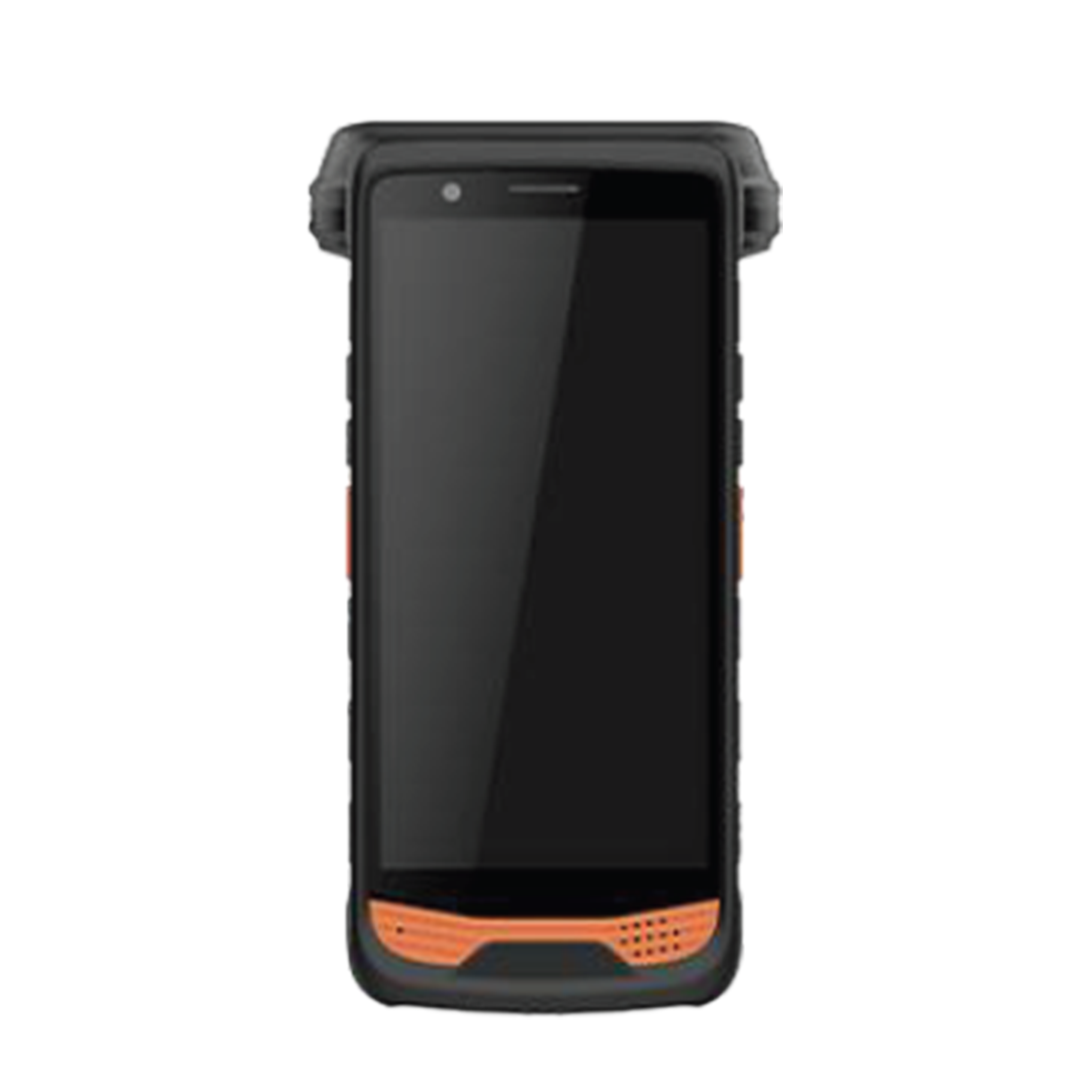

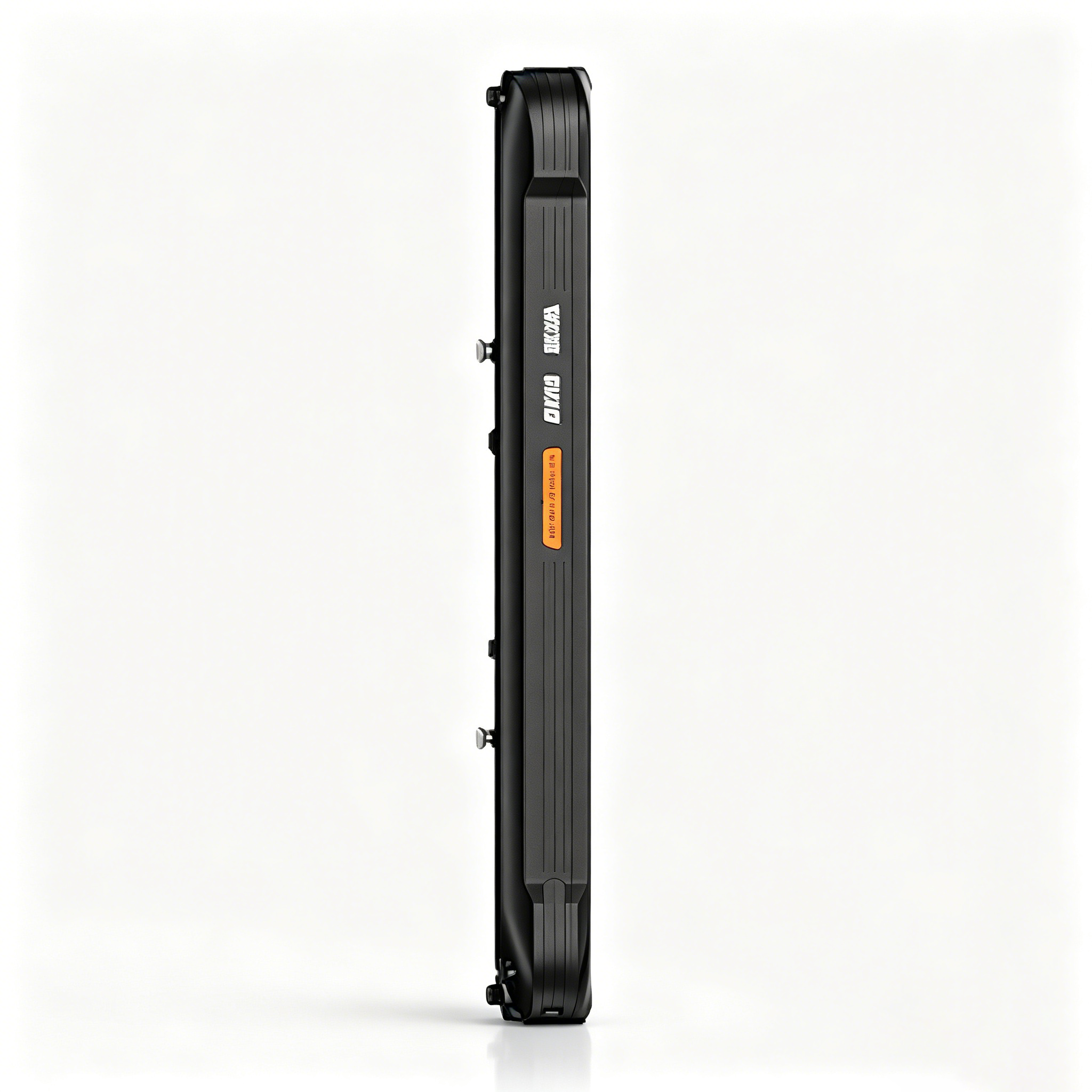

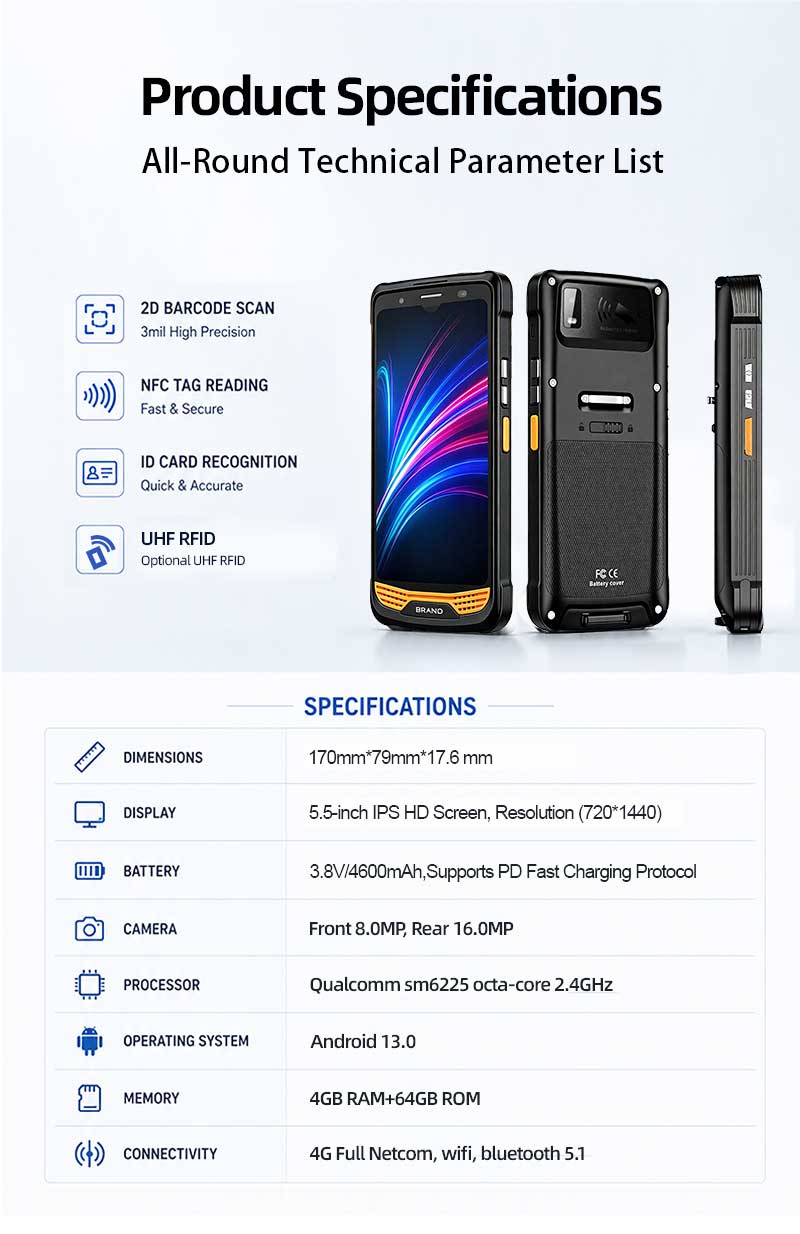

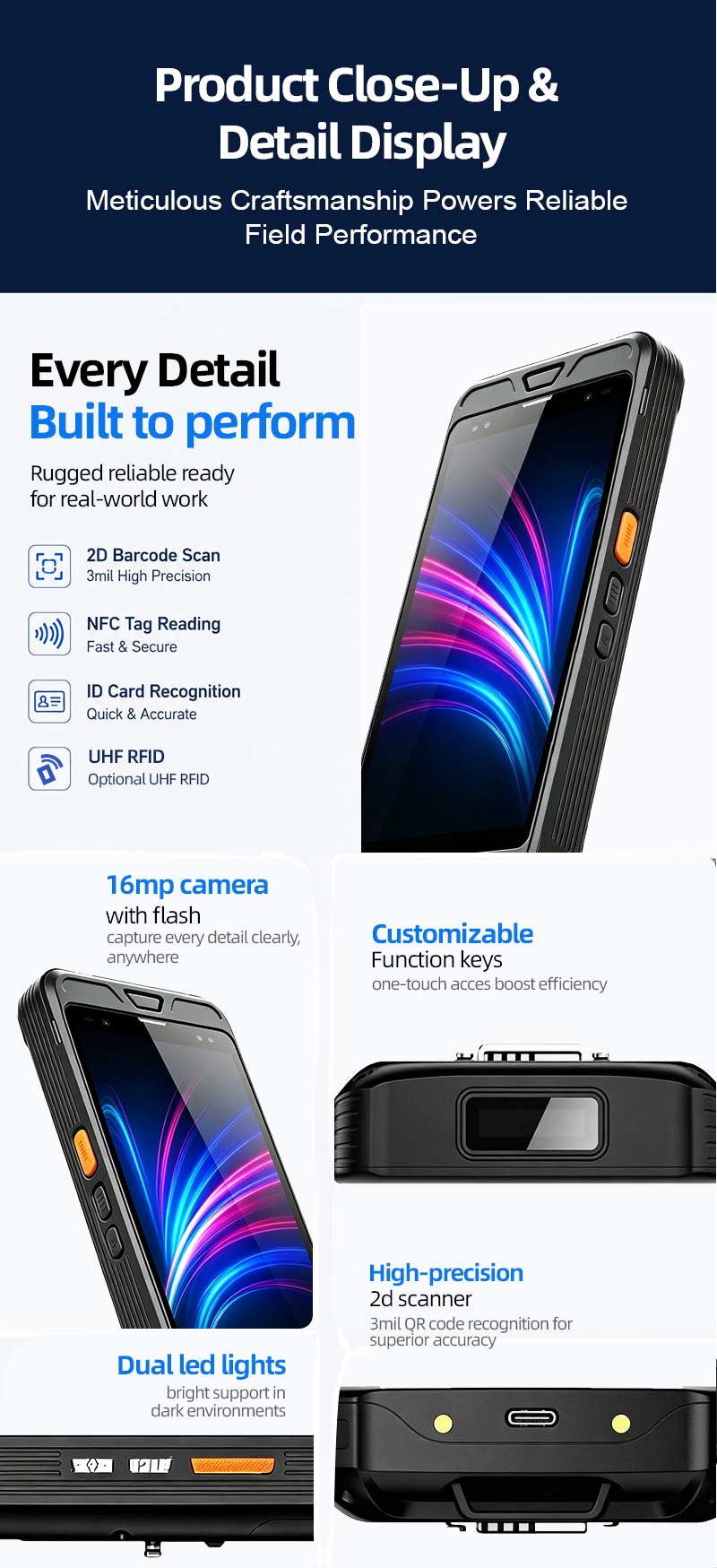

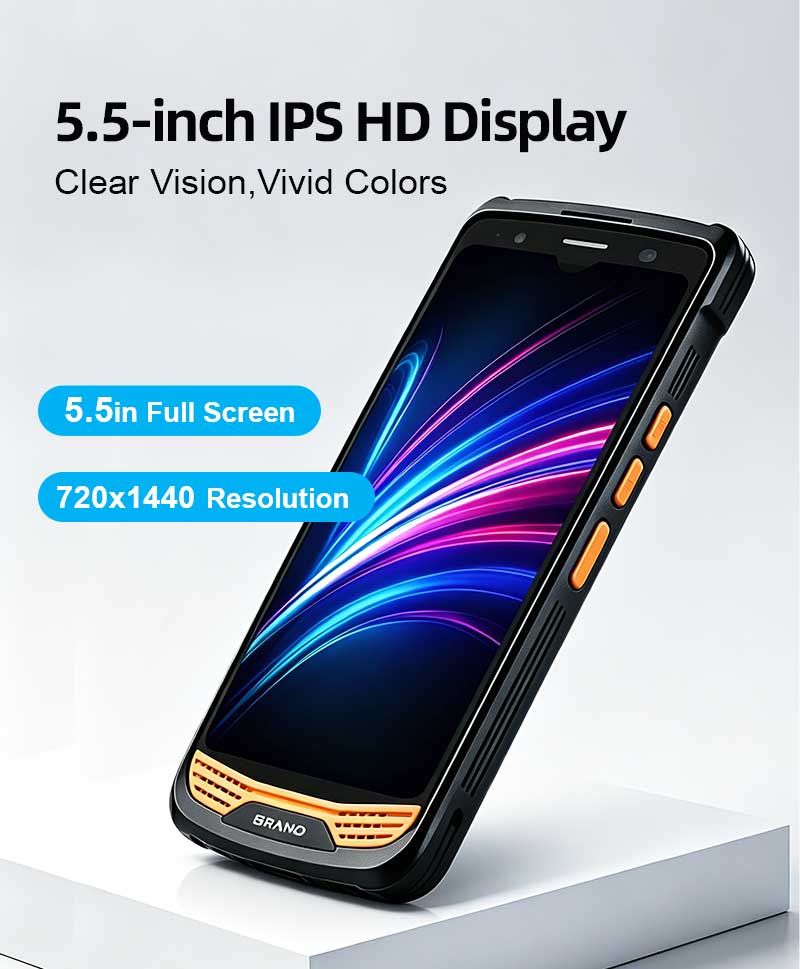

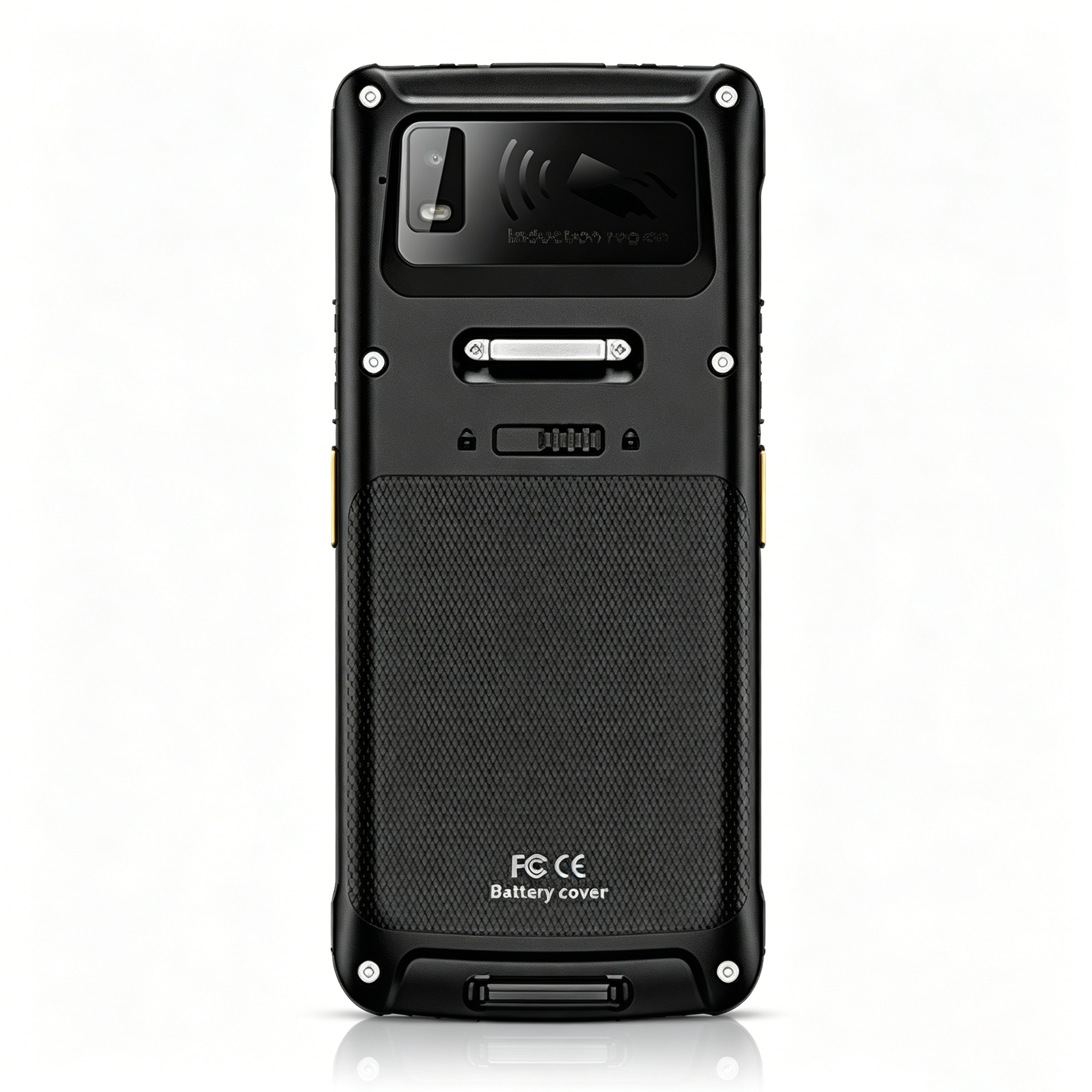

At 170mm × 79mm × 17.6mm and under 300g, the R366-S Thin is pocketable and comfortable for all-day wear. The 5.5-inch IPS HD+ display (720×1440) is readable under direct sunlight, and multi-touch works with industrial gloves. The 4600mAh detachable battery supports hot-swapping – ｒｅｐｌａｃｅ a depleted pack without rebooting. Operating temperature from -10°C to 50°C and 95% humidity tolerance covers cold storage, outdoor loading docks, and humid environments. The device also includes a tri-color breathing light and vibration motor for silent notifications.

Camera and Audio for Documentation

The rear 16MP autofocus camera with flash captures proof-of-delivery photos, damage records, or shelf conditions. An optional front 8MP camera enables video calls for remote troubleshooting – reducing costly field service dispatches. Dual speakers, a microphone, and voice call support turn the device into a communication tool, not just a scanner.

Charging Cradle for Fleet Efficiency

The optional charging cradle is a thoughtful addition for organizations deploying multiple units. It charges the main device and an extra spare battery simultaneously. This means workers can swap batteries at the start of a shift without waiting for individual devices to charge. For shift-based operations, the cradle ensures that a fully charged spare battery is always ready.

Typical Deployments

Site Attendance & Access Control: Use NFC to log employee check-in/out, with PSAM for encrypted credential verification. The slim design fits easily in a pocket, and the 4600mAh battery lasts multiple shifts.
   Factory Warehouse Management: Scan barcodes on incoming parts, update inventory in real time via Wi-Fi 6, and capture damage photos with the 16MP camera. Lightweight design reduces arm fatigue.
   Logistics & Last-Mile Delivery: Drivers can scan package barcodes, take delivery proof photos, and communicate via voice calls – all from a device under 300g. Optional charging cradle keeps spare batteries ready at the depot.
   Retail Store Management: Perform cycle counts, check prices, process returns, and manage loyalty cards via NFC. The 5.5-inch display is large enough for product lookup but small enough for one-handed use.
   Field Service & Inspections: Capture equipment barcodes, log GPS coordinates, and document findings with the rear camera. Android 13 allows custom inspection apps to run smoothly.

Service & Support

★ Sample Evaluation: Request a test unit to validate scanning accuracy, NFC performance, and battery life in your specific environment.
   ★ OEM Customization: Logo printing, custom Android build, pre-loaded apps, and regional frequency tuning.
   ★ ODM Development: From adding extra PSAM slots to redesigning the battery or display, our engineering team delivers tailor-made solutions.
   ★ Bulk Orders: Standard configurations ship within 7–10 working days. Volume pricing, long-term supply agreements, and spare battery kits available.
   ★ Certifications: CE, FCC, RoHS compliant. Ready for global distribution.

For detailed specifications, volume pricing, or to request a custom configuration with specific optional modules, please Contact Us directly – our engineers provide factory-direct support, SDK documentation, and sample loaner units for qualified projects.

Why Slim Industrial PDAs Are the Future of Field Data Collection – R366-S Thin Deep Dive

For years, industrial PDAs were bulky, heavy, and uncomfortable for all-day use. Workers often resisted carrying them, leading to data collection gaps and reliance on personal phones with limited scanning capabilities. The R366-S Thin changes this by delivering enterprise-grade features – 2D scanning, NFC, PSAM, 4G, and Android 13 – in a device that weighs less than 300g and is just 17.6mm thick. This article explores why slim form factors are becoming the standard for mobile workers.

1. Ergonomic Benefits Directly Impact Productivity

A study of warehouse workers found that each additional 100g of device weight increases reported arm fatigue by 18% over an 8-hour shift. The R366-S Thin, at under 300g, reduces fatigue compared to typical 600g+ industrial PDAs. Less fatigue translates to faster scanning speeds and fewer errors. In retail environments, staff are more likely to carry the device on the sales floor, enabling real-time inventory lookups and price checks that would otherwise require trips to a terminal.

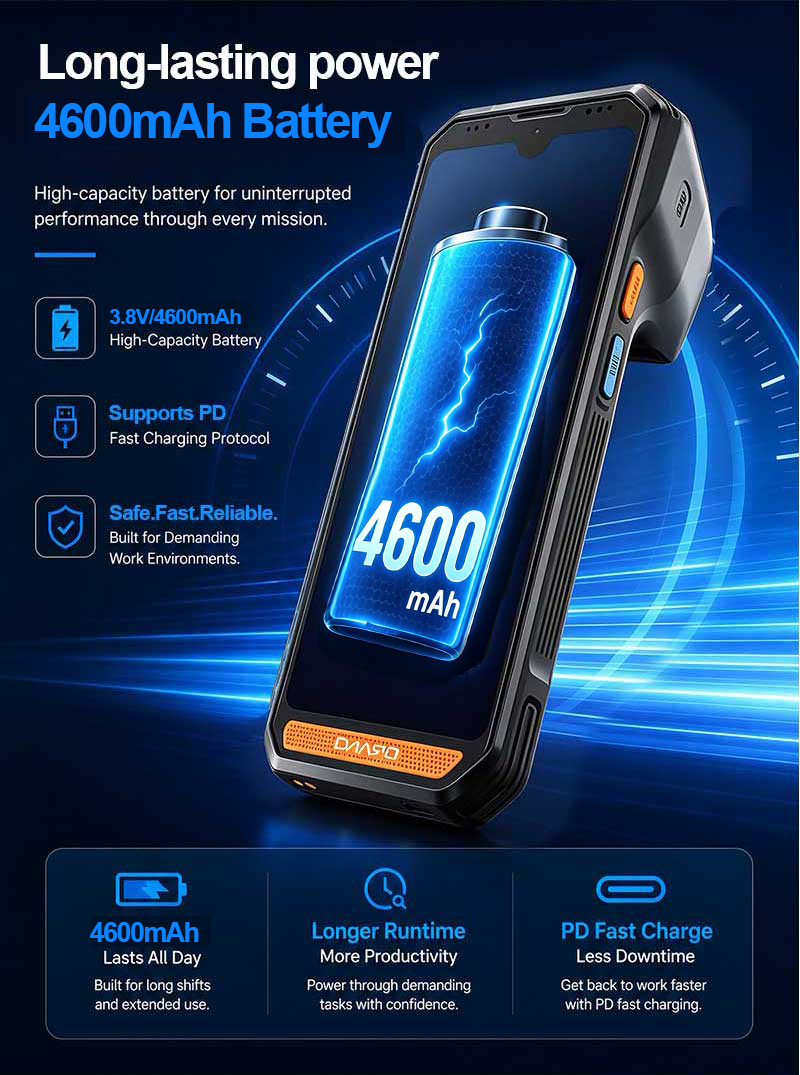

2. 4600mAh Battery + Hot-Swap = Zero Downtime

Despite the slim profile, the R366-S Thin houses a 4600mAh detachable battery. In mixed-use scenarios (scanning, 4G transmission, screen on), this provides 10–12 hours of operation. When batteries run low, hot-swap capability allows replacing the pack without shutting down the device – critical for applications where uptime matters. The optional charging cradle charges both the main unit and a spare battery simultaneously, so a fully charged spare is always ready.

3. Modular Optionality: Pay Only for What You Need

Not every deployment requires all optional features. The R366-S Thin allows customers to choose exactly the modules needed: 2D imager (for barcode-heavy workflows), NFC (for access control or contactless payments), and PSAM (for secure government or financial applications). This à la carte approach lowers the entry cost and avoids paying for unused hardware. And because the device is built on Android 13, adding features later is a matter of installing the module and updating the software.

4. Real-World ROI Calculations

Retail Chain (150 stores): Replacing dedicated barcode scanners and NFC readers with R366-S Thin units reduced hardware costs by $120 per location and cut training time from 4 hours to 90 minutes. Annual savings exceeded $25,000.
   Warehouse Operator (50 workers): Switching from a 650g PDA to the 300g R366-S Thin reduced reported shoulder strain by 40% and increased scanning throughput by 12% in the afternoon shift, directly impacting order fulfillment rates.

The R366-S Thin proves that industrial PDAs do not have to be heavy or bulky. With a slim 17.6mm profile, under 300g weight, and optional 2D/NFC/PSAM modules, it fits the modern mobile worker's needs. Sample units available for testing. OEM/ODM customization ready. Contact us for a demo unit or to discuss a tailored configuration for your industry.
