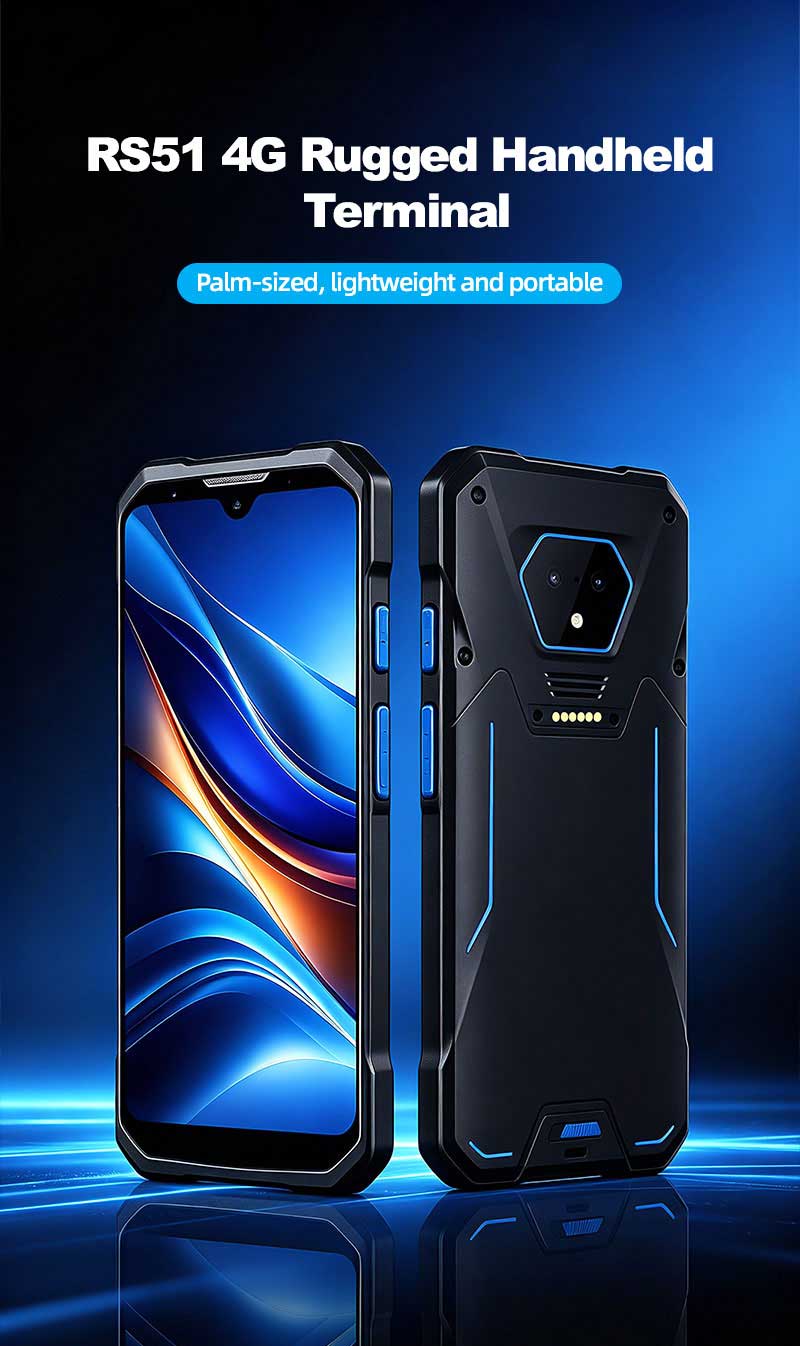

RS51 4G Rugged Handheld Terminal | 6.3" FHD+ | Qualcomm SM6225 Octa-core 2.4GHz | Android 13
Two Key Highlights
Independent Beidou RTK – Centimeter-Level Accuracy on 4G
The RS51 offers an optional independent Beidou positioning module with RTK (Real-Time Kinematic) support, delivering horizontal accuracy of 2–5cm without relying on external GNSS receivers. This is a rare feature in 4G rugged terminals, making it ideal for land surveying, precision agriculture, asset mapping, and autonomous yard vehicle guidance – all over a reliable 4G LTE network.
Qualcomm SM6225 + Android 13 + IP67 Rugged
Powered by Qualcomm's 11nm octa-core processor (2.4GHz) and Android 13, the RS51 handles demanding inventory apps, real-time data sync, and multitasking with ease. IP67 dust/water protection and 1.2m drop tolerance ensure it survives daily abuse in warehouses, construction sites, and outdoor field operations.
The RS51 is a versatile 4G rugged handheld terminal built for organizations that need reliable data capture, accurate positioning, and enterprise-grade durability without the higher cost of 5G. Its 6.3-inch FHD+ display provides ample screen real estate for inventory management, GIS mapping, or field service apps. The detachable 5000mAh battery supports hot-swapping, and the optional 2D barcode scanner (≥3mil), NFC, and independent Beidou RTK make it adaptable to a wide range of verticals – from logistics and retail to public safety and utilities.
Performance: Qualcomm SM6225 Octa-core 2.4GHz + Android 13
The Qualcomm SM6225 platform, fabricated on an 11nm process, delivers a balanced mix of performance and power efficiency. Its eight Kryo cores (four performance cores at 2.4GHz, four efficiency cores) handle real-time barcode decoding, background data transmission over 4G, and GNSS processing without lag. Android 13 brings enterprise-friendly features: granular app permissions, work profiles, and long-term security updates. Our firmware stays close to AOSP, so existing MDM solutions (SOTI, VMware Workspace ONE, Samsung Knox) deploy without modification. The 4GB RAM and 64GB storage (expandable to 256GB via TF) provide sufficient headroom for most warehouse, retail, and field apps.
4G LTE Connectivity with Global Band Support

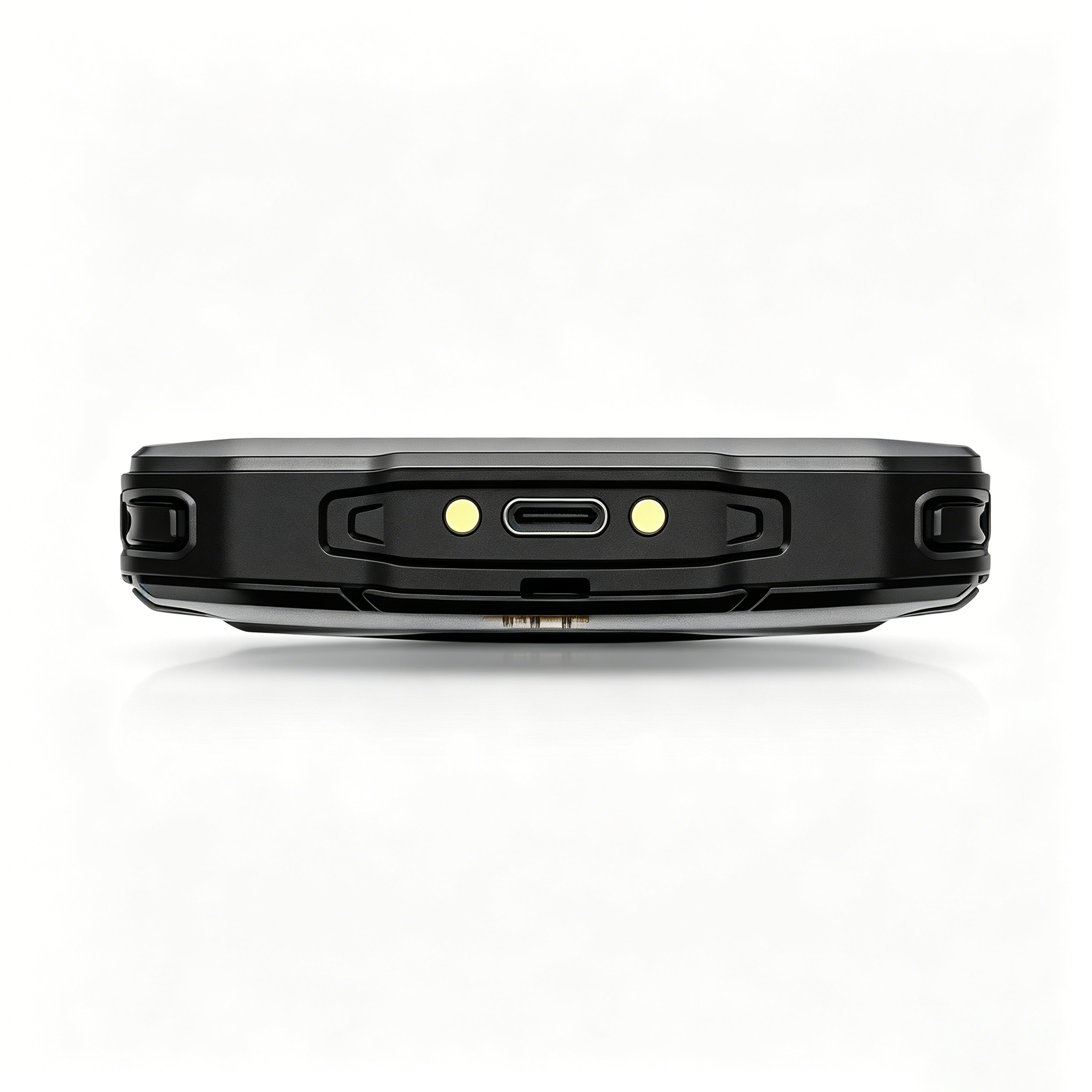

The RS51 is available in two regional variants: CN version optimized for China and India (FDD: B1/B3/B5/B8; TDD: B34/B38/B39/B40/B41), and EAU version covering Europe, the Middle East, Africa, Korea, Thailand, and Australia (additional bands B7/B20/B28). Fallback to 3G WCDMA and 2G GSM ensures connectivity in remote areas. Dual-band Wi-Fi (2.4/5GHz) with 802.11ax (Wi-Fi 6) readiness provides fast roaming in dense warehouse networks. Bluetooth 5.1 connects to wireless printers, headsets, or external scanners. The 2-pin Pogo Pin allows connection to a charging cradle or vehicle dock.
Positioning: GPS + Glonass + Galileo + Independent Beidou RTK
Standard GNSS includes GPS, Glonass, and Galileo, providing location accuracy of 2–3 meters. For applications requiring centimeter-level precision, the RS51 offers an optional independent Beidou module with RTK (Real-Time Kinematic). This module operates separately from the main GNSS, delivering horizontal accuracy of 2–5cm. It can receive RTK correction data over 4G from network RTK services or a local base station. Typical use cases include: precision land surveying, construction staking, utility pole mapping, and autonomous vehicle guidance in yards. The independent design ensures stable performance even when the main processor is busy.

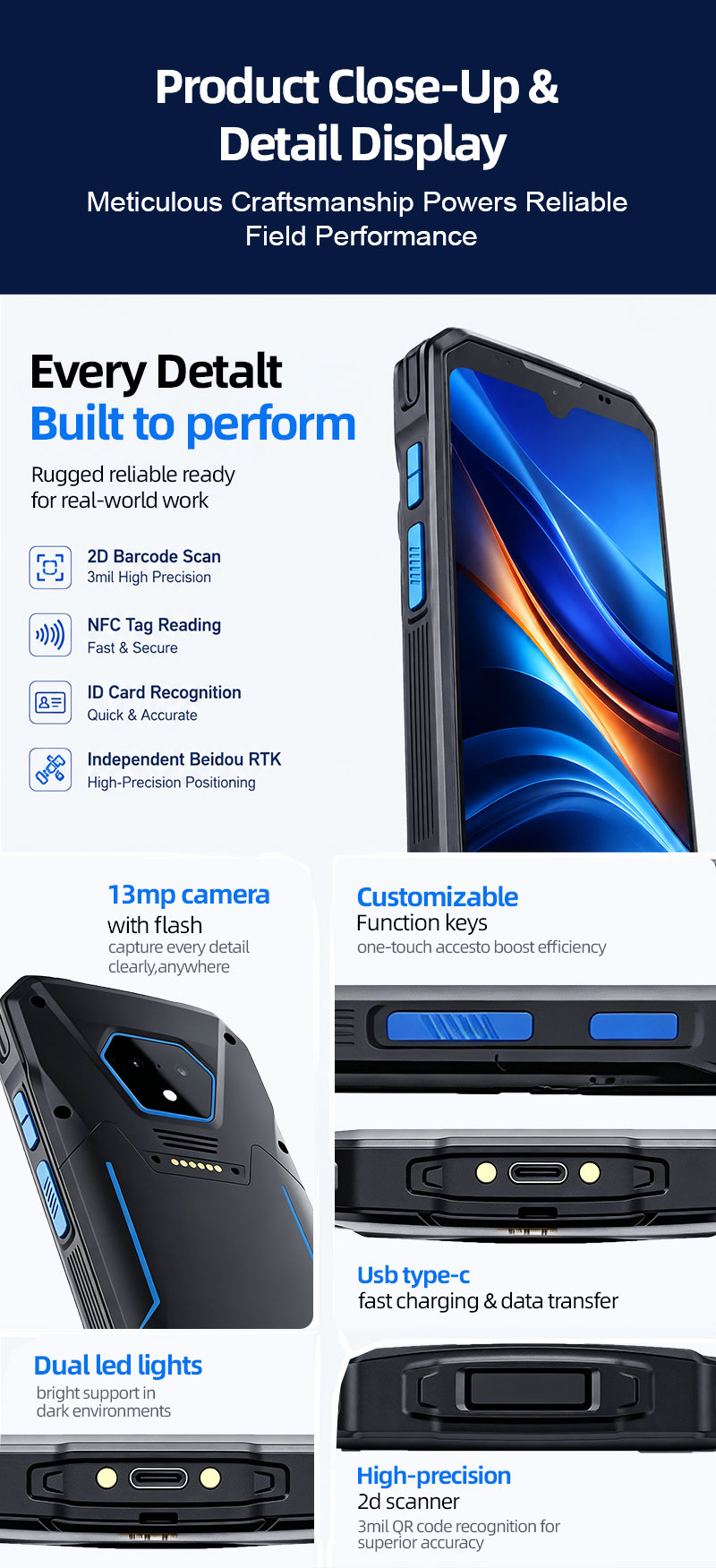

Data Capture: 2D Barcode Scanning and NFC

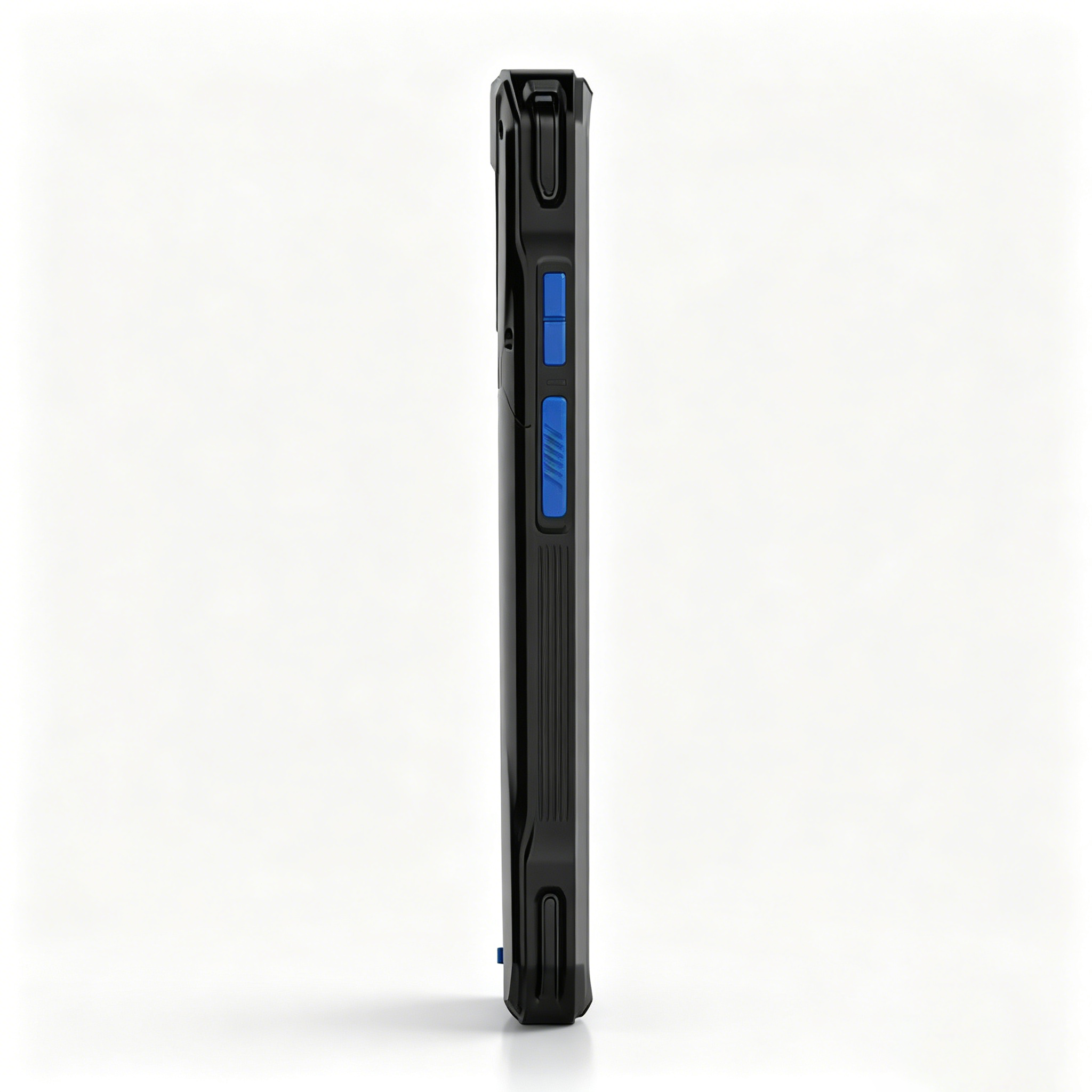

The optional high-performance 2D imager reads barcodes as small as 3mil – including QR codes, Data Matrix, PDF417, and traditional 1D symbologies (Code 128, EAN-13, UPC-A). Dual side-mounted SCAN buttons can be pressed with either thumb, reducing hand fatigue. Vibration feedback and the tri-color breathing LED provide clear scan confirmation even in noisy environments. The optional NFC module (13.56MHz) supports ISO14443A/B, ISO15693, M1 (S50, S70), and CPU tags. It is ideal for contactless payments, employee badge authentication, and NFC-triggered workflows with a read range of 2–3cm.
Rugged Design: IP67, 1.2m Drop, All-Weather Operation

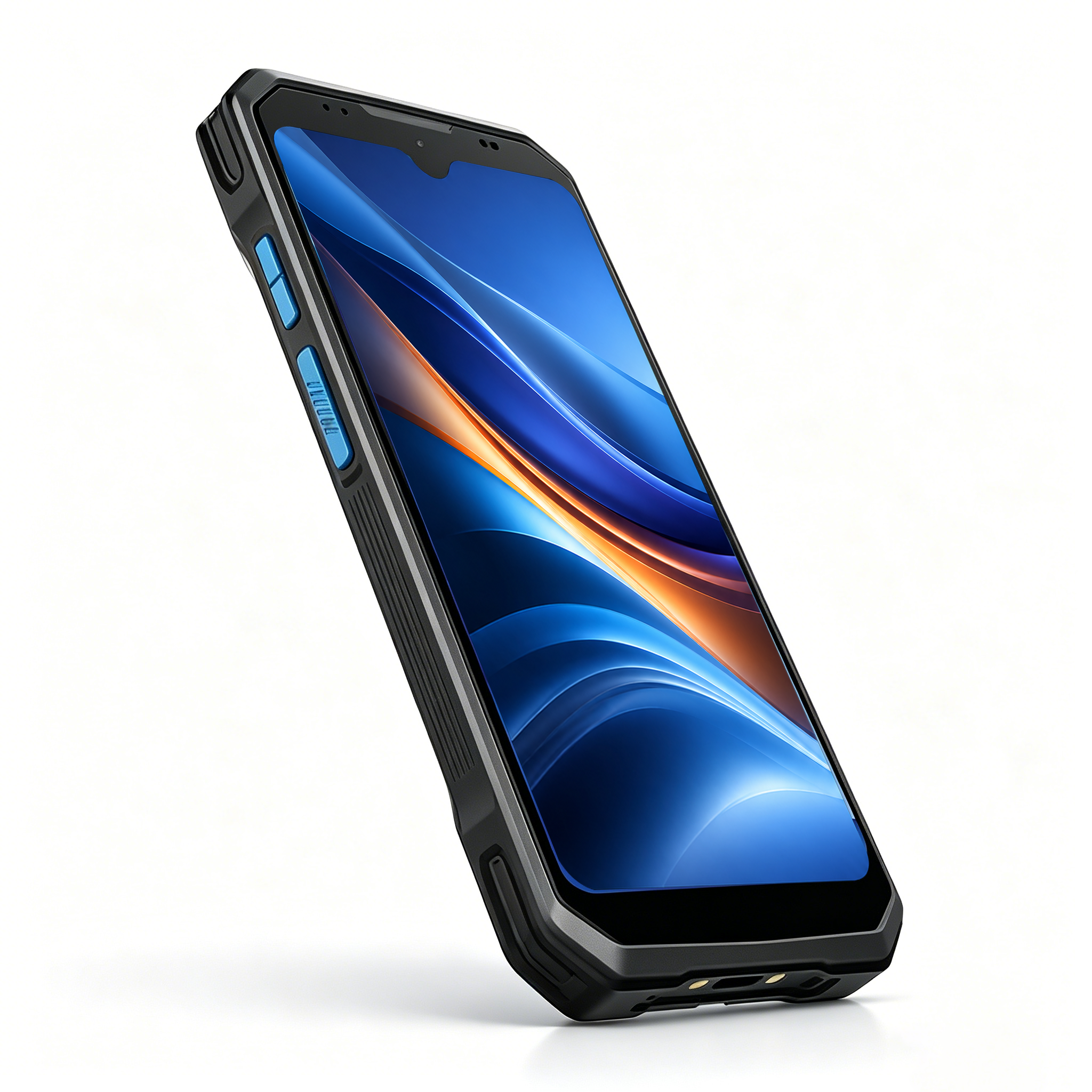

The RS51 is sealed to IP67 standards – dust-tight and waterproof up to 1 meter for 30 minutes. It survives drops from 1.2 meters onto concrete, making it suitable for warehouse floors, construction sites, and outdoor field use. Operating temperature from -10°C to 50°C and 95% humidity coverage means it works in cold storage, hot deserts, and tropical environments. The 6.3-inch FHD+ display (1080×2340) is readable under direct sunlight, and the 5-point G+F+F capacitive touch screen works with industrial gloves. The detachable 5000mAh battery supports hot-swapping – ｒｅｐｌａｃｅ a depleted pack without rebooting the device.
Camera and Audio for Documentation

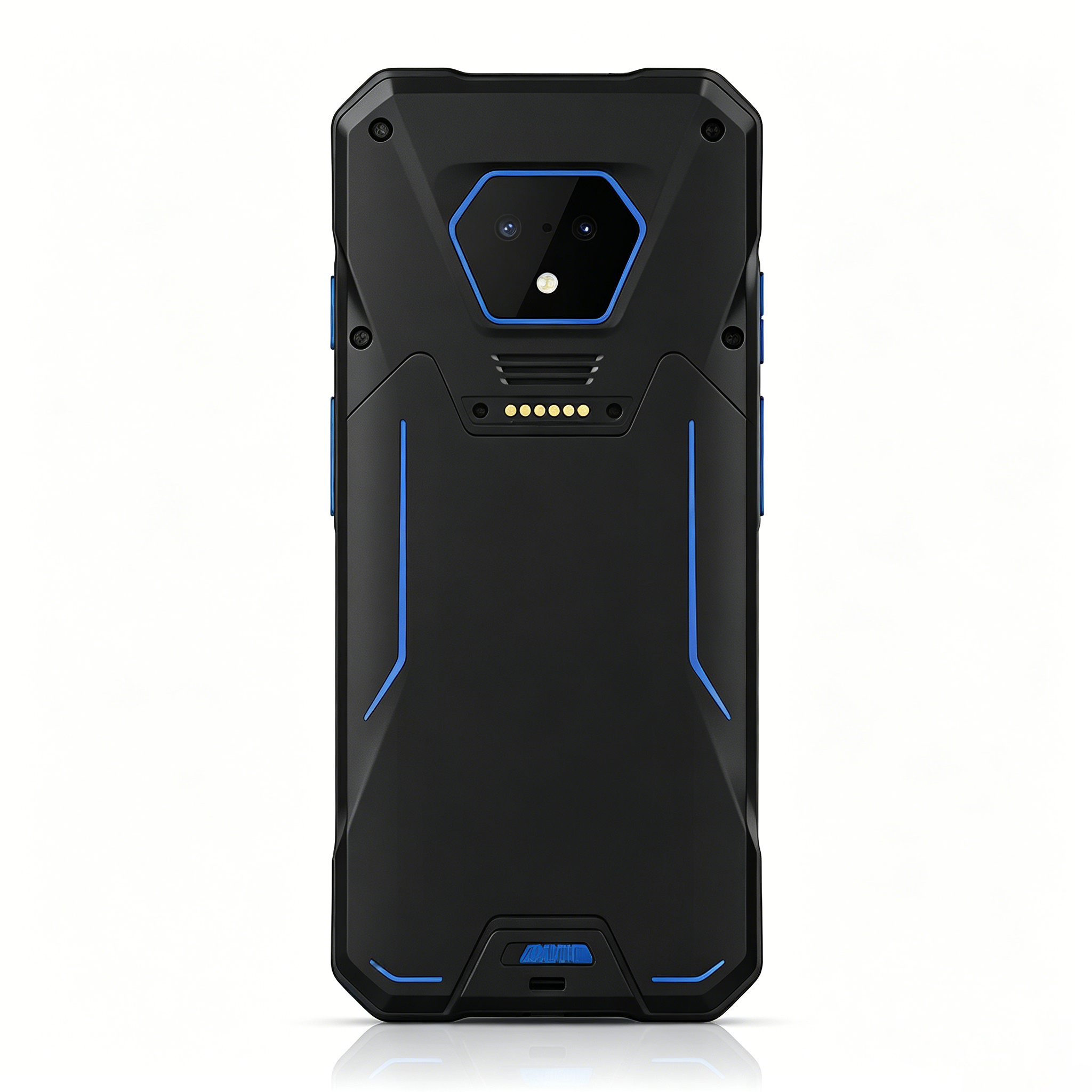

The rear 16MP autofocus camera with LED flash captures proof-of-delivery photos, damage records, or shelf conditions. The front 8MP camera enables video calls for remote troubleshooting – reducing costly field service dispatches. The loudspeaker, microphone, and voice call support turn the device into a communication tool, not just a scanner. An Fn key can be customized for quick access to frequently used functions (e.g., toggling flashlight or launching the scanner).
Typical Deployments
Warehouse & Inventory Management: Use the 2D imager to scan barcodes on incoming shipments and update stock levels in real time via 4G/Wi-Fi. The large 6.3-inch display makes it easy to verify item details. RTK Beidou can track forklift positions with centimeter accuracy.
Retail Store Operations: Perform cycle counts, check prices, process returns, and manage loyalty cards via NFC. IP67 protection survives spills and dust.
Field Asset Inspection & Survey: Utility workers inspect poles or pipelines, capture geo-tagged photos with the 16MP camera, and record GPS coordinates. RTK Beidou provides sub-5cm accuracy for asset mapping.
Logistics & Last-Mile Delivery: Drivers scan package barcodes, take delivery proof photos, and communicate via voice calls. The 5000mAh battery lasts a full route, and hot-swap keeps operations running.
Public Safety & Emergency Response: First responders benefit from reliable 4G and accurate positioning. The bright FHD+ screen displays maps and incident details clearly in direct sunlight.
Service & Support
★ Sample Evaluation: Request a test unit to verify scanning speed, RTK accuracy, and battery life under your workload.
★ OEM Customization: Logo printing, custom Android build, pre-loaded apps, and region-specific 4G band tuning.
★ ODM Development: From adding a UHF RFID module to upgrading the battery capacity, our engineering team delivers tailor-made solutions.
★ Bulk Orders: Standard configurations ship within 7–10 working days. Volume pricing, long-term supply agreements, and accessory bundles (charging cradle, spare batteries) available.
★ Certifications: CE, FCC, RoHS compliant. IP67 verified by third-party labs.

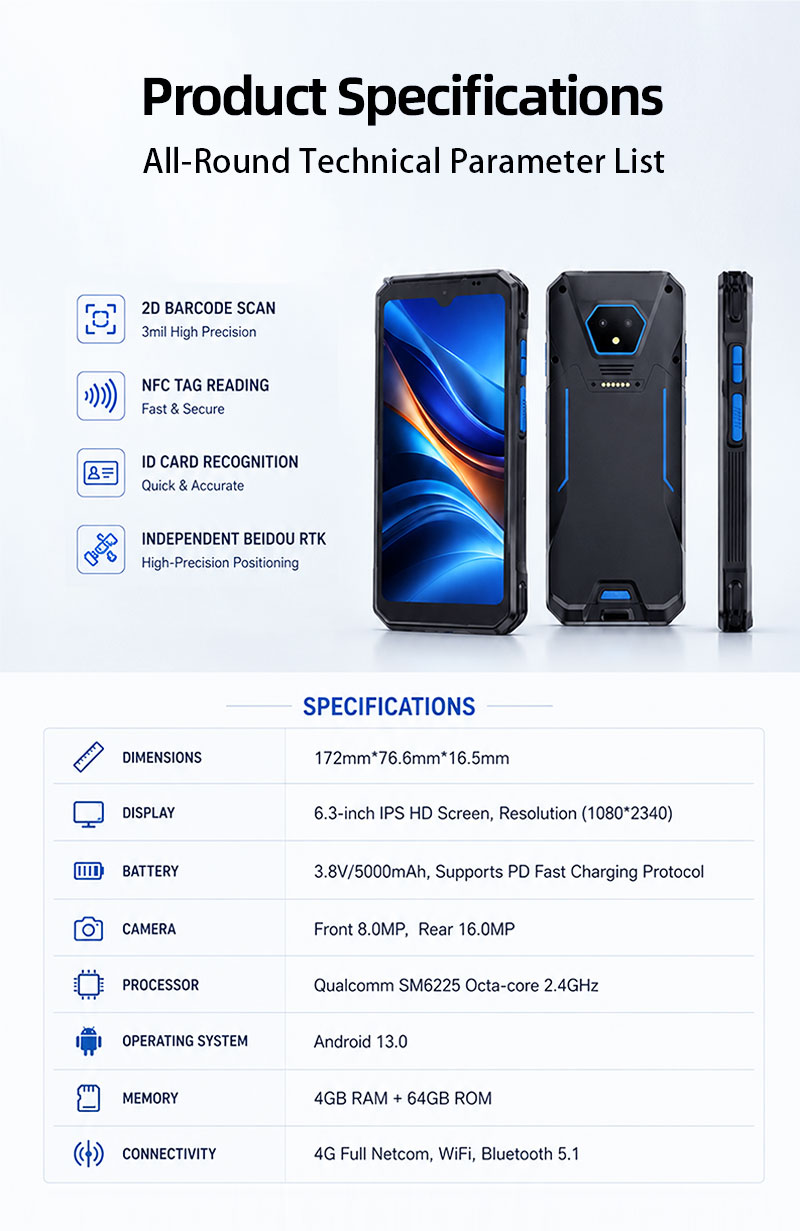

For detailed specifications, volume pricing, or to request a custom configuration (RTK Beidou, 2D scanner, NFC), please Contact Us directly – our engineers provide factory-direct support, SDK documentation, and sample loaner units for qualified projects.
Why 4G Rugged Terminals with RTK Beidou Are the Smart Choice for Field Operations – RS51 Deep Dive
While 5G garners headlines, 4G LTE remains the backbone of industrial connectivity – offering wide coverage, lower device cost, and sufficient bandwidth for most field applications. The RS51 combines mature 4G with an optional independent Beidou RTK module, delivering centimeter-level accuracy at a fraction of the cost of 5G‑based solutions. Here is why this combination is winning in real-world deployments.
1. 4G LTE: Proven Coverage and Lower Total Cost
5G coverage is still expanding, especially in rural and remote industrial zones. 4G LTE, in contrast, is universally available and provides more than enough bandwidth for real‑time inventory updates, voice calls, and RTK correction data (which typically requires less than 100 kbps). The RS51's 4G modem supports carrier aggregation, delivering stable throughput even in congested areas. By choosing 4G over 5G, enterprises save approximately 30–40% on device hardware costs without sacrificing operational performance.
2. Independent Beidou RTK: Centimeter Accuracy Without High‑End GNSS Receivers
Traditional high‑precision GNSS receivers cost thousands of dollars. The RS51's optional independent Beidou module (with RTK) brings sub‑5cm accuracy to a rugged handheld priced for volume deployment. This module is self‑contained – it does not drain the main processor and can operate concurrently with the standard GPS/Glonass/Galileo. For applications like mapping utility assets, verifying construction layouts, or guiding autonomous yard vehicles, the RS51 eliminates the need for separate survey‑grade equipment.
3. 6.3" FHD+ Display: More Screen for Field Maps and Forms
Field workers often struggle with small screens when viewing GIS maps, inspection checklists, or work orders. The RS51's 6.3‑inch FHD+ display (1080×2340) provides 30% more screen area than typical 5.5‑inch terminals. This means less panning and zooming, faster data entry, and fewer errors. The 5‑point capacitive touch works with gloves, and the display is bright enough for outdoor use.
4. Real-World ROI Examples
Utility Company (300 field workers): Switching from consumer tablets + separate GPS receivers to RS51 with RTK Beidou reduced equipment costs by $1,200 per worker and cut pole inspection time by 40%. Accurate geo‑tagging eliminated manual data entry errors, improving asset database quality from 78% to 98%.
Warehouse Operator (150 forklifts): Deploying RS51 units with RTK Beidou for forklift guidance reduced pallet misplacement by 85% and increased storage density by 12%. The 4G connectivity allowed real‑time slotting updates, reducing travel time per pick by 18%.
The RS51 proves that 4G rugged terminals, when paired with independent Beidou RTK, can handle high‑precision tasks previously reserved for expensive survey equipment. Sample units available for testing. OEM/ODM customization ready. Contact us for a demo unit or to discuss integrating RTK Beidou, 2D scanning, or NFC into your deployment.
