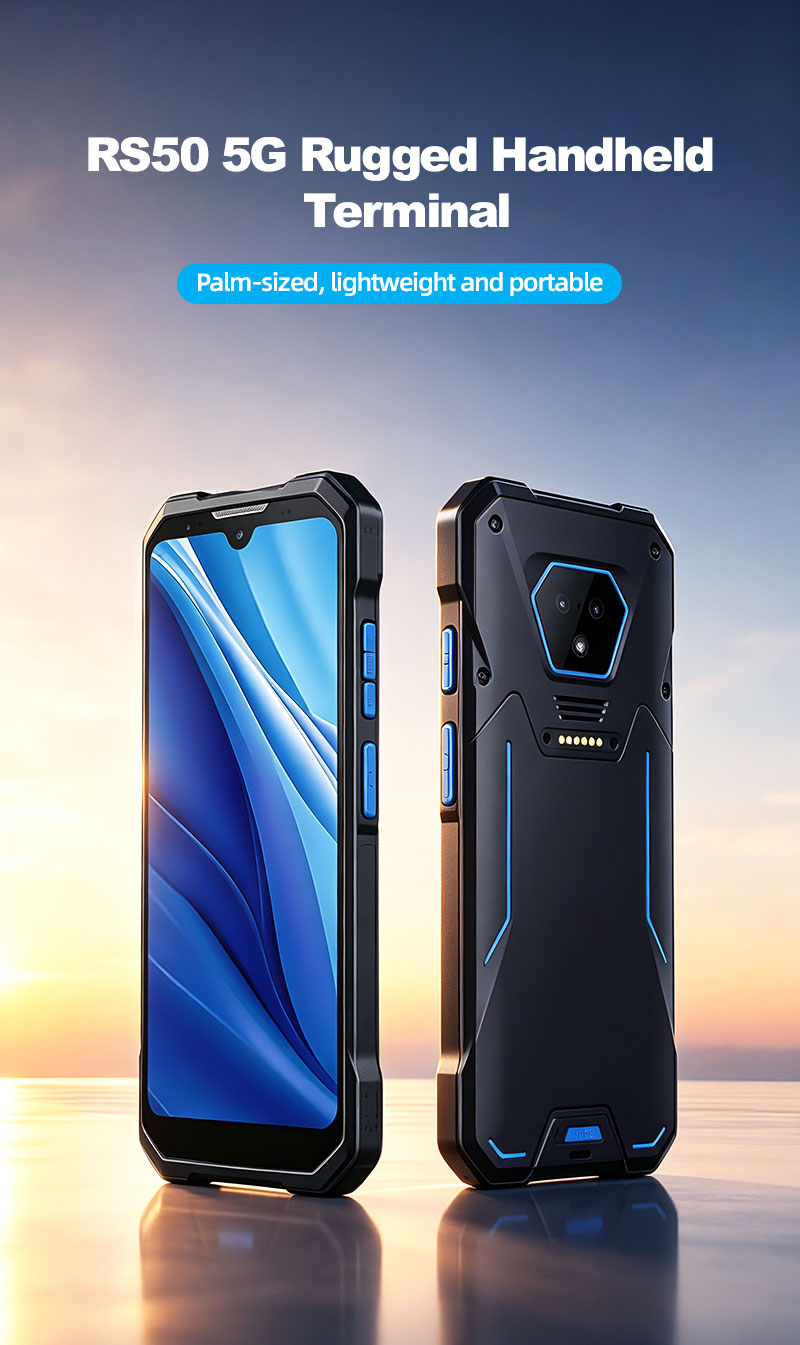

RS50 5G Rugged Handheld Terminal |6.3" FHD+ | Unisoc Octa-core 2.7GHz |
Harmony OS / Android 13
Key Specifications At a Glance
| Processor | Unisoc UIS7885 Octa-core 2.7GHz + 8T NPU |
|---|---|
| Operating System | Android 13 / Harmony OS (optional) |
| Memory & Storage | 8GB RAM + 128GB ROM, expandable via TF up to 512GB |
| Display | 6.3 inch IPS FHD+ (1080×2340), 5-point G+F+F capacitive touch |
| Battery | 4800mAh 3.8V, detachable |
| Dimensions & Weight | 172mm × 76.6mm × 16.5mm, <500g |
| Cellular | 5G SA/NSA: N1/N3/N5/N8/N28/N41/N78/N79; 4G LTE: B1/B3/B5/B8/B34/B38/B39/B40/B41; WCDMA: B1/B5/B8 |
| Wireless | Dual-band Wi-Fi (2.4/5GHz, 802.11 a/b/g/n/ac), Bluetooth 5.0 |
| GNSS | GPS / Glonass / Galileo + Independent Beidou (RTK accurate positioning optional) |
| 2D Barcode Scanner (Optional) | Accuracy ≥3mil |
| NFC (Optional) | 13.56MHz, ISO14443A/B/ISO15693, M1 (S50,S70), CPU tags, read 2-3cm |
| Independent Beidou (Optional) | Supports independent Beidou positioning + RTK centimeter-level accuracy |
| Fingerprint (Optional) | Support fingerprint unlocking |

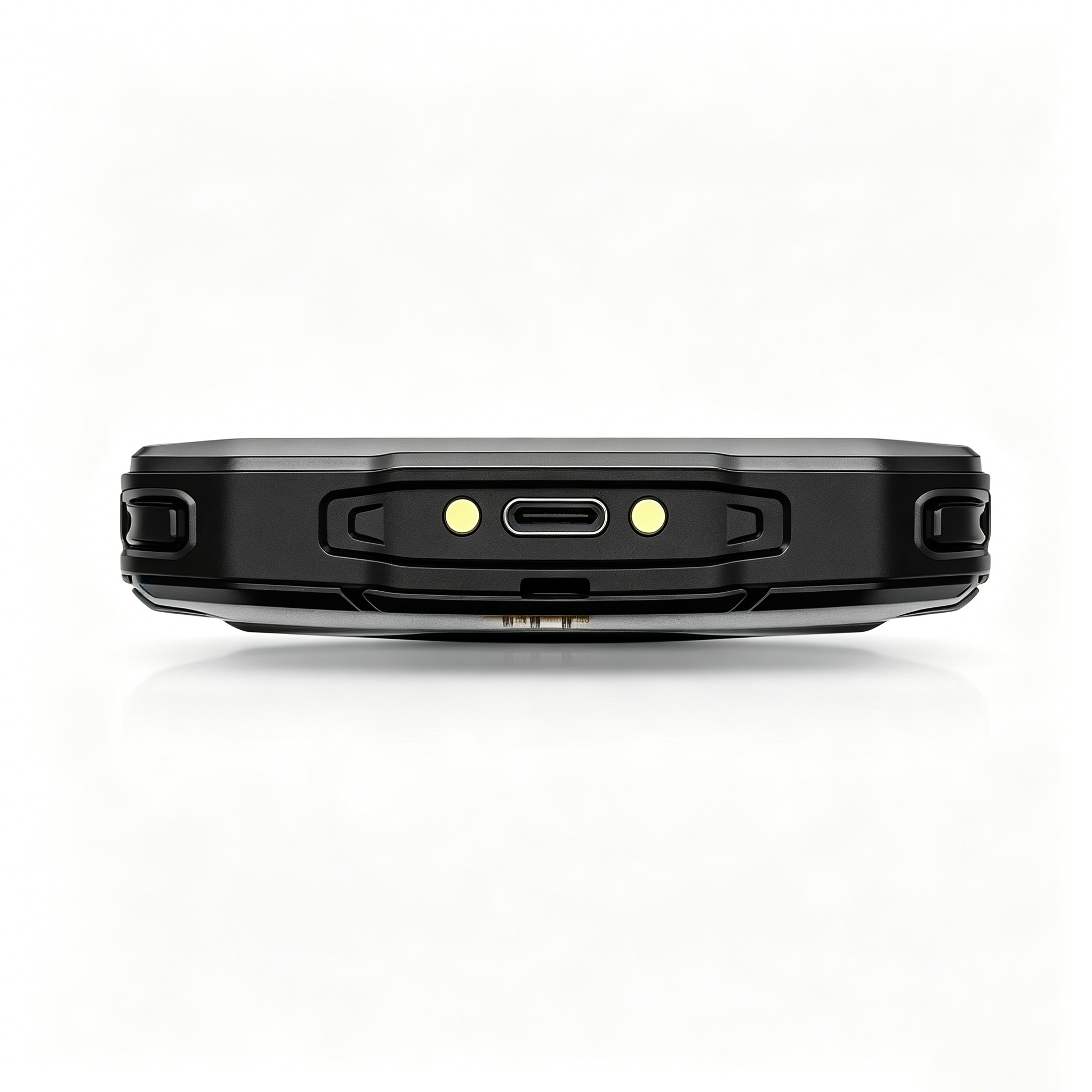

| Ports | Nano-SIM×2, TF×1, Type-C (OTG+PD), 2-pin Pogo Pin |
| Cameras | Front 8MP; Rear 48MP autofocus with LED flash; Rear 8MP macro (optional) |
| Audio | Loudspeaker, microphone, voice call support |
| Keypad | Power, dual SCAN buttons, volume rocker |
| Sensors | Gravity, gyroscope, magnetic sensor |
| Environmental | IP67, drop 1.2m, operating -10°C to 50°C, storage -40°C to 70°C, humidity 5%–95% non-condensing |
| Accessories | Power adapter, USB cable, battery, protective film, manual, wrist strap |
Inside the HOTUS RS50 Handheld PDA: Full Unboxing, Teardown & Component Breakdown
Two Key Highlights
5G + Independent Beidou RTK – Ultimate Connectivity & Positioning
The RS50 is one of the few rugged handhelds with full 5G SA/NSA support (N1/N41/N78/N79 etc.) plus an optional independent Beidou positioning module with RTK (Real-Time Kinematic) for centimeter-level accuracy. Whether you are tracking assets across a wide yard or guiding autonomous equipment, the RS50 delivers real-time data and pinpoint location without relying on external GNSS receivers.
Harmony OS + Android 13 Dual OS & 48MP Camera
Choose between Android 13 or Harmony OS – the first rugged terminal to offer Huawei's distributed operating system. The 48MP rear camera with LED flash captures evidence-grade photos, and an optional 8MP macro lens handles close-up details. Combined with IP67 sealing and 1.2m drop rating, the RS50 thrives in retail, warehousing, and field service environments.
The RS50 marks a new generation of rugged handheld terminals: 5G-ready, AI-enhanced with an 8T NPU, and optionally running Harmony OS for seamless device-cloud collaboration. Its 6.3-inch FHD+ screen provides ample workspace for inventory apps, while the 5000mAh detachable battery keeps you productive through long shifts. With IP67 protection, 1.2-meter drop tolerance, and a comprehensive set of optional modules (2D scanning, NFC, independent Beidou RTK, fingerprint), the RS50 is built for the most demanding mobile workflows.
Performance: Unisoc UIS7885 + 8T NPU + 6GB RAM
The Unisoc UIS7885 octa-core processor (2.7GHz) integrates an 8T NPU (Neural Processing Unit) capable of 8 trillion operations per second. This enables on-device AI acceleration for tasks like real-time object recognition, barcode decoding enhancement, and predictive maintenance analytics. With 6GB LPDDR4X RAM and 128GB UFS storage (expandable via TF to 512GB), the RS50 handles multitasking between 5G data streams, scanning apps, and background positioning without slowdowns. The operating system choice – Android 13 (with GMS optional) or Harmony OS – gives enterprises flexibility depending on their software ecosystem.
5G Connectivity for Real-Time Edge Computing
The RS50 supports both 5G SA (Standalone) and NSA (Non-Standalone) modes, covering N1, N3, N5, N8, N28, N41, N78, N79 bands – optimized for global deployments, especially in Asia, Europe, and North America. 4G LTE fallback includes B1/B3/B5/B8/B34/B38/B39/B40/B41, ensuring coverage in all regions. Dual-band Wi-Fi (2.4/5GHz, 802.11ac) and Bluetooth 5.0 complete the wireless suite. For fixed installations, the 2-pin Pogo Pin allows connection to a charging cradle or external accessories.
Positioning: GPS + Glonass + Galileo + Independent Beidou (RTK)
Standard GNSS includes GPS, Glonass, and Galileo. For applications demanding extreme accuracy – such as land survey, precision agriculture, or autonomous yard trucks – the RS50 offers an optional independent Beidou module with RTK (Real-Time Kinematic). This delivers centimeter-level positioning without relying on external base stations in many regions. Even without RTK, the Beidou module provides faster fix times and better performance in urban canyons where other GNSS struggle.

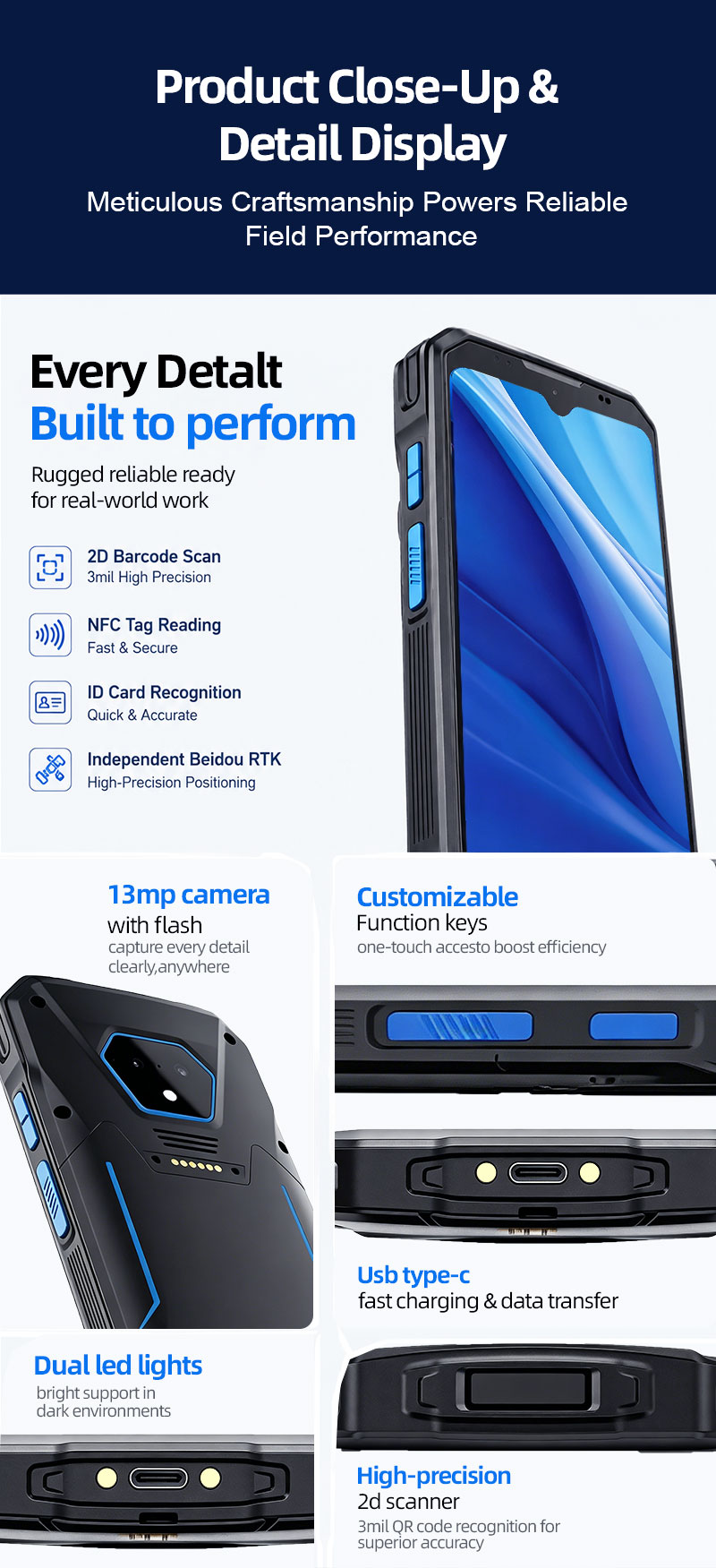

Data Capture: 2D Scanner, NFC, Fingerprint, High-Res Camera
The optional 2D imager (≥3mil) reads high-density barcodes on electronics, pharmaceuticals, and shipping labels. NFC (13.56MHz) supports ISO14443A/B, ISO15693, and M1/CPU tags – ideal for contactless payments, access control, and inventory verification. The fingerprint sensor (optional) enables secure device unlocking and user authentication, meeting strict data compliance requirements. The 48MP rear camera with autofocus and LED flash captures detailed proof-of-delivery photos; an optional 8MP macro sub-camera focuses on objects as close as 2cm, perfect for inspecting serial numbers or small components.
Rugged Design: IP67, 1.2m Drop, All-Weather Operation
The RS50 is built to withstand dust, water immersion (up to 1 meter for 30 minutes), and drops from 1.2 meters onto concrete. Operating temperature from -10°C to 50°C and 95% humidity coverage means it works in cold storage, outdoor warehouses, and tropical environments. The detachable 5000mAh battery supports hot-swapping – ｒｅｐｌａｃｅ a depleted pack without rebooting. The 6.3-inch FHD+ display is readable under direct sunlight, and the 5-point G+F+F capacitive touch works with gloves.
Harmony OS Ecosystem (Optional)
For organizations invested in Huawei's ecosystem, the RS50 can be preloaded with Harmony OS. This distributed operating system allows seamless collaboration with other Harmony devices – for example, transferring a scanning task from the handheld to a fixed kiosk, or displaying real-time inventory on a nearby smart screen. Harmony OS also brings super-device capabilities, enhanced security, and smoother cross-device file sharing. Enterprises that prefer Google Mobile Services can instead choose Android 13 with full GMS certification.
Typical Deployments
Store & Retail Management: Use the 2D scanner for quick price checks and inventory counts. The 48MP camera captures product conditions. NFC handles loyalty cards and mobile payments. 5G ensures real-time sync with central servers.
Warehouse & Logistics: Scan inbound/outbound barcodes, print labels via connected wireless printers, and track forklift positions with RTK Beidou. IP67 protection survives dusty aisles and occasional spills.
Shipment & Last-Mile Delivery: Drivers receive route updates over 5G, scan packages, take delivery proof photos, and collect signatures – all on a rugged device that handles drops and rain.
Field Asset Inspection & Survey: RTK Beidou provides centimeter-accurate location for utility poles, pipelines, or construction sites. The macro camera captures equipment serial numbers. Fingerprint ensures only authorized personnel access sensitive data.
Public Safety & Emergency Response: First responders benefit from 5G low latency and independent Beidou positioning. The bright 6.3-inch screen displays maps and incident details clearly even in direct sun.
Service & Support
★ Sample Evaluation: Request a test unit to verify 5G speed, Beidou RTK accuracy, and battery life under your workload.
★ OEM Customization: Logo printing, custom OS build (Android/Harmony), pre-loaded apps, and region-specific 5G band tuning.
★ ODM Development: From adding a UHF RFID module to redesigning the battery compartment, our engineering team delivers tailor-made solutions.
★ Bulk Orders: Standard configurations ship within 7–10 working days. Volume pricing, long-term supply agreements, and accessory bundles (charging cradle, spare batteries) available.
★ Certifications: CE, FCC, RoHS compliant. IP67 verified by third-party labs.
For detailed specifications, volume pricing, or to request a custom configuration (Harmony OS, RTK Beidou, fingerprint, macro camera), please Contact Us directly – our engineers provide factory-direct support, SDK documentation, and sample loaner units for qualified projects.
Why 5G + RTK Beidou Rugged Terminals Are the Future of Mobile Workforces – RS50 Deep Dive
The convergence of 5G low-latency connectivity and centimeter-accurate positioning is unlocking new use cases in logistics, public safety, and autonomous operations. The RS50 is one of the first rugged handhelds to offer both an optional independent Beidou RTK module and full 5G SA/NSA support. Here we break down the real-world advantages.
1. 5G Reduces Data Latency to Under 10ms
In warehouse automation, every second of delay in cloud-based inventory updates can cause routing errors. The RS50's 5G NR (N78/N79 bands) delivers downlink speeds up to 2.5Gbps and latency as low as 5-10ms. For remote video assistance – a technician wearing the RS50 streaming live macro-camera footage to an expert – 5G makes lag-free guidance possible. Compared to 4G, 5G cuts update time by 80%, enabling real-time decision-making.
2. Independent Beidou RTK: Centimeter-Level Accuracy Without External Base Stations
Many rugged terminals rely on standard GPS (3-5m accuracy). The RS50's optional independent Beidou module, combined with RTK corrections, achieves horizontal accuracy of 2-5cm. This is critical for applications like: guiding forklifts to exact pallet locations, mapping underground utility assets, or verifying construction layouts. Because the module is independent, it does not drain the main processor, and RTK corrections can be received over 5G from network RTK services.
3. 48MP Camera + 8MP Macro: Evidence-Grade Documentation
The 48MP main camera (with autofocus and LED flash) captures photos sharp enough to read small text or serial numbers. The optional 8MP macro lens focuses down to 2cm, revealing microscopic details – ideal for insurance adjusters documenting fine cracks, or inspectors verifying component batch codes. Both images can be geotagged with RTK-accurate coordinates and uploaded via 5G in seconds.
4. Real-World ROI Scenarios
Warehouse Operator (200 vehicles): Deploying RS50 units with RTK Beidou reduced forklift misplacement of pallets by 95%, saving $50,000 annually in restocking labor. 5G enabled real-time slotting updates, increasing storage density by 15%.
Utility Company (500 field workers): Using RS50 for pole inspection with macro camera and RTK cut inspection time per pole from 8 minutes to 3 minutes. Accurate GPS tagging eliminated manual data entry errors, improving asset database reliability from 82% to 99%.
The RS50 is more than a rugged PDA – it is a 5G edge device with AI processing and RTK positioning, ready for Industry 4.0. Sample units available for testing. OEM/ODM customization ready. Contact us for a demo unit or to discuss integrating Harmony OS, RTK Beidou, or macro camera into your deployment.
