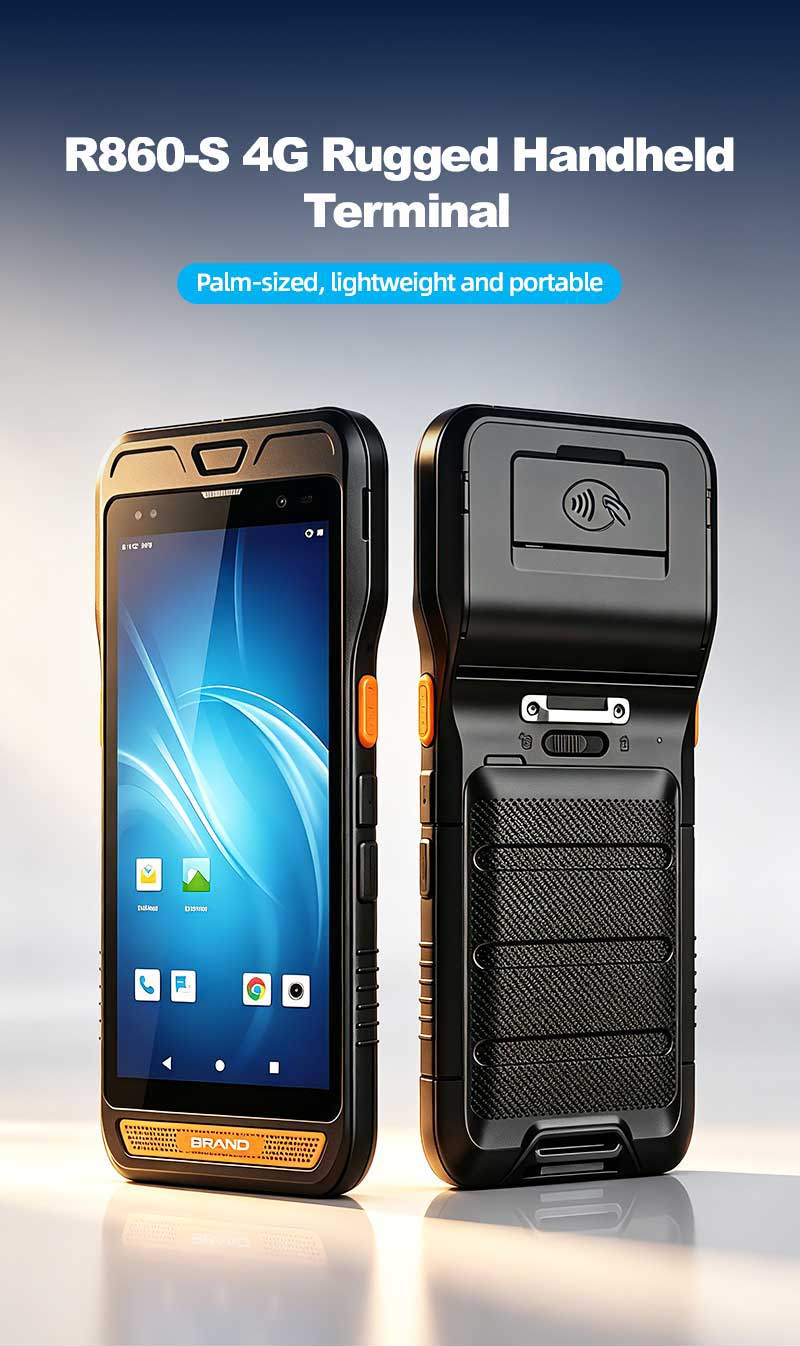

R860-S 5.5-inch Industrial PDA with

Thermal Printer | Qualcomm Octa-core, 70mm/s Printing

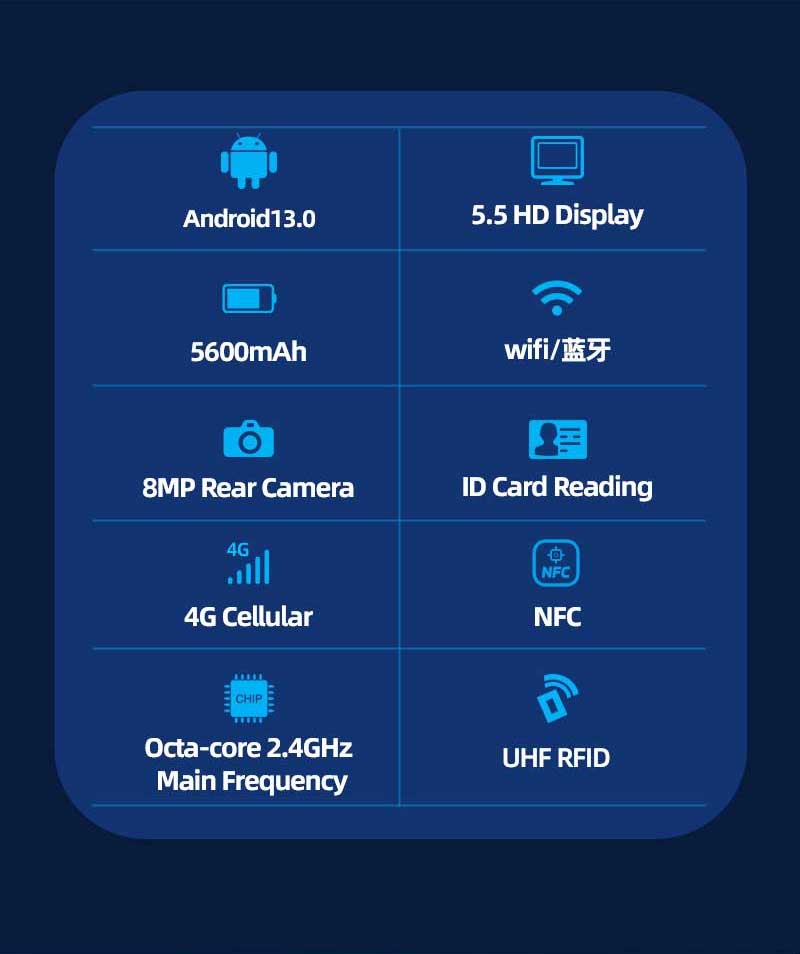

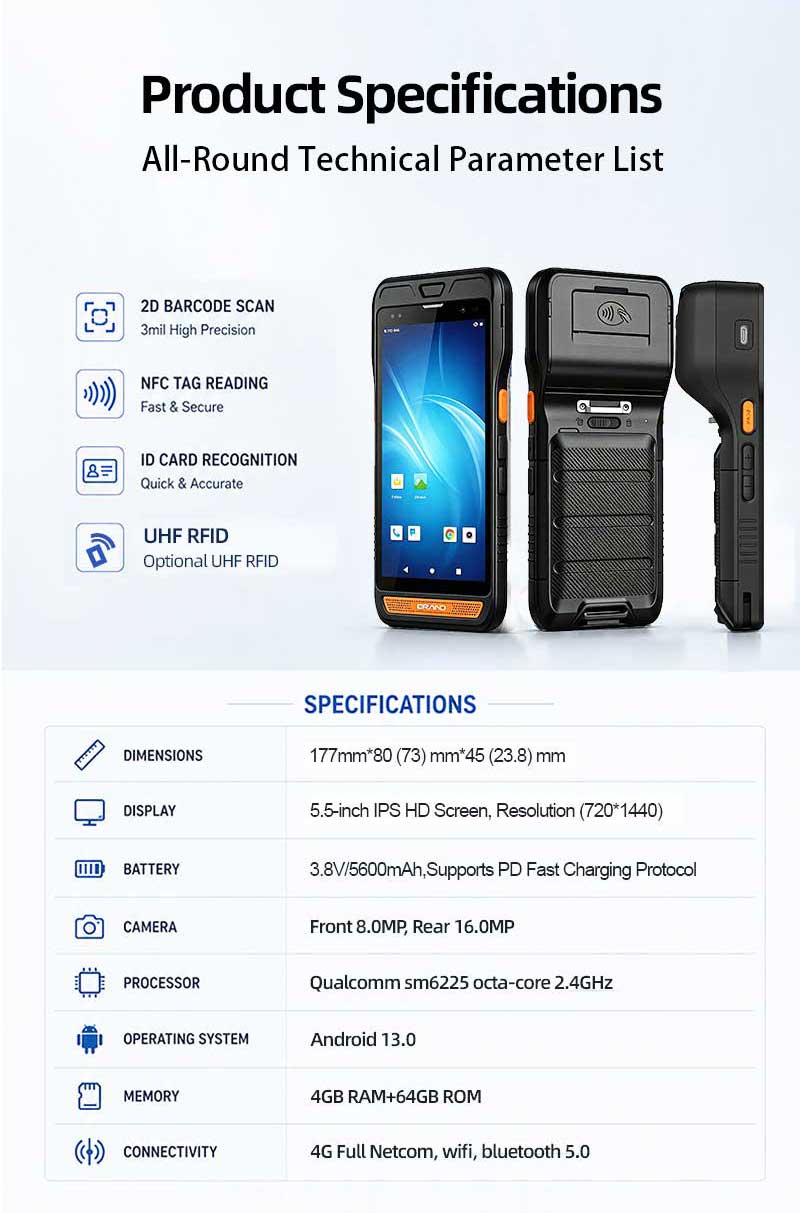

Key Specifications At a Glance

Two Key Highlights

The R860-S redefines what a mobile printer can be. Designed for field workers who need to capture data and immediately produce a physical record – parking tickets, shipping labels, patient ID wristbands, event passes – this industrial PDA integrates a high-speed thermal printer without compromising on scanning or connectivity. Powered by a Qualcomm SM6225 octa-core processor (2.4GHz) and Android 13, it offers enterprise-grade performance. With a detachable 5600mAh battery, standby time exceeds 350 hours, and the optional charging cradle keeps both the device and a spare battery ready for back-to-back shifts.

Thermal Printing: Fast, Reliable, and Versatile

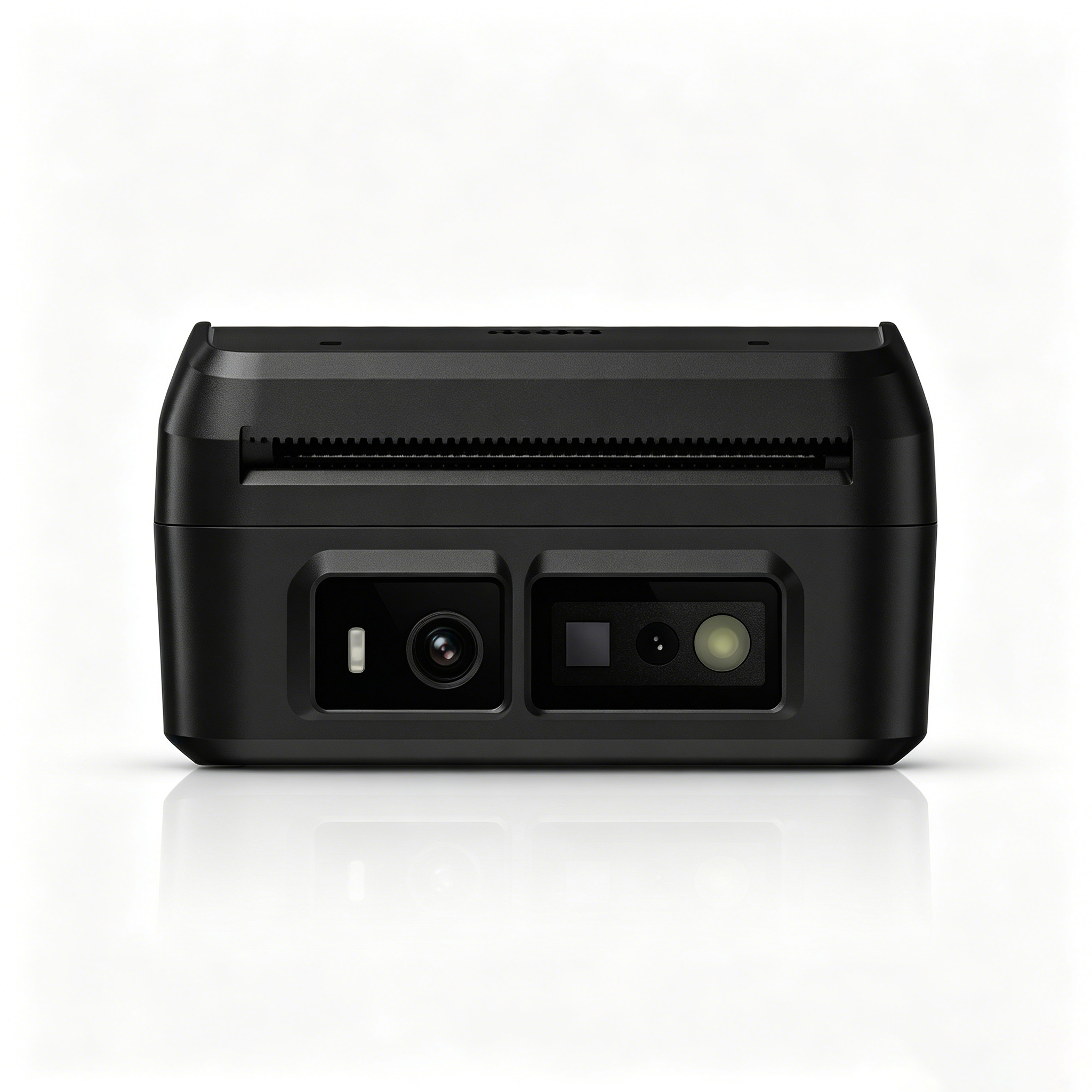

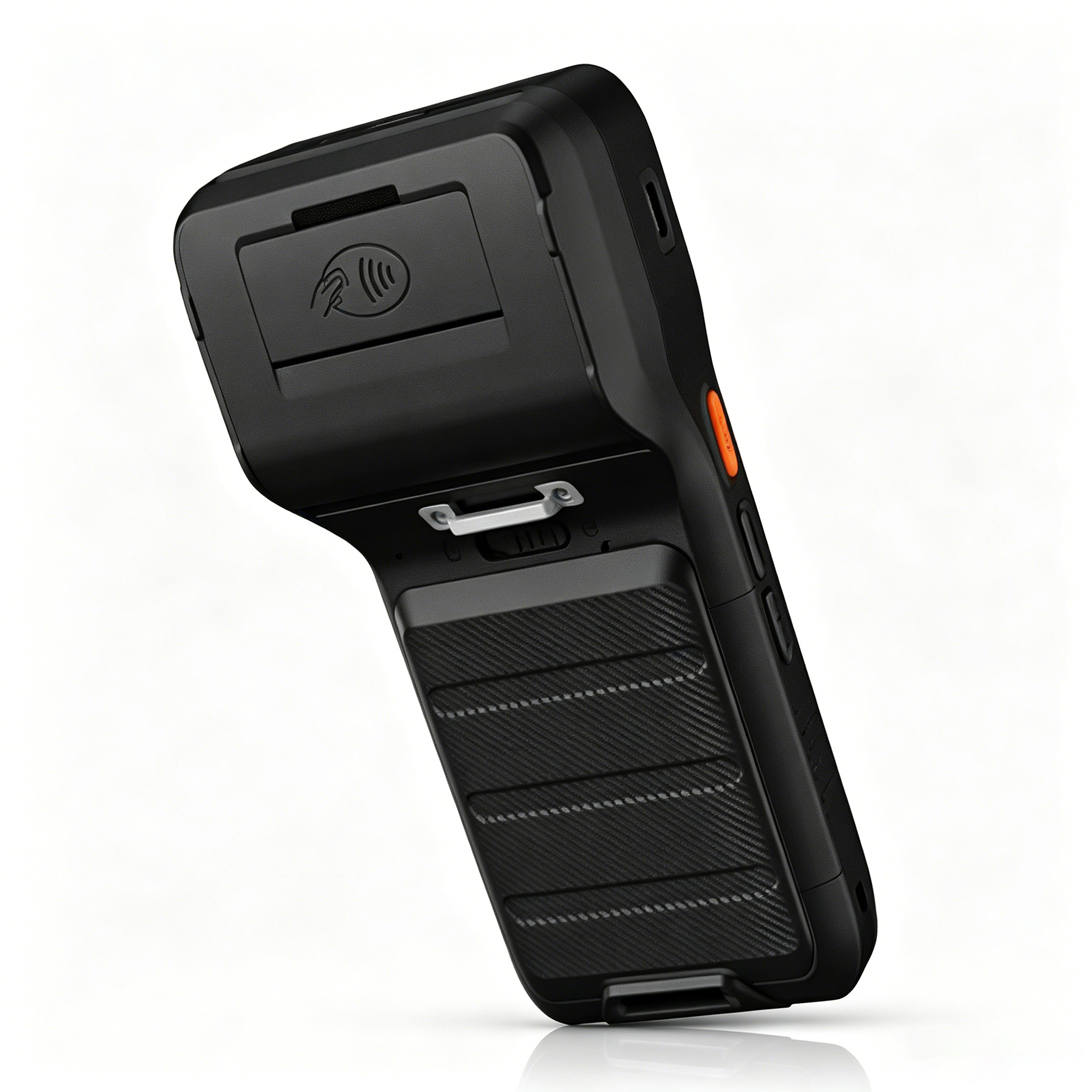

The integrated thermal printer supports 57mm-wide paper rolls with a 30mm core diameter. It handles both continuous receipt paper and labelled paper (with black mark sensing for precise label stops). Print speed reaches 70mm/s – a full parking receipt or shipping label in under two seconds. The printer includes sensors for black label detection, paper-out alert, and over-heat/over-voltage protection, preventing damage during extended use. The print head is positioned for easy paper loading, and the paper compartment is sealed against dust. For parking enforcement, ticket verification, or medical traceability, the ability to print on the spot eliminates the need for a separate printer and reduces manual paperwork errors.

Performance and Software Foundation

The Qualcomm SM6225 octa-core platform (2.4GHz) ensures smooth operation of printing, scanning, and background apps simultaneously. Android 13 provides modern security features, granular app permissions, and support for MDM solutions. Our firmware stays close to AOSP, so custom parking management, hospital tracking, or event ticketing apps run without proprietary modifications. Developers can access the printer via standard Android printing APIs or our SDK for direct ESC/POS commands.

Data Capture Flexibility: 2D Barcode, NFC, UHF RFID, PSAM

The R860-S can be configured with up to four optional data capture modules. The 2D imager (≥3mil) reads high-density barcodes on small medical vials or parking QR codes. NFC (13.56MHz) supports ISO14443A/B, ISO15693, and M1/CPU tags – ideal for contactless payments or access control. The built-in UHF RFID module (40×40 ceramic antenna) reads EPC Gen2 tags up to 2 meters, suitable for asset tracking within a small zone. Up to 4 PSAM slots (ISO/IEC 7816) enable secure cryptographic operations for financial or government applications – all in one handheld device.

Wireless and Connectivity for Real-Time Operations

Dual-band Wi-Fi (2.4/5GHz) with 802.11ax (Wi-Fi 6) readiness ensures fast, stable connections in crowded environments like parking garages or convention centers. Bluetooth 5.1 connects to wireless headsets or external printers (if redundancy is needed). The 4G LTE modem is available in CN (China/India) and EAU (Europe, Middle East, Africa, Korea, Thailand, Australia) variants, covering all major bands. GPS, GLONASS, and BeiDou provide accurate location for enforcement or delivery tracking.

Rugged Design with Long Battery Life

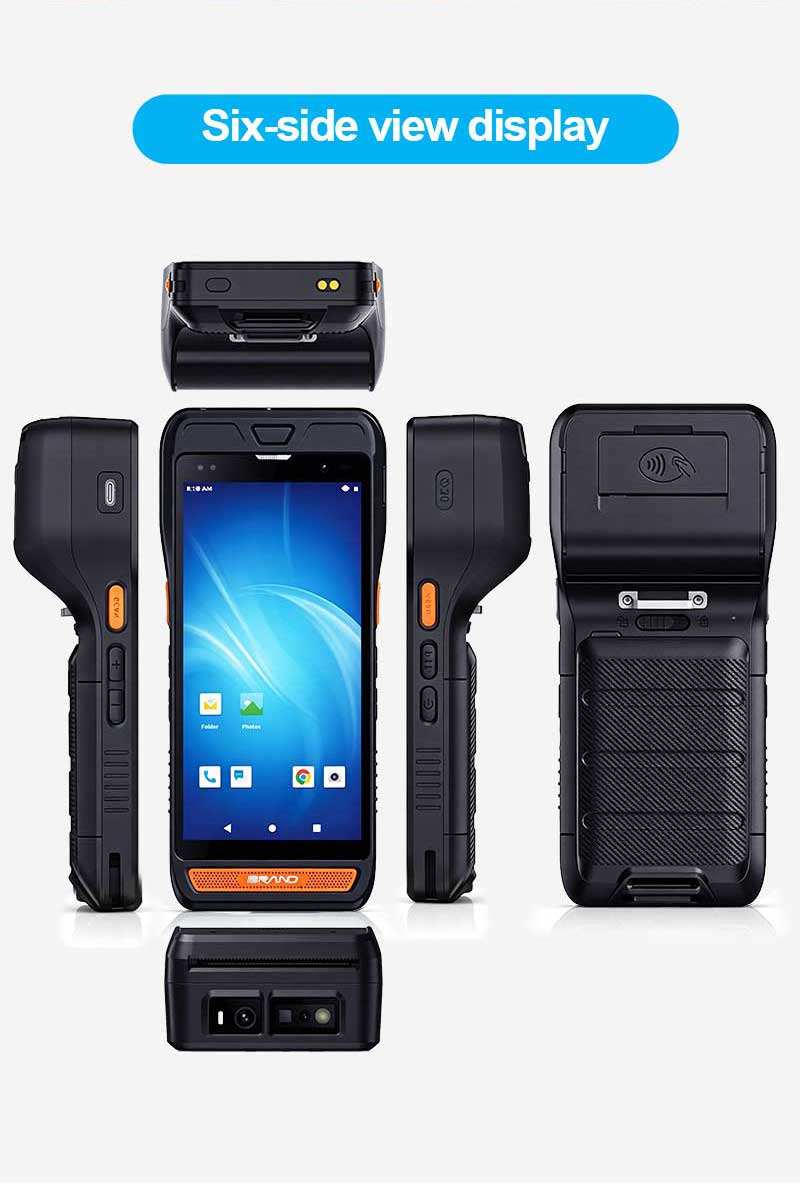

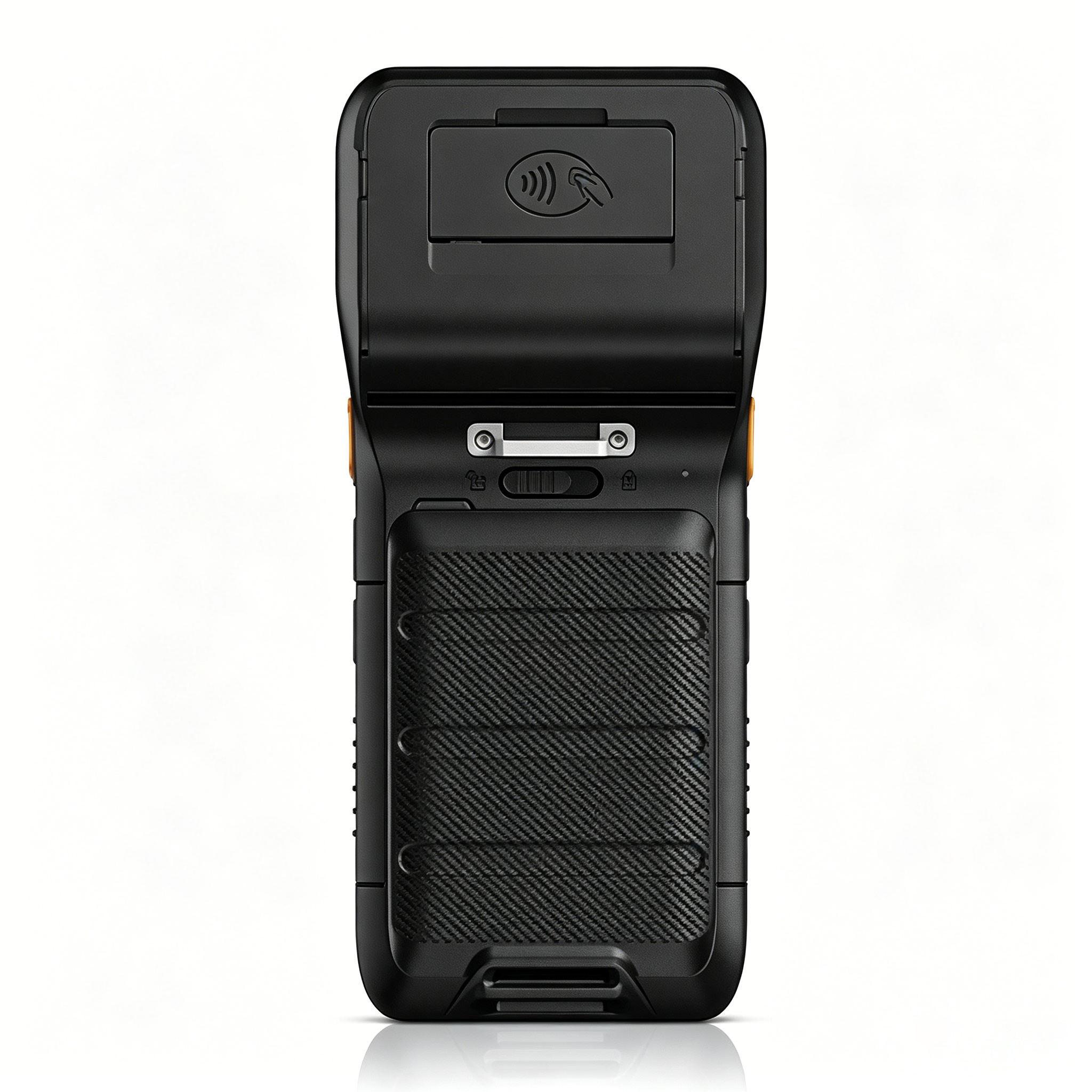

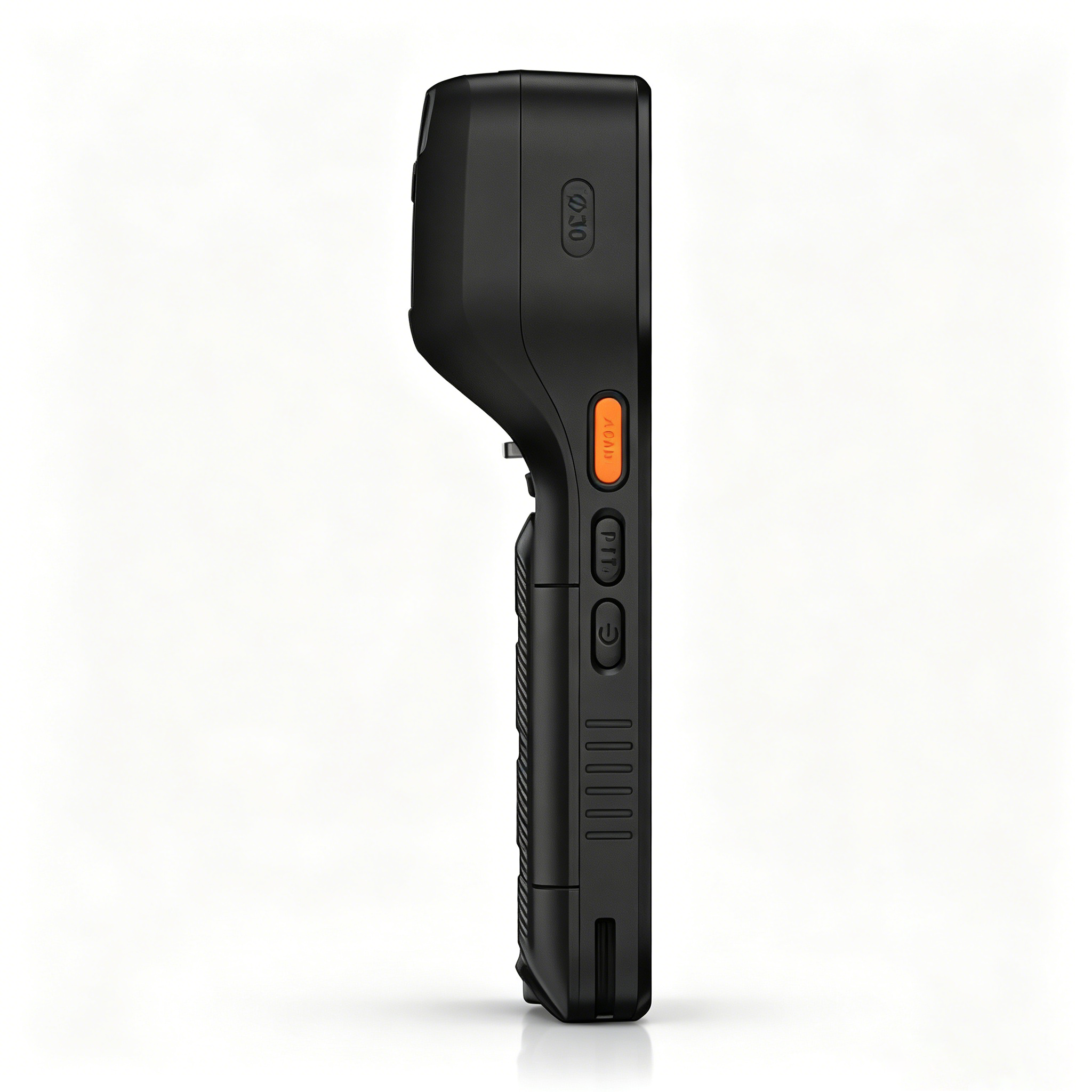

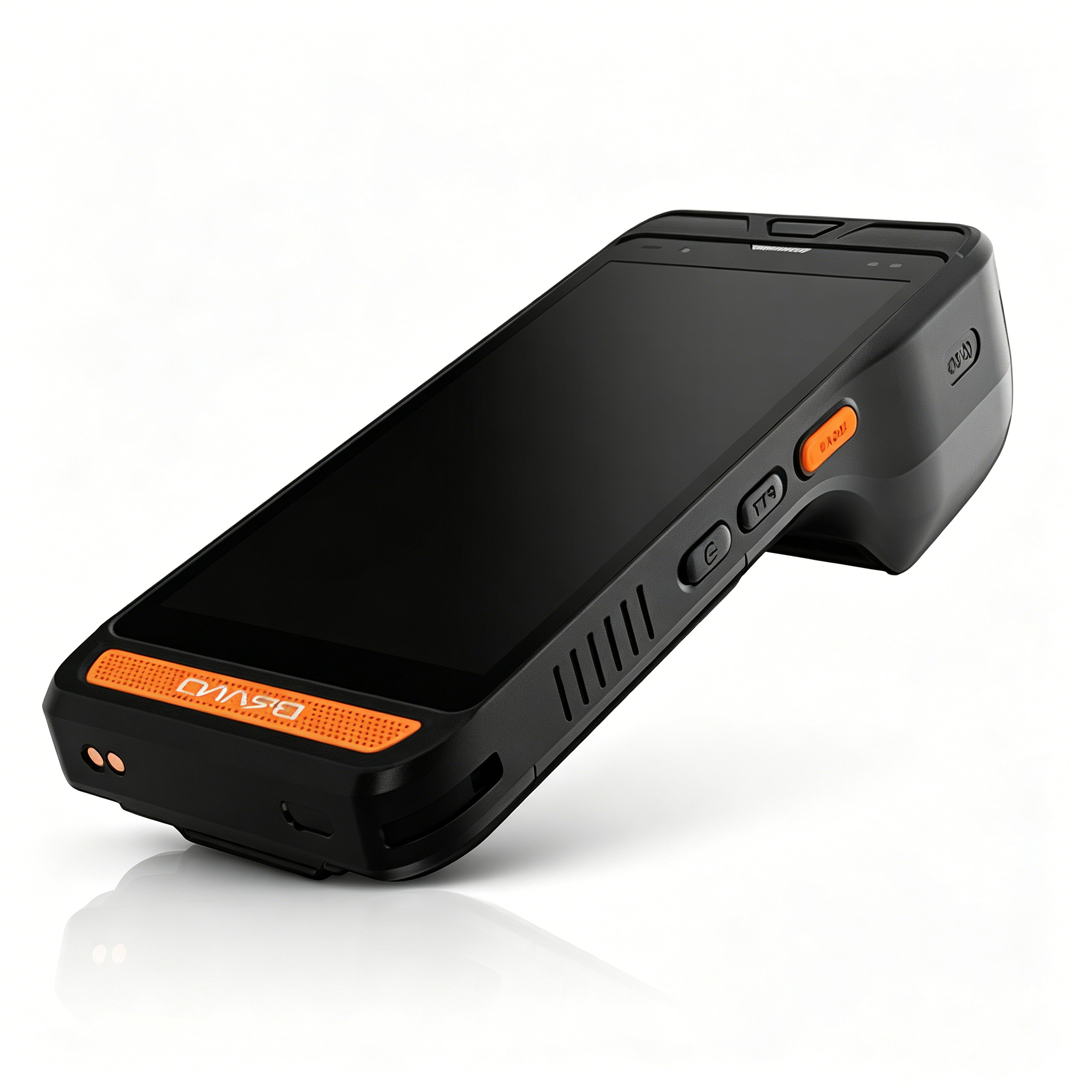

The R860-S measures 177mm × 80(73)mm × 45(23.8)mm – the varying width accommodates the printer module. Weight under 500g keeps it manageable for all-day use. The detachable 5600mAh battery delivers standby time exceeding 350 hours and charges fully in 3-4 hours. For multi-shift operations, the optional charging cradle charges the main unit and a spare battery simultaneously, so you can swap in seconds. Operating temperature from -10°C to 50°C and humidity 5%–95% non-condensing covers outdoor parking enforcement in summer heat or winter cold.

Camera, Audio, and Notifications

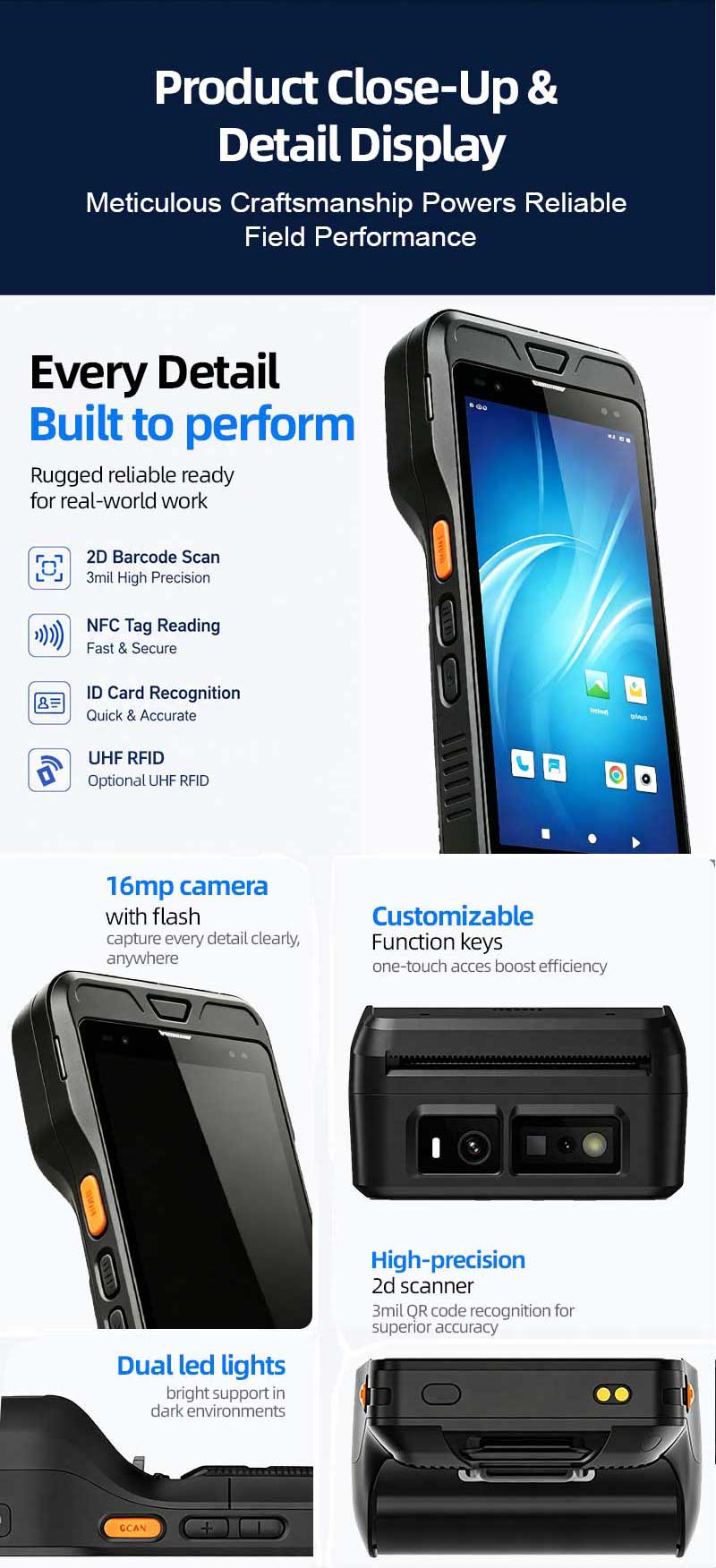

The rear 16MP autofocus camera with flash captures evidence photos – damaged vehicles, delivered packages, or patient wristbands. An optional front 8MP camera enables video calls for remote support. The 2.0W loudspeaker ensures audio feedback even in noisy environments, while the tri-color breathing light and vibration motor provide silent scan confirmations.

Typical Deployments

Roadside Parking Fee Management: Park enforcement officers scan vehicle barcode stickers or license plates via the 2D imager, calculate fees, and print a receipt directly from the R860-S. The printer outputs 70mm/s – no waiting. GPS logs the location, and 4G syncs data to central servers.
   Medical Traceability & Lab Specimens: Nurses scan patient wristbands, print sample labels on the spot, and attach them to vials. The printer supports adhesive-backed label paper. PSAM slots secure patient data encryption.
   Logistics & Last-Mile Delivery: Delivery drivers scan package barcodes, capture proof-of-delivery photos, and print customer receipts or return labels – all in one device. The large 5600mAh battery lasts a full route.
   Event & Ticket Verification: At concerts or sports events, staff scan QR codes on tickets, validate via 4G, and print entry passes or wristbands. NFC can also read contactless tickets. UHF RFID can verify VIP badges.
   Warehouse Putaway & Labeling: Workers scan a pallet barcode, the system suggests a bin location, and the R860-S prints a location label to attach immediately. No back-and-forth to a fixed printer.

Service & Support

★ Sample Evaluation: Request a test unit to verify print speed, scanning accuracy, and battery life in your workflow.
   ★ OEM Customization: Logo printing, custom Android build, pre-loaded apps, and regional frequency tuning.
   ★ ODM Development: From paper compartment redesign to adding extra PSAM slots, our engineering team delivers tailor-made solutions.
   ★ Bulk Orders: Standard configurations ship within 7–10 working days. Volume pricing, long-term supply agreements, and spare battery kits available.
   ★ Certifications: CE, FCC, RoHS compliant. Ready for global distribution.

For detailed specifications, volume pricing, or to request a custom configuration with specific optional modules (printer paper type, UHF frequency, PSAM count), please Contact Us directly – our engineers provide factory-direct support, SDK documentation, and sample loaner units for qualified projects.

Why Integrated Printing PDAs Cut Operational Costs – R860-S Deep Dive

Field operations that require both data capture and immediate ticket/label output typically rely on two devices: a handheld scanner and a separate portable printer. This doubles equipment costs, requires separate batteries and chargers, and forces workers to manage two units. The R860-S eliminates this inefficiency by integrating a high-speed thermal printer into a single rugged Android PDA. Here is how this convergence delivers measurable ROI.

1. 70mm/s Print Speed – Eliminate Bottlenecks

In parking enforcement, each ticket printed takes about 2 seconds. With a separate printer, connection delays (Bluetooth pairing, wake-up) add 5-10 seconds per transaction. The R860-S's integrated printer is always ready, reducing transaction time by 60% on average. For a city with 500,000 parking transactions per year, that translates to over 1,000 hours of saved enforcement time annually.

2. Label + Receipt Support – One Device, Multiple Paper Types

The printer accepts both continuous receipt paper and black-mark labelled paper. A hospital can use adhesive labels for specimen vials, then switch to receipt paper for patient invoices without changing devices. The black label sensor ensures precise stopping on each label, eliminating wasted paper. Warehouses can print location labels on adhesive paper, attach immediately, and avoid misplacement.

3. 5600mAh Battery + Optional Cradle – All-Day Uptime

Printing is power-intensive. The R860-S's 5600mAh battery handles a full shift of mixed use (scanning, printing, 4G). In a test of continuous printing (one label every 30 seconds), the device lasted over 8 hours. The optional charging cradle charges both the main unit and a spare battery, allowing hot-swap for 24/7 operations – critical for logistics hubs running multiple shifts.

4. Real-World ROI Examples

Municipal Parking Authority: Replaced 200 separate printer + PDA combos with 200 R860-S units. Saved $40,000 in hardware costs (no second device), plus $12,000 annually in battery and accessory maintenance. Enforcement efficiency increased by 35%, resulting in higher ticket turnover.
   National Logistics Carrier: Deployed 500 R860-S units for last-mile delivery. Drivers now print receipts on the spot, reducing customer disputes by 22%. The integrated printer also prints return labels, eliminating returns processing errors.

The R860-S is not just a PDA with a printer – it is a mobile command center for any job that requires instant physical output. Sample units available for testing. OEM/ODM customization ready. Contact us for a demo unit or to discuss custom paper holder designs, PSAM configurations, or UHF frequency tuning for your region.
