A warehouse that receives forty trucks on a quiet Tuesday and ninety on a peak-season day does not have a scanning problem, it has a calendar problem. When every carrier is told to arrive whenever convenient, the dock yard fills at ten in the morning, the scanners queue behind the forklifts, and the exception pile grows faster than the putaway bins. The fix that costs nothing in hardware is publishing a slot sheet: carriers book arrival windows, each window gets a defined crew, a defined device and a defined scan routine, and the receiving desk processes trucks at a rhythm instead of in a stampede.
This article builds that slot sheet for peak weeks around three handhelds, each pinned to one stage of the receiving flow. The X501 Handheld PDA works the tailgate, where box labels arrive shrink-wrapped, cold and occasionally crushed. The K401 Handheld PDA owns the exception desk, where damaged cartons need photographs and short remarks attached to the record.
The third seat belongs to the RS50 Handheld Terminal, which stays at the dock office with the slot board, where a supervisor watches each window open and close against the plan. The sections below walk through each seat in order, compare the published specifications side by side, and close with the booking discipline that keeps both carriers and hardware honest through the peak.
💾 Dock Capacity Gets Booked Like the Seats It Sells
The slot sheet works on a simple premise: a receiving dock has a fixed number of truck-minutes per day, and peak weeks only change the denominator. If a crew of two with one scanner clears an average truck in forty minutes, a nine-hour day carries thirteen slots, not the twenty-five that carriers assume. Publishing those numbers to carriers converts the arrival stampede into a queue you can see on paper. Overflow then becomes a decision — open an extra evening window at overtime rates, or push a pre-booked slot to tomorrow — instead of a surprise discovered when the yard is already blocked. Every peak-season warehouse that converts to booked arrivals reports the same first effect: the receiving team stops reacting and starts scheduling, which is the difference the slot sheet exists to buy.

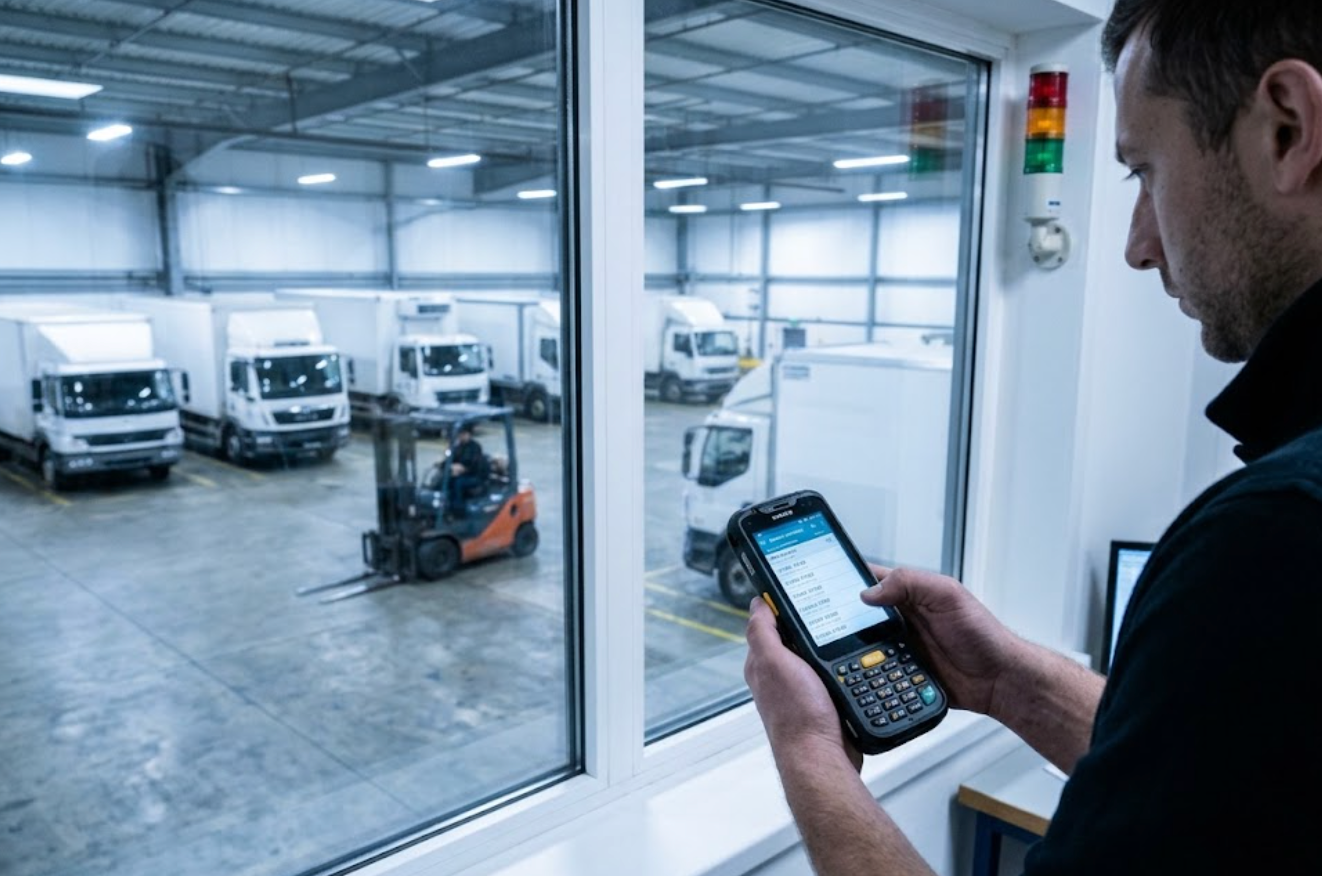

X501 Takes the Box Labels at the Tailgate
The tailgate leg decides how fast every other leg runs, because a label that will not scan stops the whole truck. The X501 is the tailgate tool: its 5.5-inch screen is protected by Corning Gorilla Glass and accepts glove and wet-hand touch, which matters when cartons come off a refrigerated trailer sweating in a humid dock. At roughly 270 g it stays light across a ninety-truck day, and its hardware 2D scan engine — the professional engine class used for retail checkout — decodes 1D and 2D codes on paper and on screens, so a damaged label with a torn corner can often be read from the duplicate printed on the packing list.
Battery policy fits the slot structure too. The removable 4500 mAh or 5000 mAh cell hot-swaps in seconds, so a full truck is never paused for a charger; the crew swaps batteries at the natural break between booked windows. At 1.5 m drop resistance in an IP67 shell, the unit tolerates the tailgate step and the concrete floor better than any consumer phone would, and the dual side scan keys let a gloved left-handed operator trigger from either grip without re-chalking the carton.
A Scan Engine Judged by Its Worst Label
Scanner claims are easy to verify with the label that matters least and fail on the label that matters most. The X501's engine is specified to read codes on paper and on screens at close range, which covers the two labels that actually appear at a tailgate: the carton label, often creased or wrapped under stretch film, and the screen label on the driver's phone, which increasingly carries the real shipment manifest when paper has run out. Operators at a receiving desk do not need marketing decode rates; they need one behaviour — hold, beep, move on. During peak weeks the difference between an engine that reads film-wrapped codes first time and one that needs three attempts is measured in truck-minutes, and truck-minutes are exactly what the slot sheet sells.

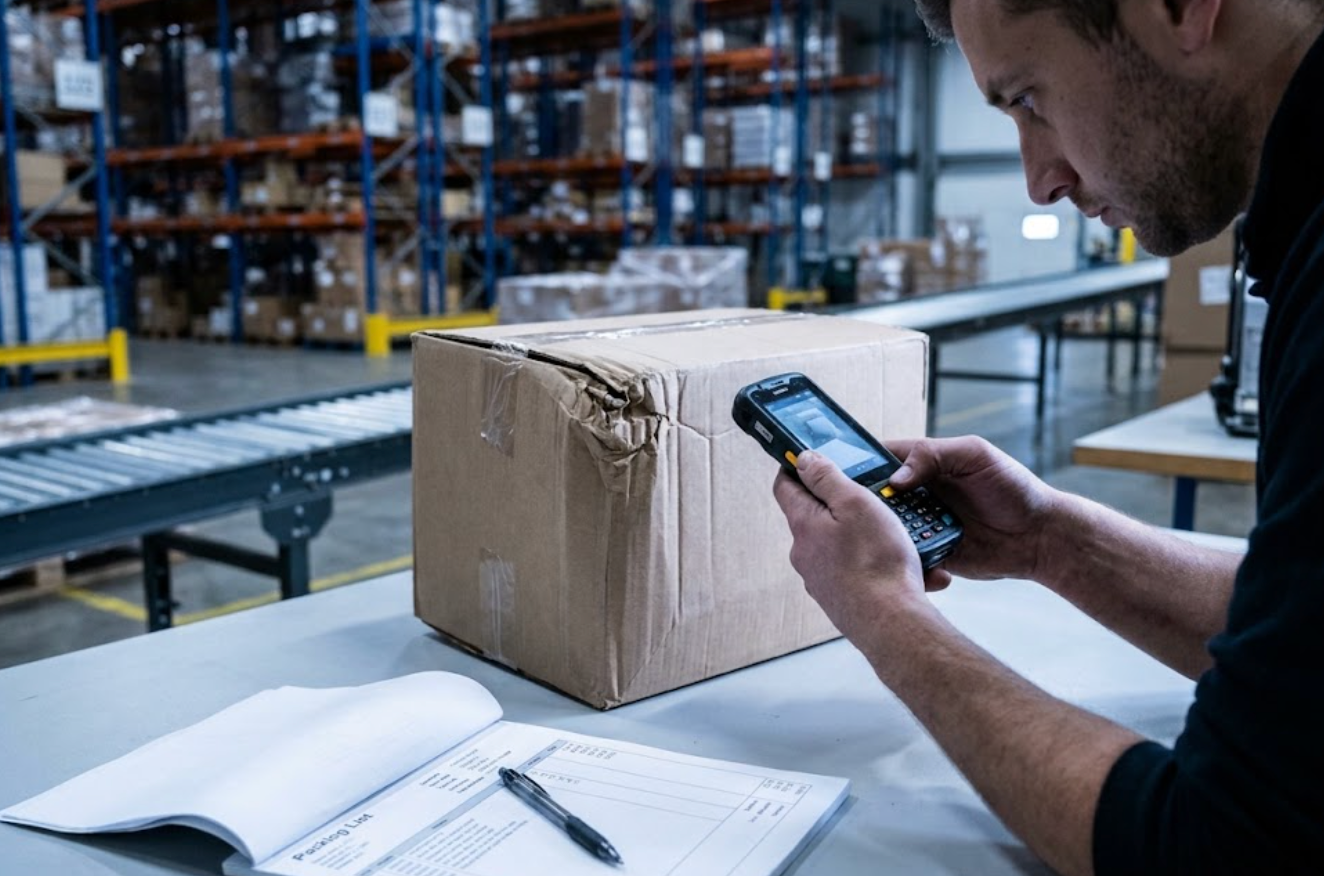

K401 Owns the Exceptions and the Evidence
Every truck produces a small pile of exceptions: a carton crushed at the corner, a pallet short one case against the manifest, a label that refuses to resolve. Processing those at the tailgate slows the booked window, so the slot sheet routes them to a fixed exception desk staffed by the second device. The K401 runs that desk: its 20-megapixel rear camera photographs the damaged corner at evidence quality, its 6 GB of memory keeps the receiving application and the camera app both resident, and its compact 4.2-inch body works on a standing desk without the wrist fatigue a larger tablet would cause over a full shift.
The battery case for this role is the strongest in the fleet: a 5200 mAh removable cell outlasts the longest booked day, and the unit stays under 300 g in an IP67 build, so it can travel to the yard when an exception needs to be judged where the pallet sits. Android 13 keeps the camera pipeline fast between shots, and the built-in NFC support lets the same unit read the crew's own task tags, which is how the exception desk logs who cleared what without typing names between trucks.
💡 Why the Camera at the Receiving Desk Pays for Itself
A receiving record with a photograph attached settles disputes in minutes; without one, the same dispute travels to the carrier's claims department and costs hours of supervisor time across a peak week. The arithmetic is unglamorous but decisive. If one truck in four produces a photographic exception and a claim cycle consumes an hour of staff time that a photo would have closed on the spot, the camera has earned its keep before the peak is a week old. The K401's 20 MP sensor resolves carton markings and pallet labels well enough for a carrier's inspector to match the damage to the shipment record, which is the standard a phone camera at arm's length rarely meets.

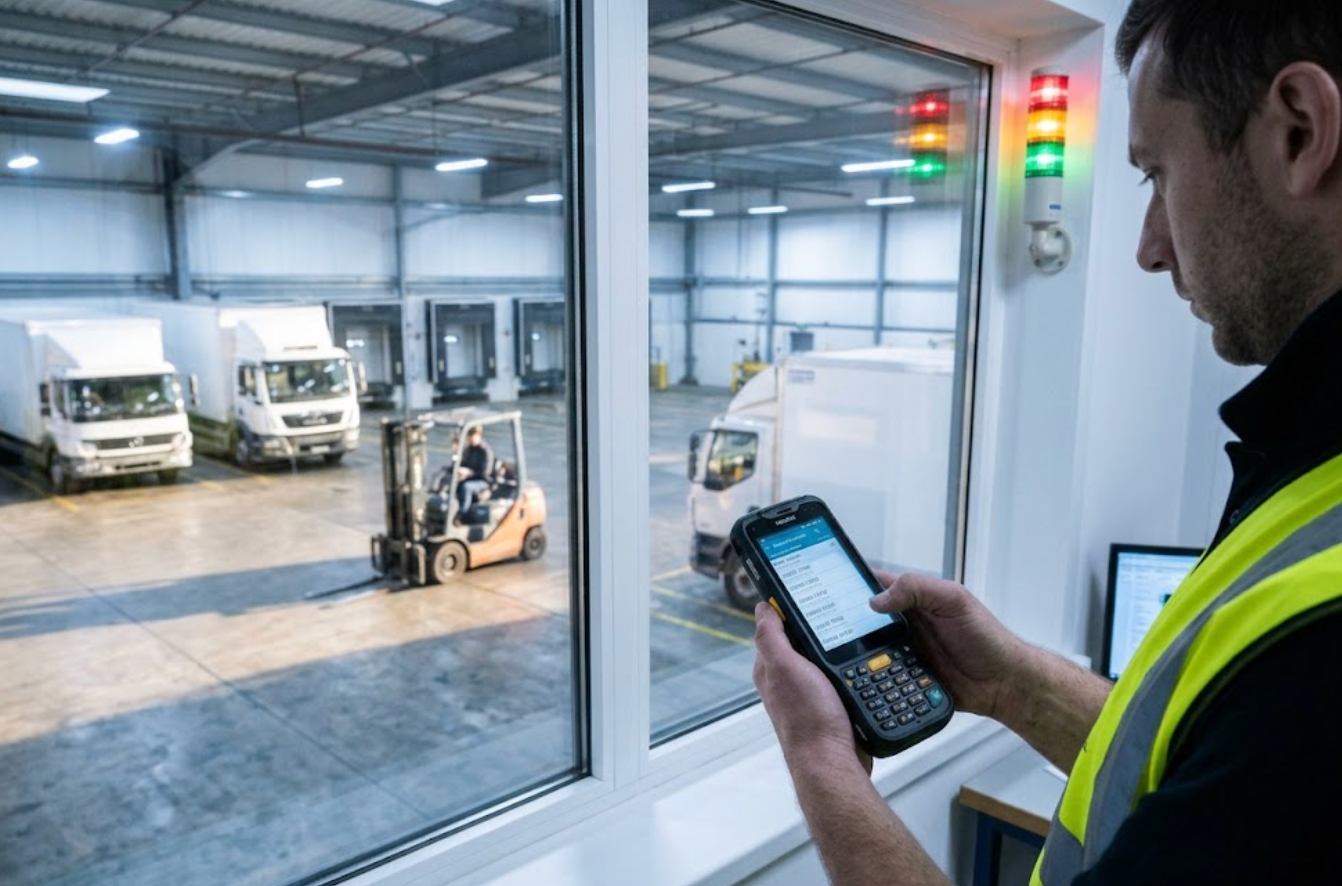

RS50 Runs the Wave Board at the Dock Office
The third seat is supervisory. Someone must watch the slot board against reality — which truck is on the pad, which window is bleeding into the next, which carrier needs a call before their next slot tomorrow — and that person needs a screen they can read at arm's length and a connection that never drops. The RS50 holds that post: a 6.3-inch FHD+ display makes the day's window list legible without zooming, 8 GB of memory runs the transport management dashboard beside a messaging app, and 5G keeps both live when the office Wi-Fi strains under peak-week phones.
Its radios also cover the yard itself. The RS50's independent BeiDou positioning with optional RTK precision places a supervisor's note on the actual pad where a trailer stopped, and the 48 MP camera documents a mis-parked trailer without walking to it. The 4800 mAh removable battery charges over USB Power Delivery, and the unit's IP67 rating with 1.2 m drop resistance survives the same concrete as the tailgate tools. Storage of 128 GB, expandable by microSD to 512 GB, holds a season of slot-board exports for the retrospective that planners run in the quiet week after the peak.
What the Slot Sheet Puts Side by Side
| Spec | X501 | K401 | RS50 |
|---|---|---|---|
| Display | 5.5" IPS, Gorilla Glass, glove and wet-hand touch | 4.2" IPS, 720x1280 | 6.3" IPS FHD+, 1080x2340 |
| Memory | 4GB+64GB, microSD to 256GB | 6GB+64GB | 8GB+128GB, microSD to 512GB |
| Camera | 13MP rear AF + 5MP front | 20MP rear + 5MP front | 48MP rear AF + 8MP front |
| Battery | 4500/5000mAh removable, hot swap | 5200mAh removable | 4800mAh removable, PD fast charge |
| Protection | IP67, 1.5m drop, about 270g | IP67, under 300g | IP67, 1.2m drop, under 500g |
| Network | 4G LTE, dual-band Wi-Fi | 4G LTE, dual-band Wi-Fi, NFC | 5G SA/NSA, dual-band Wi-Fi, BeiDou RTK optional |
Every figure above comes from the manufacturer's product pages for the three units. Where a specification differs between build variants — the X501 ships on Android 14 with a 12 variant documented, and carries a 4500 or 5000 mAh cell depending on configuration — the page itself lists both, and the plan does not depend on choosing between them. The slot sheet assigns roles, and each role is covered by the whole model family rather than by one exact configuration.
Booking Hardware Before the Peak Calendar Fills
The slot sheet's last column is hardware readiness, and it fills the same way the carrier slots do: in advance. Spare batteries are counted per crew shift rather than per device, so a three-window day with two crews needs six charged cells across the fleet, not one per unit. Devices are matched to windows in the plan document, not handed out by whoever arrives first at the charging cabinet. And the retrospective matters as much as the prep: after the peak, the dock office exports the actual versus planned window times, and the next season's sheet starts from measured truck-minutes instead of estimates.
